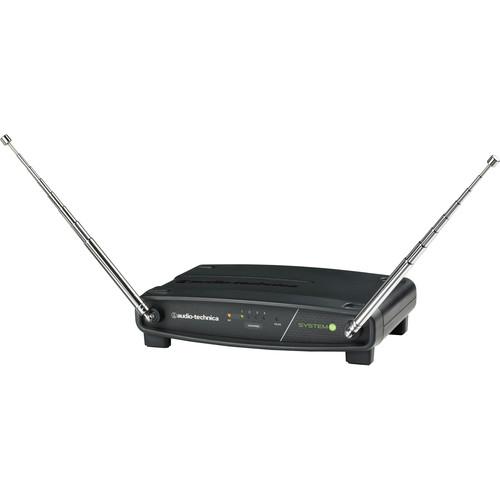

User Manual for Audio-Technica System 9 Frequency-Agile VHF Wireless System Receiver Click to enlarge the picture
Contents of the user manual for the Audio-Technica System 9 Frequency-Agile VHF Wireless
- Product category: Wireless Receivers Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Receivers
|
User manual for the Audio-Technica System 9 Frequency-Agile VHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The System 9 Frequency-Agile VHF Wireless System Receiver from Audio-Technica is a single-channel receiver, although it is a frequency agile system. This means that you can select any one of the four frequencies (169.505, 170.245, 171.045, and 171.905 MHz) and use up to four System 9 wireless systems at the same time, if each system is set to a different frequency. This receiver is designed to provide rock-solid performance and can be used when paired with a bodypack transmitter or a handheld transmitter and microphone (sold separately) for capturing audio in sound reinforcement applications. Furthermore, the receiver is equipped with an advanced dipole antenna for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900a offers volume control along with AF Peak, RF, and power indicator lights. - Easy operation and clear, natural sound quality
- 4 selectable frequency-coordinated VHF channels
- Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
- Reliable performance and durable construction
- Advanced dipole antenna system for extended operating range
In the Box Audio-Technica System 9 Frequency-Agile VHF Wireless System Receiver (169 to 172 MHz) Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica System 9 Frequency-Agile VHF Wireless System Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-R900A Specs | | | Type | VHF high band | | Operating Frequencies | 169.505, 170.245, 171.045, and 171.905 MHz | | Modulation Mode | FM | | Maximum Deviation | ±10 kHz | | Dynamic Range | ≥90 dB (A-weighted), typical | | Total Harmonic Distortion (THD) | <1% (at 1 kHz, ±10 kHz deviation) | | Operating Range | 200' / 60 m typical, open range environment with no interfering signals | | Operating Temperature Range | 40 to 110°F / 4 to 43°C, battery performance may be reduced at very low temperatures | | Frequency Response | 80 Hz to 13 kHz | | | | Receiving System | Non-diversity, single-channel, dual-antenna system | | Image Rejection | 50 dB minimum | | RF Sensitivity | 20 dBu V at 60 dB S/N ratio (50 Ohms termination) | | Audio Output | Nominal Output Level
Balanced XLR: 350 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load)
Unbalanced 1/4" (6.3 mm): 700 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load) | | Power Supply | 100 to 240 VAC (50/60 Hz) to 12 VDC (center positive) switched mode external power supply | | Dimensions (W x H x D) | 7.5 x 1.8 x 5.1" / 19.0 x 4.6 x 12.9 cm | | Weight | 12.0 oz / 340.2 g |
