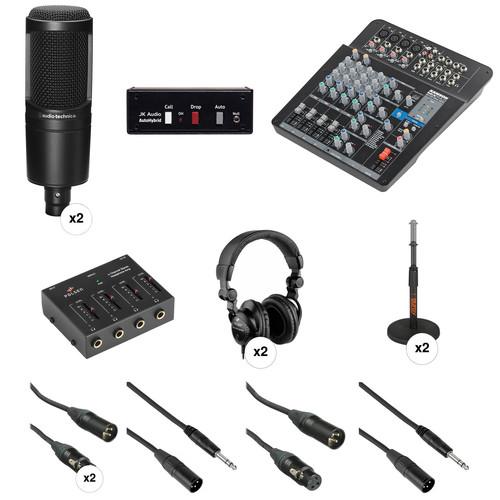

User Manual for Audio-Technica THE TWO PERSON Audio Podcast Kit with Land Line Call-In & Mixer Interface

• Product category: Large Diaphragm Condenser Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Large Diaphragm Condenser

Product description

• 2 x Audio-Technica AT2020 Cardioid Condenser Microphone The AT2020 Cardioid Condenser Microphone from Audio-Technica is designed for vocal and general instrument capturing in project and professional studio environments. The capsule features a low-mass, side-address diaphragm with a cardioid polar pattern for rejecting ambiance and noise at the off-axis sections of the microphone capsule. A linear frequency response of 20 Hz to 20 kHz enables the flexibility to accurately reproduce signals from a wide variety of sources. High SPL handling and wide dynamic range allow the AT2020 to capture loud signals with minimal noise and distortion. The microphone includes a pivoting, threaded stand mount for accurate positioning.
  • Suitable for project/home-studio applications
  • High SPL handling and wide dynamic range provide maximum versatility
  • Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone
  UPC: 042005134953
• Samson MIXPAD MXP124FX Analog Stereo Mixer with Effects and USB For blending sounds the MIXPAD MXP124FX Analog Stereo Mixer with Effects and USB by Samson is a good choice to get the job done. It can be used to deliver intuitive mixing and audio quality for small clubs, houses of worship, bars, restaurants and more. It features 100 24-bit, low noise digital effects, a Mix 2 output, Headphone monitoring with level control, RCA Tape out, and USB for recording your performances. Output flexibility makes the MXP124FX a worthy companion, regardless of venue size, giving you precise fader control, over your main mix.The MXP124 features 4 balanced Class A MDR (Maximum Dynamic Range) XLR mic preamps with 48V phantom power. Each channel is built with a 3-band EQ, gain trim, high pass filter and a pre-fader Aux send. In addition a compressor is available on 2 channel inputs. The MXP124FX features four Stacked-Stereo channels for increased input versatility and portability. A four segment LED for level metering in dark environments is provided for safe and efficient operation. Portable, easy to use and packed with many features that ensure optimal control over your performance, Samson's MXP124 represents a great choice for an affordable live mixer.
  • Call up one of the 100 built-in, low-noise digital effects presets to enhance your sound
  • Ultra-low noise, high headroom analog mixer
  • Four Class A, MDR (Maximum Dynamic Range) mic preamps with 3-band EQ and four Stacked-Stereo channels
  • Features 48-volt phantom power for condenser microphones
  • Two single-knob, studio-quality compressors on 2 channels
  • Good quality precision faders to control your mix
  • All mic channels are equipped with input gain and high pass filters
  • Tape inputs assignable to Main Mix or Mix 2/Phones outputs
  UPC: 809164016090
• JK Audio AutoHybrid - Telephone Audio Interface The JK Audio AutoHybrid is a simple passive telephone audio interface designed for IFB feeds, remote monitoring, conferencing, broadcast and studio recording applications. The AutoHybrid allows simultaneous send / receive audio flow through standard telephone lines. Balanced XLR input and output jacks allow noise free connection to pro audio recorders, mixers, amplifiers etc. When enabled, the Auto-Answer feature will automatically answer an incoming call on the first ring and then disconnect after the caller hangs up. Additional controls include Call Button, Drop Button and OH (Off-Hook) status indicator LED. The dual transformer hybrid circuit results in a 20dB reduction between the send audio level on the caller output and the transmit level. A detachable screw terminal block provides remote control access to all features.
  Telephone / Audio Interface
  • A complete interface between audio sources and analog phones and cell phones. Designed for telephone interviews, broadcast, IFB and more.
  Dual Hybrid Circuit
  • The dual transformer hybrid circuit results in a 20dB reduction between the send audio level on the caller output and the transmit level.
  Auto-Answer Function
  • The Auto-Answer feature will automatically answer an incoming call on the first ring and then disconnect after the caller hangs up.
  Call / Drop Function
  • Call and Drop buttons are provided and enable users to connect to the line for dialing out, or drop a call and hang up directly from the AutoHybrid.
  UPC: 814170010000
• Polsen HMA-41 4-Channel Stereo Headphone Amplifier The HMA-41 4-Channel Stereo Headphone Amplifier from Polsen features a durable, compact, and easy to use design for a variety of professional and project applications, including studio recording, band rehearsals, and more. It features a high-output level that allows for precise monitoring at high volume, while its low-noise circuitry ensures clear reproduction of your sound. Each of its four channels boasts independent volume control and amp circuitry, which allows for a wide frequency response of 20 Hz to 20 kHz for full-range stereo sound while assuring no signal loss when all 4 headphone outputs are used simultaneously.

  The unit features a 1/4" stereo TRS input, and four 1/4" TRS headphone outputs. To assure compatibility with a variety of headphones, Polsen includes four 1/8" to 1/4" adapters as well as a stereo mini cable that, when used with one of the included adapters, allows you to connect a device with a 1/8" output.
  • Durable, compact, and easy to use
  • High output level for precise monitoring at high volume
  • Low noise circuitry
  • Four headphone jacks each with independent volume control
  • Wide frequency response (20 Hz to 20 kHz) for full-range stereo sound
  • No loss of signal when all four headphones are connected
  • Includes 5 ft (1.5 m) stereo mini cable for connecting devices with 1/8" output (use included ¼" adapter)
  UPC: 847628577701
• 2 x Polsen HPC-A30 Closed-Back Studio Monitor Headphones The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488
• Pearstone PM Series 1/4" TRS M to XLR M Professional Interconnect Cable - 15' (4.6 m) The Pearstone PM Series 1/4" TRS M to XLR M Professional Interconnect Cable (15') is ideal for audio applications in which a device with an XLR input needs to be connected to a device with a balanced 1/4" output. Typical scenarios include connecting the output of a mixing board or audio interface to a powered speaker, or using an aux send to route signal to an outboard effects processor.

  The cable is equipped with 24-gauge oxygen-free copper conductors and spiral shielding to protect against EMI and RFI noise. The professional-grade cast-zinc Rean XLR connector is field serviceable and features silver-plated contacts, while the Rean 1/4" TRS connector features a molded design for maximum strain relief. The twin conductive PVC shield reduces electrostatic noise, and distinguishes the PM series as the best value in its class.
  • Professional quality, field-serviceable, cast-zinc Rean connectors with silver-plated contacts
  • Twin conductive PVC shield reduces electrostatic noise
  • 24-gauge oxygen-free copper conductors
  • Spiral shielding to protect against EMI and RFI noise
  UPC: 847628575004
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (15') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558281
• Pearstone PM Series 1/4" TRS M to XLR M Professional Interconnect Cable - 3' (0.91 m) The Pearstone PM Series 1/4" TRS M to XLR M Professional Interconnect Cable (3') is ideal for audio applications in which a device with an XLR input needs to be connected to a device with a balanced 1/4" output. Typical scenarios include connecting the output of a mixing board or audio interface to a powered speaker, or using an aux send to route signal to an outboard effects processor.

  The cable is equipped with 24-gauge oxygen-free copper conductors and spiral shielding to protect against EMI and RFI noise. The professional-grade cast-zinc Rean XLR connector is field serviceable and features silver-plated contacts, while the Rean 1/4" TRS connector features a molded design for maximum strain relief. The twin conductive PVC shield reduces electrostatic noise, and distinguishes the PM series as the best value in its class.
  • Professional quality, field-serviceable, cast-zinc Rean connectors with silver-plated contacts
  • Twin conductive PVC shield reduces electrostatic noise
  • 24-gauge oxygen-free copper conductors
  • Spiral shielding to protect against EMI and RFI noise
  UPC: 847628574779
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 3' (0.91 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (3') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558243
• 2 x Auray TT-6220 Telescoping Tabletop Microphone Stand (Black) The black TT-6220 Telescoping Tabletop Microphone Stand from Auray meets the needs of any desktop audio applications that require the use of a microphone by providing a solid, weighted round base with three nonslip rubber feet for additional stability. The telescoping shaft delivers flexibility when it comes to positioning the height of the microphone and includes a microphone cable guide. Durable steel construction ensures longevity.
  • Telescoping shaft for adjustable height
  • Weighted round base
  • Three nonslip rubber feet
  • Microphone cable guide
  • Durable steel construction
  UPC: 847628578234
• 2 x Auray PFSS-55 Pop Filter with Gooseneck The Auray PFSS-55 Pop Filter with Gooseneck features double-layered nylon to greatly reduce noise from aspirated plosives like "p" and "b" sounds. The PFSS-55's double-layered nylon filter gently disperses the explosive rush of air from speaking and breathing, while protecting your microphone from corrosive moisture. The flexible gooseneck makes it easy to position the filter exactly where you need it, the spring-loaded clamp provides fast and easy mounting and the locking bolt holds the PFSS-55 firmly into place. These features make the PFSS-55 Pop Filter ideal for desktops and also compatible with microphone stands. UPC: 847628569249

• 2 x AT2020 Cardioid Condenser Microphone swtcybdrtsafbz
• Stand Mount for 5/8"- 27 Threaded Stands
• 5/8"-27 to 3/8"-16 Threaded Adapter
• Protective Pouch
• Limited 1-Year Warranty

• Samson - MIXPAD MXP124FX Analog Stereo Mixer with Effects and USB

• JK Audio - AutoHybrid - Telephone Audio Interface

• Polsen - HMA-41 4-Channel Stereo Headphone Amplifier

• 2 x Polsen - HPC-A30 Closed-Back Studio Monitor Headphones

• Pearstone - PM Series 1/4" TRS M to XLR M Professional Interconnect Cable - 15' (4.6 m)

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

• Pearstone - PM Series 1/4" TRS M to XLR M Professional Interconnect Cable - 3' (0.91 m)

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 3' (0.91 m), Black

• 2 x Auray - TT-6220 Telescoping Tabletop Microphone Stand (Black)

• 2 x Auray - PFSS-55 Pop Filter with Gooseneck

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Audio-Technica AT2020 Cardioid Condenser Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	74 dB
  Equivalent Noise Level	20 dB
  Maximum SPL	144 dB SPL
  THD	1%
  Impedance	100 Ohms
  Sensitivity	14.1 mV/Pa
  Dynamic Range	124 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2.0 µA
  Operating Voltage	48 V
  Length	6.38" / 162.0 mm
  Diameter	2.05" / 52.0 mm
  Weight	12.17 oz / 345 g

  Box Dimensions (LxWxH)	9.7 x 9.6 x 2.8"

• Samson MIXPAD MXP124FX Analog Stereo Mixer with Effects and USB

  Frequency Response	Trim @ Min, Unity Gain ± 3 dB: Mic to Main: 20 Hz to 30 kHz Line to Main: 20 Hz to 30 kHz Aux Return to Main: 20 Hz to 30 kHz Line to Aux Send: 20 Hz to 30 kHz
  Total Harmonic Distortion (THD)	Trim @ Min, +4 dBu Output, Unity Gain, 1kHz w/30 kHz LPF: Mic/Line to Main (Mono Ch): <0.03% Line to Main (Stereo Ch): <0.03% Line to Aux Send: <0.03%
  Equivalent Noise	Input A filter on, Input Shorted: Mic Trim @ Min, Fader set to 0: < 90 dB 20 Hz to 30 kHz A-weighted Line Trim @ Min, Fader set to 0: < 90 dB 20 Hz to 30 kHz A-weighted
  Maximum Voltage Gain	Mic to Main: 63dB Line to Main (Mono Ch): 39 dB Line/Tape to Main (Stereo Ch): 26 dB Mic to Aux Send: 63 dB Line to Aux Send (Stereo Ch): 29 dB
  Residual Noise	Main (All Fader Min): -105 dBu A-weighted Aux Send (All Fader Min): -94 dBu A-weighted
  Cross Talk	@ 1 kHz w/30 kHz LPF: Ch vs Ch (Trim @ min, fader set 0 >75 dB A-weighted Input vs Output: >60 dB A-weighted
  Meter Peak Indication	Mic (Mono Ch): + 16 dBu Line (Stereo Ch) +16 dBu Headphone Output 600Ω load: +16 dBu
  Maximum Input Level	1 kHz, ± 3 dB: Mic Input Mono: +16 dBu Line Input Mono: +40 dBu
  Input Channels	Equalizer (± 3 dB)
  Mic/Line Inputs	4x balanced XLR mic 4x stereo line 1/4" (6.3 mm) 1x stereo pair unbalanced RCA (tape L, R)
  Outputs	2x Master: 1/4" (6.3 mm) (L, R) 2x Mix 2: 1/4" (6.3 mm) (L, R) 1x Headphones: 1/4" (6.3 mm) Tape: 1x pair RCA (stereo) (L, R)
  EQ Section	3 band
  Channel Level Control	Faders on channel 1 to 4 Master Fader
  Trim/Gain Control	Channels 1 to 4
  Phantom Power	48 V ± 3 V
  Power Requirement	AC18 V 1000 mA
  Power Consumption	<18 W
  USB	Bus Power: USB 2.0 +5 VDC 0.5 A Max USB A-type female
  Metering	LED
  Internal Digital Effects	100 presets
  Dimensions (W x D x H)	12.9 x 11.7 x 3" (32.7 x 29.8 x 75 cm)
  Weight	5.0 lb (2.3 kg)

  Box Dimensions (LxWxH)	18.2 x 13.1 x 6.0"

• JK Audio AutoHybrid - Telephone Audio Interface

  Input	Transmit XLR: Balanced Female XLR, 800 ohms, 500mV RMS (+4dBv max) Insertion Loss: 9dB Send XLR to Phone Line
  Output	Receive XLR: Balanced Male XLR, 600 ohms, 200mV RMS (-15 dBm nom) Off-Hook LED Line Connector (From Phone Line): RJ11C 1500 VAC Isolation 0.8B REN
  Handset	Not Provided
  Isolation	1500 VAC
  Phone Line	Phone Connector (To Handset): RJ11C 1500 VAC Isolation 0.8B REN
  Impedance	Transmit XLR: 800 ohms Receive XLR: 600 ohms
  Power Requirements	Passive
  Dimensions	4 x 5 x 1.5" (10.5 x 13 x 4 cm)

  Box Dimensions (LxWxH)	6.8 x 5.4 x 2.3"

• Polsen HMA-41 4-Channel Stereo Headphone Amplifier

  Channels	4
  Frequency Response	20 Hz to 20 kHz
  Input Connections	1x 1/4" (6.3 mm) TRS master input
  Output Connectors	4x 1/4" (6.3 mm) TRS headphone outputs
  Maximum Input Level	+14 dBV
  Maximum Output Level	20 dB per channel
  Input Impedance	100 kΩ, unbalanced
  Output Impedance	51 Ω, per output
  Signal to Noise Ratio	>90 dB
  THD	<0.008%
  Power	12 V DC, 150 mA
  Dimensions (L x W x D)	3.9 x 3.2 x 1.2" (100 x 80 x 30 mm)
  Weight	9.6 oz (272 g)

  Box Dimensions (LxWxH)	7.4 x 3.7 x 2.5"

• 2 x Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"

• Pearstone PM Series 1/4" TRS M to XLR M Professional Interconnect Cable - 15' (4.6 m)

  Cable Type	3-Pin XLR balanced to 1/4" TRS interconnect cable
  Length	15' (4.6 m)
  Shielding	Copper spiral shield
  Gauge	24 AWG
  Contacts	Silver plated
  Connector 1	XLR Male
  Connector 2	1/4" TRS Male

  Box Dimensions (LxWxH)	6.7 x 3.8 x 0.7"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	15' / 4.6 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.8 x 2.9 x 1.3"

• Pearstone PM Series 1/4" TRS M to XLR M Professional Interconnect Cable - 3' (0.91 m)

  Cable Type	3-Pin XLR balanced to 1/4" TRS interconnect cable
  Length	3' (0.91 m)
  Shielding	Copper spiral shield
  Gauge	24 AWG
  Contacts	Silver plated
  Connector 1	XLR Male
  Connector 2	1/4" TRS Male

  Box Dimensions (LxWxH)	5.3 x 5.3 x 1.0"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 3' (0.91 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	3' / 0.9 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.4 x 5.7 x 1.1"

• 2 x Auray TT-6220 Telescoping Tabletop Microphone Stand (Black)

  Height	8.3 to 13.5" / 21 to 34.3 cm
  Base Type	Round
  Base Dimensions	6.2 x 6.2" / 15.7 x 15.7 cm

  Mounting Thread	5/8"-27
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	7.05 x 7.05 x 1.9"

• 2 x Auray PFSS-55 Pop Filter with Gooseneck

  Box Dimensions (LxWxH)	14.3 x 6.8 x 2.3"
