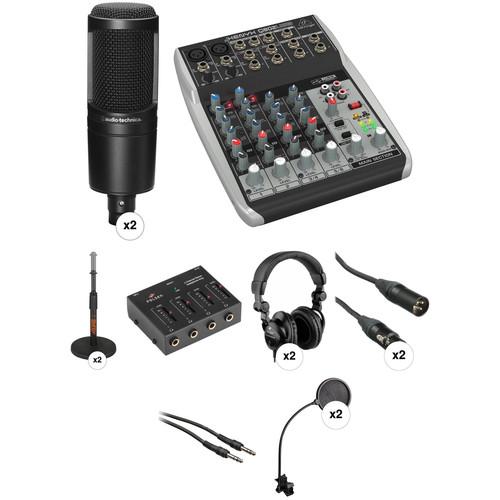

Audio-Technica Two Person Podcasting Package

User Manual for Audio-Technica Two Person Podcasting Package

• Product category: Large Diaphragm Condenser Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Large Diaphragm Condenser

Product description

• 2 x Audio-Technica AT2020 Cardioid Condenser Microphone The AT2020 Cardioid Condenser Microphone from Audio-Technica is designed for vocal and general instrument capturing in project and professional studio environments. The capsule features a low-mass, side-address diaphragm with a cardioid polar pattern for rejecting ambiance and noise at the off-axis sections of the microphone capsule. A linear frequency response of 20 Hz to 20 kHz enables the flexibility to accurately reproduce signals from a wide variety of sources. High SPL handling and wide dynamic range allow the AT2020 to capture loud signals with minimal noise and distortion. The microphone includes a pivoting, threaded stand mount for accurate positioning.
  • Suitable for project/home-studio applications
  • High SPL handling and wide dynamic range provide maximum versatility
  • Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone
  UPC: 042005134953
• Behringer XENYX Q802USB Premium 8-Input 2-Bus Mixer The Behringer XENYX Q802USB Premium 8-Input 2-Bus Mixer is versatile, feature packed and ideal for small project recording, rehearsals, podcasts and more. There are 8 inputs with 2 mono channels and 2 stereo channels.A total of two proprietary XENYX mic preamps feature 130 dB of dynamic range with a bandwidth that extends from below 10 Hz to 200 kHz. Both mono channels feature a built-in, one-knob compressor for quick dynamics control in live sound and recording situations.There are 3-band EQs on all mono channels. In addition to all this, the XENYX Q802USB features a 2-input / 2-output USB audio interface for direct recording to software. Audacity recording software, as well as 150 instrument and effects plug-ins are available for free download. The Behringer XENYX Q802USB includes a power supply and a USB cable.
  • • Premium, ultra-low noise, high headroom analog mixer
    • Two high-quality, XENYX mic preamps comparable to standalone boutique preamps
    • Studio-grade compressors with super-easy one-knob functionality and control LED for professional vocal and instrumental sound
    • Built-in stereo USB/Audio Interface to connect directly to your computer. Free audio recording, editing, and podcasting software plus 150 instrument/effect plug-ins downloadable at behringer.com
    • Neo-classic British 3-band EQs for warm and musical sound
    • One post fader FX send per channel for external FX devices
    • One stereo aux return for FX applications or as separate stereo input
    • Main mix outputs plus separate control room, headphones, and 2 track outputs
    • 2 track inputs assignable to main mix or control room/phones outputs
  UPC: 794504548013
• 2 x Auray TT-6220 Telescoping Tabletop Microphone Stand (Black) The black TT-6220 Telescoping Tabletop Microphone Stand from Auray meets the needs of any desktop audio applications that require the use of a microphone by providing a solid, weighted round base with three nonslip rubber feet for additional stability. The telescoping shaft delivers flexibility when it comes to positioning the height of the microphone and includes a microphone cable guide. Durable steel construction ensures longevity.
  • Telescoping shaft for adjustable height
  • Weighted round base
  • Three nonslip rubber feet
  • Microphone cable guide
  • Durable steel construction
  UPC: 847628578234
• Polsen HMA-41 4-Channel Stereo Headphone Amplifier The HMA-41 4-Channel Stereo Headphone Amplifier from Polsen features a durable, compact, and easy to use design for a variety of professional and project applications, including studio recording, band rehearsals, and more. It features a high-output level that allows for precise monitoring at high volume, while its low-noise circuitry ensures clear reproduction of your sound. Each of its four channels boasts independent volume control and amp circuitry, which allows for a wide frequency response of 20 Hz to 20 kHz for full-range stereo sound while assuring no signal loss when all 4 headphone outputs are used simultaneously.

  The unit features a 1/4" stereo TRS input, and four 1/4" TRS headphone outputs. To assure compatibility with a variety of headphones, Polsen includes four 1/8" to 1/4" adapters as well as a stereo mini cable that, when used with one of the included adapters, allows you to connect a device with a 1/8" output.
  • Durable, compact, and easy to use
  • High output level for precise monitoring at high volume
  • Low noise circuitry
  • Four headphone jacks each with independent volume control
  • Wide frequency response (20 Hz to 20 kHz) for full-range stereo sound
  • No loss of signal when all four headphones are connected
  • Includes 5 ft (1.5 m) stereo mini cable for connecting devices with 1/8" output (use included ¼" adapter)
  UPC: 847628577701
• 2 x Polsen HPC-A30 Closed-Back Studio Monitor Headphones The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (15') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558281
• Comprehensive 1/4" Phone Male TRS to 1/4" Phone Male TRS Stereo Cable - 6' Comprehensive Standard Series Audio Cables cables provide value while still providing quality and reliability. Standard Series cables are designed to ensure good sound quality at a price to fit your budget. Standard Series cables are high-quality molded cables with Comprehensive flexibility and dependability. Standard Series cables are covered under Comprehensive's limited lifetime warranty. UPC: 808447002348
• 2 x Auray PFSS-55 Pop Filter with Gooseneck The Auray PFSS-55 Pop Filter with Gooseneck features double-layered nylon to greatly reduce noise from aspirated plosives like "p" and "b" sounds. The PFSS-55's double-layered nylon filter gently disperses the explosive rush of air from speaking and breathing, while protecting your microphone from corrosive moisture. The flexible gooseneck makes it easy to position the filter exactly where you need it, the spring-loaded clamp provides fast and easy mounting and the locking bolt holds the PFSS-55 firmly into place. These features make the PFSS-55 Pop Filter ideal for desktops and also compatible with microphone stands. UPC: 847628569249

• 2 x AT2020 Cardioid Condenser Microphone rxxtvcxqzx
• Stand Mount for 5/8"- 27 Threaded Stands
• 5/8"-27 to 3/8"-16 Threaded Adapter
• Protective Pouch
• Limited 1-Year Warranty

• Behringer - XENYX Q802USB Premium 8-Input 2-Bus Mixer

• 2 x Auray - TT-6220 Telescoping Tabletop Microphone Stand (Black)

• Polsen - HMA-41 4-Channel Stereo Headphone Amplifier

• 2 x Polsen - HPC-A30 Closed-Back Studio Monitor Headphones

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black rxxtvcxqzx

• Comprehensive - 1/4" Phone Male TRS to 1/4" Phone Male TRS Stereo Cable - 6'

• 2 x Auray - PFSS-55 Pop Filter with Gooseneck

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Audio-Technica AT2020 Cardioid Condenser Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	74 dB
  Equivalent Noise Level	20 dB
  Maximum SPL	144 dB SPL
  THD	1%
  Impedance	100 Ohms
  Sensitivity	14.1 mV/Pa
  Dynamic Range	124 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2.0 µA
  Operating Voltage	48 V
  Length	6.38" / 162.0 mm
  Diameter	2.05" / 52.0 mm
  Weight	12.17 oz / 345 g

  Box Dimensions (LxWxH)	9.7 x 9.6 x 2.8"

• Behringer XENYX Q802USB Premium 8-Input 2-Bus Mixer

  Total # Of Inputs	Total: 8 Mono: 2 Stereo: 2
  USB	2-in / 2-out
  Mix / Effect Buses	1 mix bus 1 effect bus
  Mic Preamps	XENYX Mic Preamps: 2
  Phantom Power	+48 V
  EQ Section	Mono Channel: 3-band Stereo Channel: 3-band
  Compressor	2
  AUX Sends	1
  AUX Returns	FX Returns: 1 stereo
  Metering	4 segment LEDs
  Weight	2.3 lb / 1.05 kg

  Box Dimensions (LxWxH)	14.0 x 12.2 x 4.2"

• 2 x Auray TT-6220 Telescoping Tabletop Microphone Stand (Black)

  Height	8.3 to 13.5" / 21 to 34.3 cm
  Base Type	Round
  Base Dimensions	6.2 x 6.2" / 15.7 x 15.7 cm

  Mounting Thread	5/8"-27
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	7.05 x 7.05 x 1.9"

• Polsen HMA-41 4-Channel Stereo Headphone Amplifier

  Channels	4
  Frequency Response	20 Hz to 20 kHz
  Input Connections	1x 1/4" (6.3 mm) TRS master input
  Output Connectors	4x 1/4" (6.3 mm) TRS headphone outputs
  Maximum Input Level	+14 dBV
  Maximum Output Level	20 dB per channel
  Input Impedance	100 kΩ, unbalanced
  Output Impedance	51 Ω, per output
  Signal to Noise Ratio	>90 dB
  THD	<0.008%
  Power	12 V DC, 150 mA
  Dimensions (L x W x D)	3.9 x 3.2 x 1.2" (100 x 80 x 30 mm)
  Weight	9.6 oz (272 g)

  Box Dimensions (LxWxH)	7.4 x 3.7 x 2.5"

• 2 x Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	15' / 4.6 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.8 x 2.9 x 1.3"

• Comprehensive 1/4" Phone Male TRS to 1/4" Phone Male TRS Stereo Cable - 6'

  Connector 1	1 x 1/4" TRS Male Straight
  Connector 2	1 x 1/4" TRS Male Straight
  Cable Length	6' / 1.8 m
  Wire Gauge	24 AWG

  Box Dimensions (LxWxH)	5.6 x 3.4 x 0.3"

• 2 x Auray PFSS-55 Pop Filter with Gooseneck

  Box Dimensions (LxWxH)	14.3 x 6.8 x 2.3"
