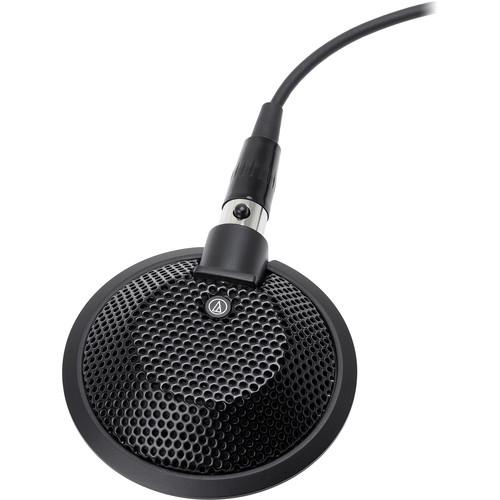

User Manual for Audio-Technica U841R Omnidirectional Condenser Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica U841R Omnidirectional Condenser Boundary Microphone
- Product category: Boundary Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Boundary Microphones
|
User manual for the Audio-Technica U841R Omnidirectional Condenser Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica U841R is an omnidirectional condenser boundary microphone designed to provide intelligible reproduction of speech and minimum visibility for surface-mount configurations in conferencing, interviews, theater, and more. By utilizing UniGuard technology, the microphone delivers enhanced rejection of RFI from sources such as lighting and wireless devices.The omnidirectional polar pattern and condenser element yield a frequency response of 40 Hz to 20 kHz. Silicone foam pads on the bottom of the mic reduce the transfer of vibration. It features a space-saving TA3M output connector. The supplied 25’ TA3F to XLR male cable allows you to easily connect it to a mixer or mic preamp. The U841R can be operated on 11 to 52V phantom power. It ships with a protective pouch for safe transport. - Designed for surface-mount applications such as sound reinforcement, conferencing, interviews, and television sound
- Small-diameter omnidirectional capsule near boundary eliminates phase distortion and delivers clear, high-output performance
- Effective off-axis rejection for maximum gain before feedback
- UniGuard RFI-shielding technology offers enhanced rejection of radio frequency interference
- Self-contained electronics eliminate the need for an external power module
- Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
- Low-profile design with low-reflectance finish for minimum visibility
- Operates on phantom power
UPC: 042005194124 In the Box Audio-Technica U841R Omnidirectional Condenser Boundary Microphone 25' TA3 Female to XLR Male Cable Protective Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica U841R Omnidirectional Condenser Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica U841R Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Tube | No | | Polar Pattern | Omnidirectional | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 69 dB | | Maximum SPL | 130 dB SPL | | Pad | None | | Impedance | 200 Ohms | | Sensitivity | 17.7 mV/Pa | | Low-Cut Filter | None | | Dynamic Range | 105 dB | | | | Output Connectors | 1 x TA3M | | Cable Length | 25' / 7.62 m | | Operating Voltage | 11 to 52 V | | Dimensions (W x H x D) | 2.6 x 0.6" / 65.0 x 15.1 mm | | Weight | 2.96 oz / 84 g | | | | Package Weight | 0.845 lb | | Box Dimensions (LxWxH) | 9.9 x 5.35 x 2.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
