User Manual for Audio-Technica U851A Cardioid Condenser Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica U851A Cardioid Condenser Boundary Microphone
- Product category: Boundary Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Boundary Microphones
 |
User manual for the Audio-Technica U851A Cardioid Condenser Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

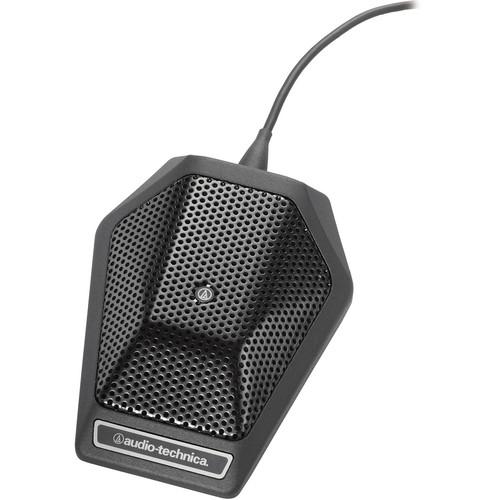

Product description The U851A from Audio-Technica is a boundary microphone for surface-mount applications. It operates in a cardioid/half-cardioid polar pattern, though its condenser-element is switchable. Offering a frequency range of 30 Hz to 20 kHz, this microphone works with an AA battery as well as phantom power, and boasts an SPL of 123 dB to 133 dB depending on the method of power used. - Key Features
-
- Designed for surface-mount applications such as sound reinforcement, conferencing, television sound, and more

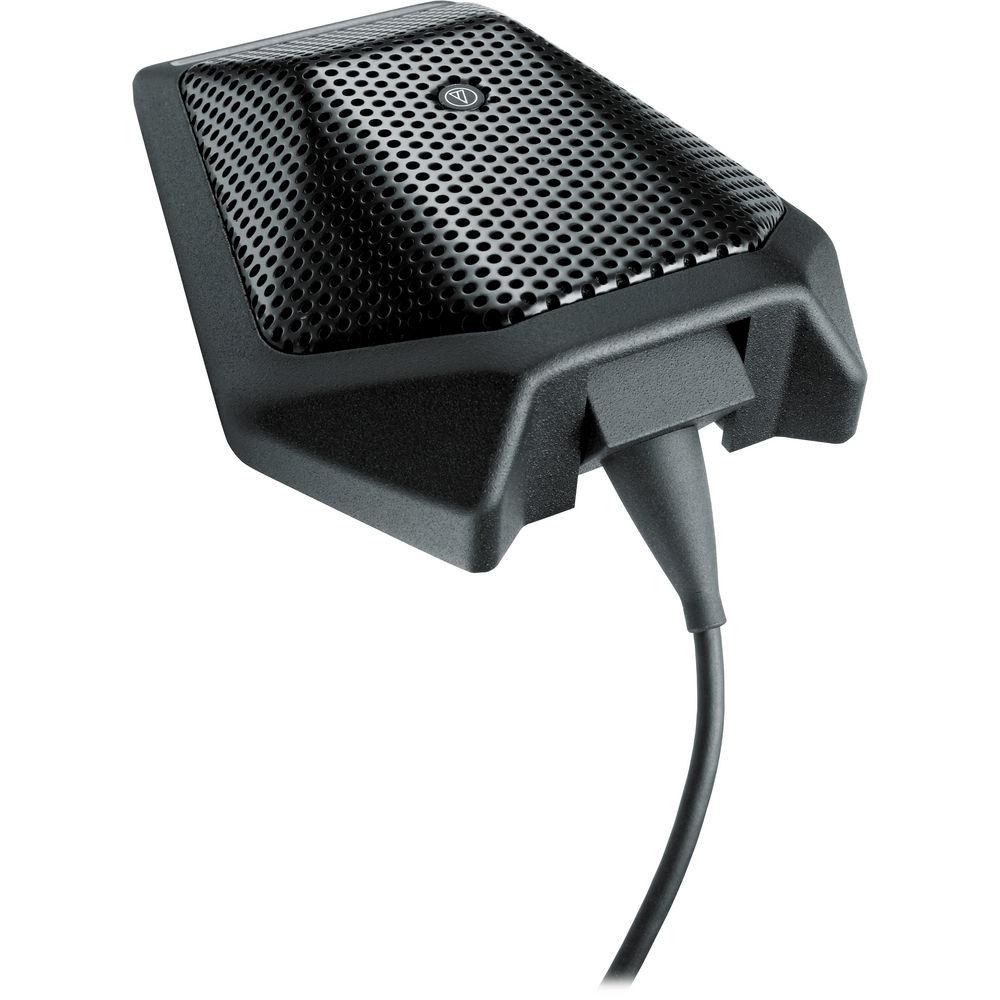

- Rotating output connector allows XLR cable to exit from the back or the bottom of the microphone, depending on your preference
- Off-axis rejection for maximum gain before microphone feedback
- Rejection of RFI (radio frequency interference) through UniGuard technology
- Small-diameter capsule near boundary for eliminating phase-distortion whilst delivering a high-output signal
- Steep low-frequency attenuation for increased sonic response without affecting vocal quality
- Durable casing
- Non-slip silicone foam pads minimize coupling and other problems due to surface-to-surface microphone vibration
- Operates on battery or phantom power

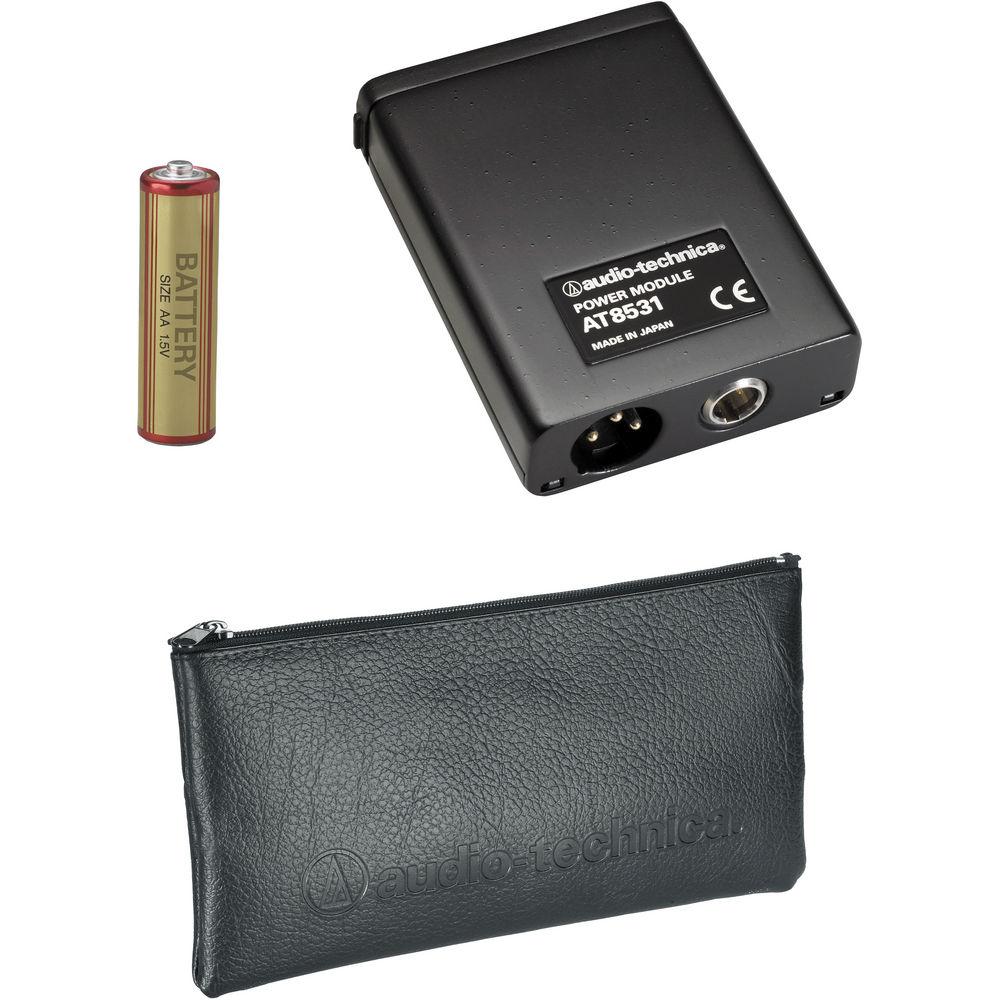

UPC: 042005139132 In the Box Audio-Technica U851A Cardioid Condenser Boundary Microphone - AT8531 Power Supply
- Battery
- Soft Protective Pouch
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica U851A Cardioid Condenser Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica U851A Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 72 dB A-Weighted | | Maximum SPL | 133 dB SPL | | THD | 1% | | Impedance | 270 Ohms | | Sensitivity | 8.9 mV/Pa | | Low-Cut Filter | 18 dB/Octave @ 80 Hz | | Dynamic Range | 111 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Battery Type | 1 x AA | | Operating Current Consumption | 2 mA | | Operating Voltage | 11 to 52 V | | Length | 4.25" / 10.79 cm | | Weight | 8.6 oz / 244 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 10.0 x 5.3 x 2.8" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
