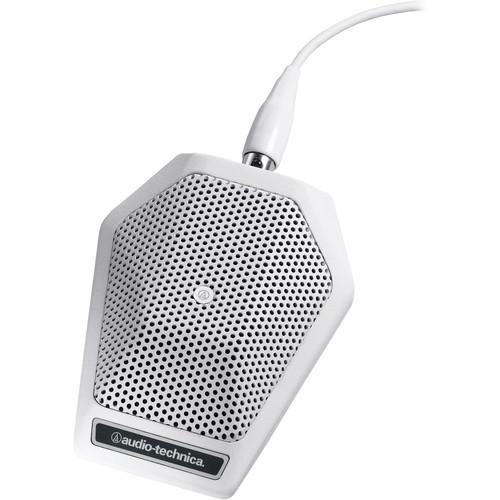

User Manual for Audio-Technica U851RW Cardioid Condenser Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica U851RW Cardioid Condenser Boundary Microphone
- Product category: Boundary Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Boundary Microphones
 |
User manual for the Audio-Technica U851RW Cardioid Condenser Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description Styled in a white finish, the U851RW from Audio-Technica is a condenser boundary microphone operating in a cardioid polar pattern. It's capable of picking up frequencies between 30 Hz and 20 kHz, though the microphone does offer an 80 Hz high-pass/low-cut filter. This is useful for mitigating frequencies which often interfere with the vocal range in conversational situations. That low-cut filter, coupled with the mic's dynamic range of 108 dB and low-profile design, render the U851RW more than suitable for capturing audio in conference rooms, boardrooms, classrooms, stage performances, podiums, houses-of-worship and other situations. - Key Features
-

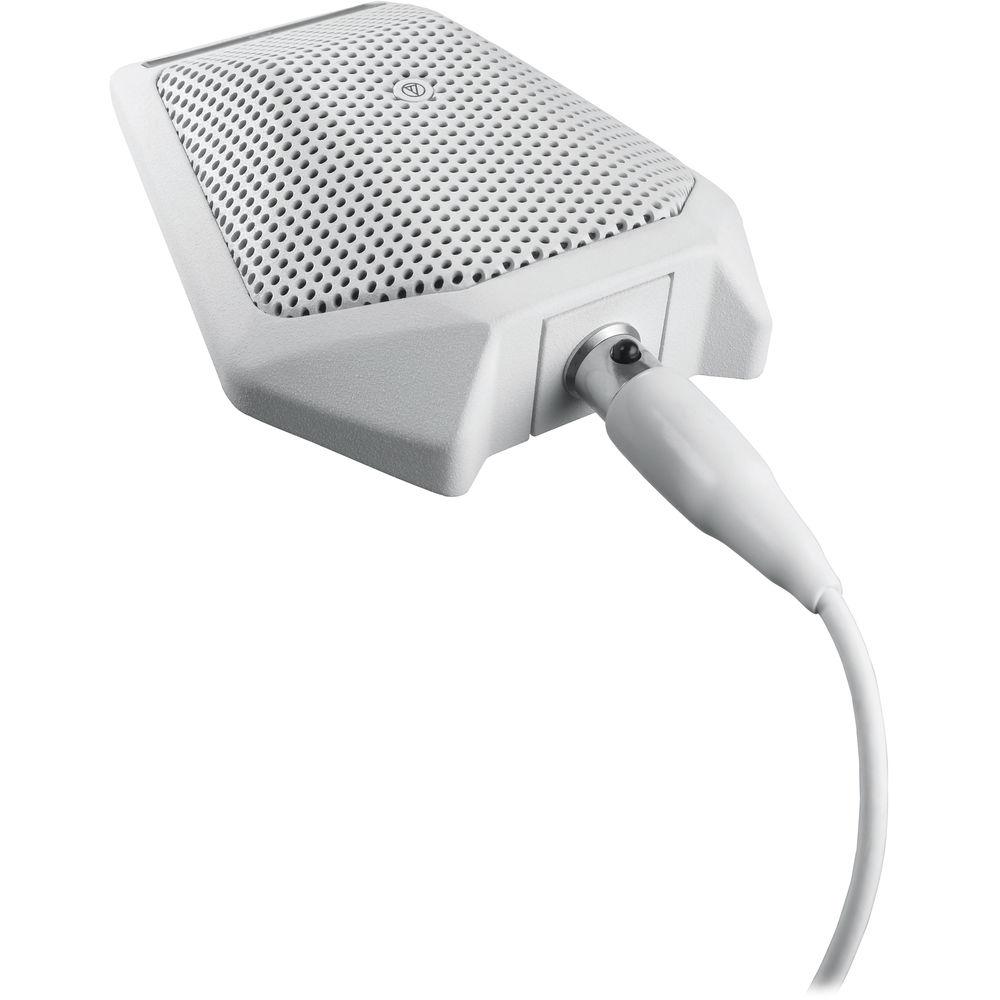

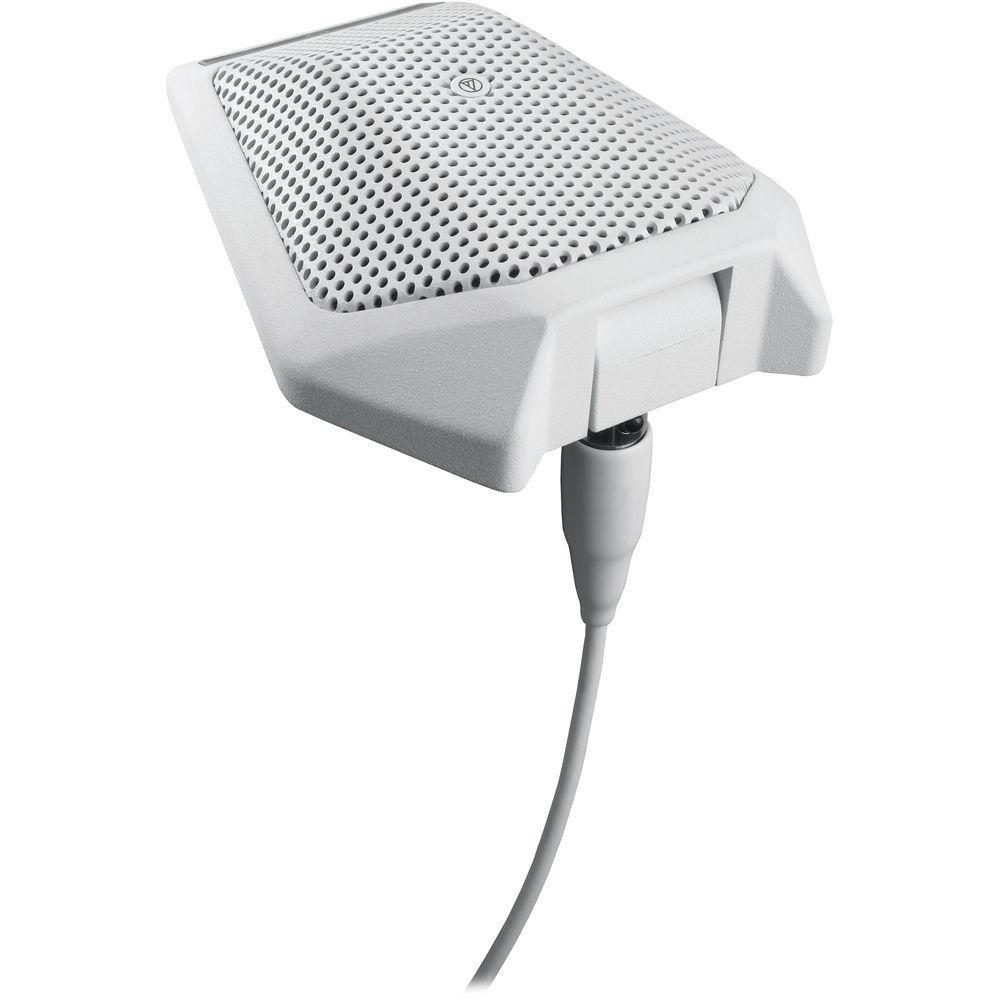

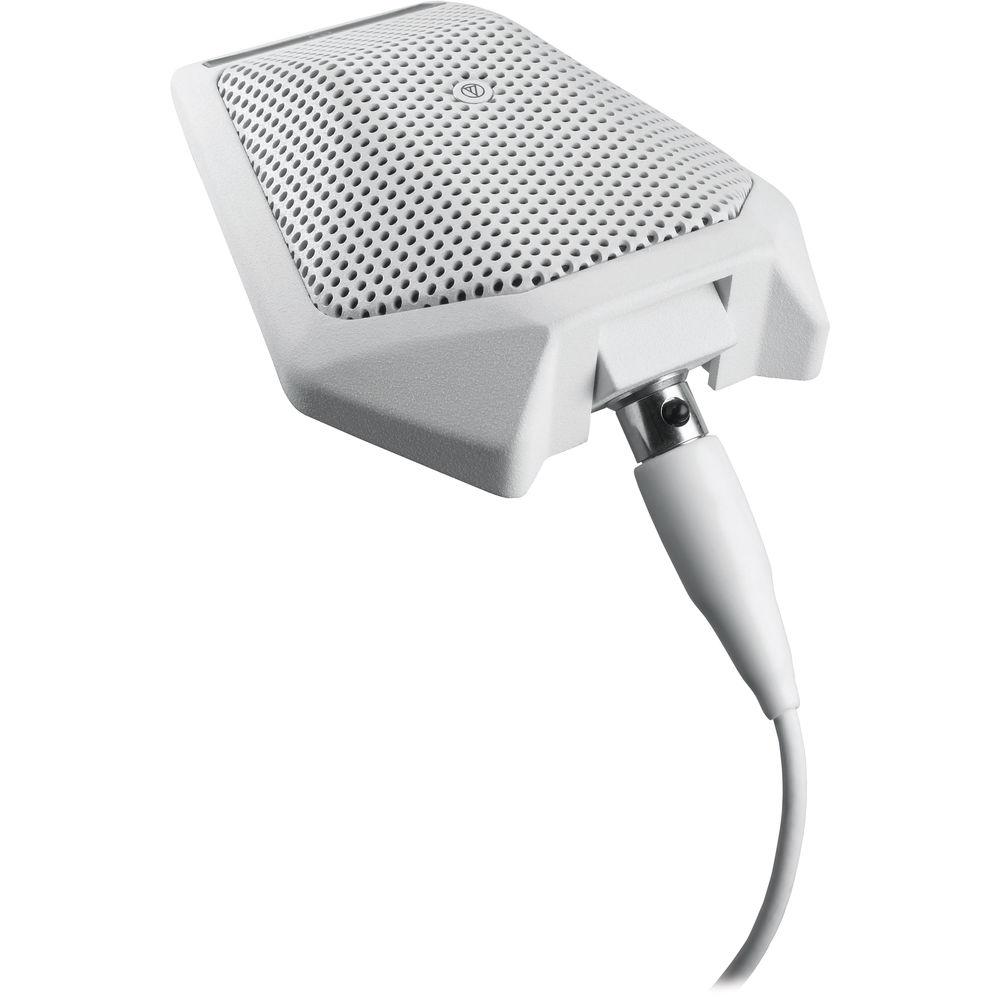

- Rotating output connector allows cable to exit from either the back or bottom of the microphone, depending on your preference
- Polar pattern's off-axis rejection allows for high levels of gain before microphone feedback
- UniGuard technology offers RFI (radio frequency interference) rejection, thus rendering a cleaner signal path
- Small-diameter capsule mitigates phase distortion even at high volume
- Durable casing
- Non-slip silicone foam-bottom pads reduces coupling and other sonic problems resulting from surface-to-surface contact between microphone and mounting area
- Low-profile white design for minimum visibility, maximum camouflage

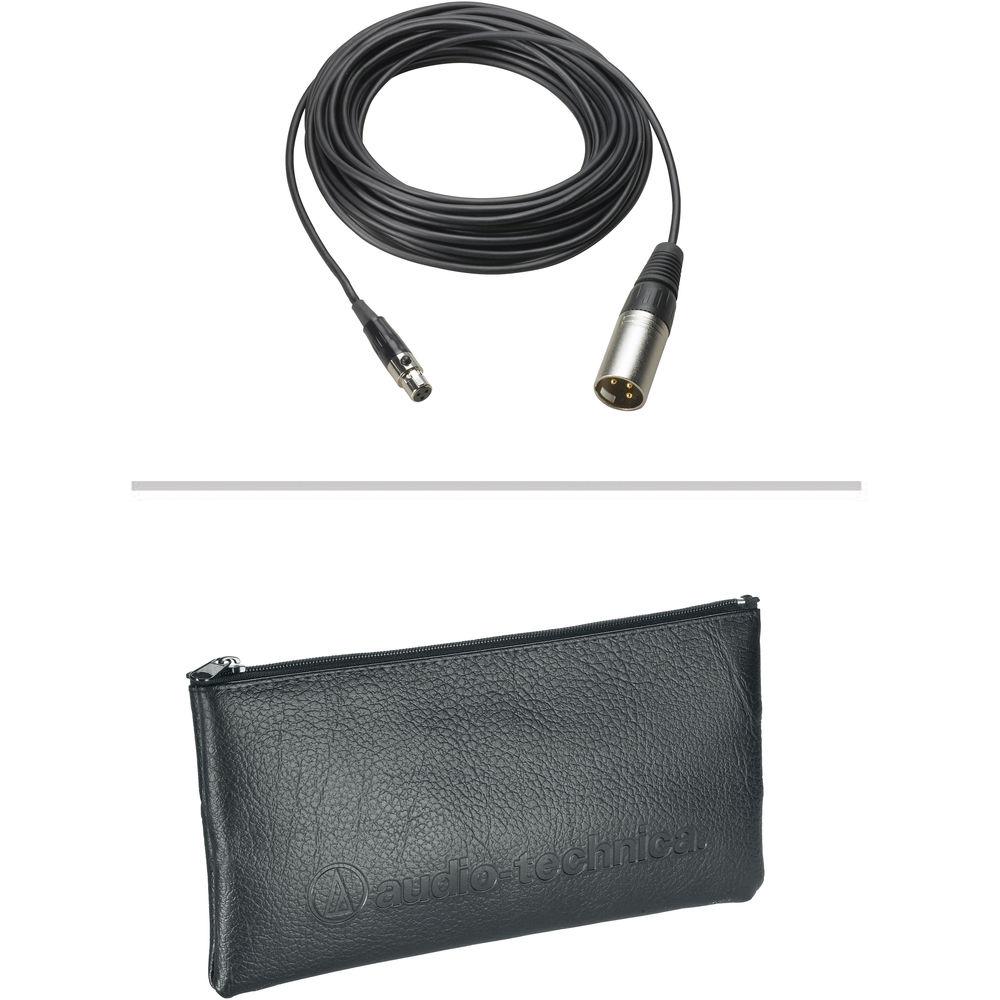

UPC: 042005139156 In the Box Audio-Technica U851RW Cardioid Condenser Boundary Microphone (White) - Soft Protective Pouch
- 25' Cable with TA3F & XLRM-Type Connectors
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica U851RW Cardioid Condenser Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica U851R Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 68 dB A-Weighted | | Maximum SPL | 134 dB SPL | | Impedance | 200 Ohms | | Low-Cut Filter | 18 dB/Octave @ 80 Hz | | Dynamic Range | 108 dB | | | | Output Connectors | 1 x TB3M | | Cable Length | 25' / 7.62 m | | Operating Current Consumption | 4 mA | | Operating Voltage | 11 to 52 V | | Length | 4.25" / 10.79 cm | | Weight | 9.2 oz / 261 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.6 x 5.0 x 2.8" |
