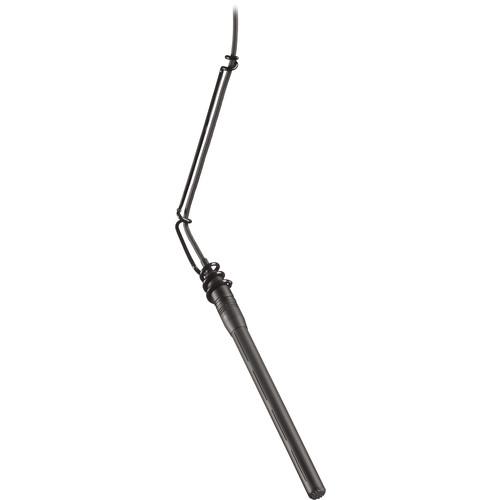

User Manual for Audio-Technica U853AUPM UniPoint Series UniLine Cardioid Condenser Hanging Microphone with AT8534 Wall Ceiling Plate Power Module Click to enlarge the picture
Contents of the user manual for the Audio-Technica U853AUPM UniPoint Series UniLine Cardioid
- Product category: Hanging Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Hanging Microphones
|
User manual for the Audio-Technica U853AUPM UniPoint Series UniLine Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description From the Audio-Technica UniPoint Series, the U853AU Hanging Microphone is designed for accurate signal reproduction in theaters, houses-of-worship, conference halls, boardrooms, schools, professional recording applications and more. The U853AU features a flexible steel hanger that grips the suspended cable and capsule, enabling easy microphone placement without excess hardware.The U853AU features Audio-Technica's UniLine cardioid capsule. The UniLine cardioid capsule features a tight 90 degree acceptance angle, virtually eliminating audio signal outside of the pick up pattern. The result is a focused pattern that accurately reproduces audio signal in noisy environments.A low frequency roll-off switch eliminates rumble and noise associated with room ambiance, acoustics, wind, proximity effect, etc. The U853AU's rich audio quality, detailed signal reproduction, small profile and flexibility make it an excellent choice for capturing choirs, theatrical performances, lectures, sermons, etc. - Wall/Ceiling Plate Power Module
- This package includes the AT8534 wall/ceiling mount and phantom power supply. Designed to mount into a standard U.S. single gang electrical box, the module provides a TB3-M input for connection to the microphone and screw terminal outputs for wiring an XLR output cable to the P.A. system.
- UniLine Cardioid Capsule
- The included UniLine cardioid capsule provides a focused pick up pattern with a 90 degree acceptance angle. The focused pick up eliminates unwanted noise outside of the pattern.
- Flexible Steel Suspension Hanger
- The steel hanger wraps around the ceiling suspended cable and capsule. The flexible design enables flexible positioning and placement.
- Interchangeable Capsules
- The UniPoint series features interchangeable capsules. A cardioid capsule is included although hyper-cardioid, omni-directional and cardioid capsules are available as options.
- UniSteep Filter
- Switchable low-frequency roll-off filter eliminates low-frequency residual noise at 80Hz.
- RFI Shielding
- UniGuard RFI-shielding protects the microphone against noise caused by radio-frequency interference in the area.
UPC: 042005140725 In the Box Audio-Technica U853AUPM UniPoint Series UniLine Cardioid Condenser Hanging Microphone with AT8534 Wall/Ceiling Plate Power Module (Black) AT8154 Two-Stage Foam Windscreen AT8451 Steel Hanger AT8534 Wall/Ceiling Mount & Power Module AT8438 5/8"-27 Stand Adapter AA Alkaline Battery 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica U853AUPM UniPoint Series UniLine Cardioid Condenser Hanging Microphone with AT8534 Wall Ceiling Plate Power Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica U853PMU Specs | Transducer | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | Line Cardioid | | Frequency Response | 30-20,000 Hz | | Dynamic Range (Typical) | Phantom: 110 dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | 74 dB, 1 kHz at 1 Pa | | Maximum Input Sound Level | Phantom: 130 dB, 1 kHz at 1% T.H.D. | | Power Requirements | Phantom: 11-52V DC, 2 mA typical | | Output Impedance | Phantom: 200 ohms | | Output Connectors | Integral 3-pin XLRM-type (Power Module) | | Pad | No | | Low Frequency Roll-Off | 80 Hz, 18 dB/octave | | Dimensions | Microphone: 6.14 x .48" (156 x 12.2mm) (Length x Diameter)
AT8534 Power Module: 2.80 x 4.55 x 1.42" (71 x 115.5 x 36mm)(HxWxD) Cable: 25' (7.6m) | | Weight | Microphone: 1.1 oz (30 g)
Power Module: 3.4 oz (97 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.6 x 5.0 x 2.8" |
