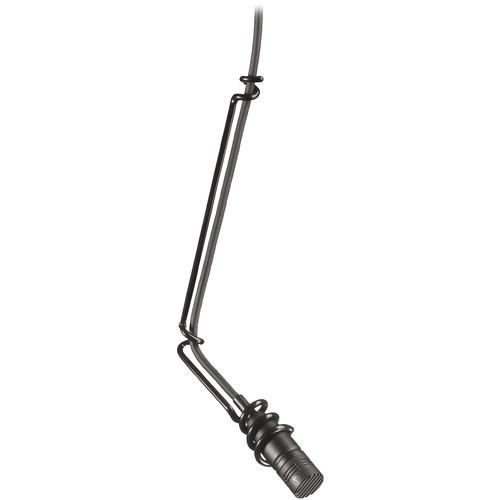

Product description From the Audio-Technica UniPoint Series, the U853 Hanging Microphone is designed for accurate signal reproduction in theaters, houses-of-worship, conference halls, boardrooms, schools, professional recording applications and more. The U853 features a flexible steel hanger that grips the suspended cable and capsule, enabling easy microphone placement without excess hardware.The U853's capsule features a wide frequency response and highly sensitive cardioid capsule. The cardioid pick up pattern provides a focused pick up area by minimizing noise and ambiance at the off-axis sections of the microphone. The result is a focused pick up without residual room noise and feedback. The wide, linear frequency response ensures transparent, accurate reproduction of both vocals and instruments.A low frequency roll-off switch eliminates rumble and noise associated with room ambiance, acoustics, wind, proximity effect, etc. The U853's rich audio quality, detailed signal reproduction, small profile and flexibility make it an excellent choice for capturing choirs, theatrical performances, lectures, sermons, etc. - Wall/Ceiling Plate Power Module
- This package includes the AT8534 wall/ceiling mount and phantom power supply. Designed to mount into a standard U.S. single gang electrical box, the module provides a TB3-M input for connection to the microphone and screw terminal outputs for wiring an XLR output cable to the P.A. system.

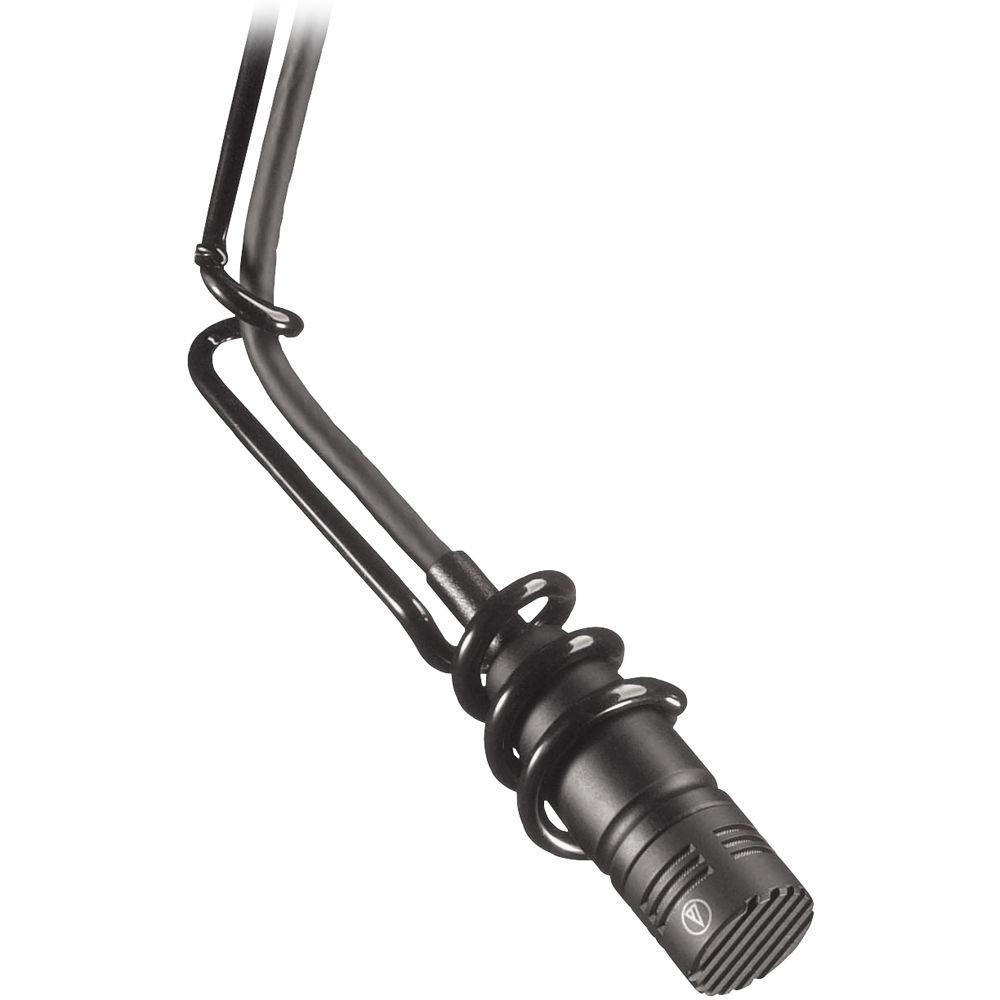

- Flexible Steel Suspension Hanger
- The steel hanger wraps around the ceiling suspended cable and capsule. The flexible design enables flexible positioning and placement.
- Interchangeable Capsules
- The UniPoint series features interchangeable capsules. A cardioid capsule is included although hyper-cardioid, omni-directional and UniLine capsules are available as options.
- Cardioid Polar Pattern
- The included cardioid capsule provides a focused pick up pattern while minimizing noise and ambiance that can cause feedback.
- UniSteep Filter
- Switchable low-frequency roll-off filter eliminates low-frequency residual noise at 80Hz.
- RFI Shielding
- UniGuard RFI-shielding protects the microphone against noise caused by radio-frequency interference in the area.

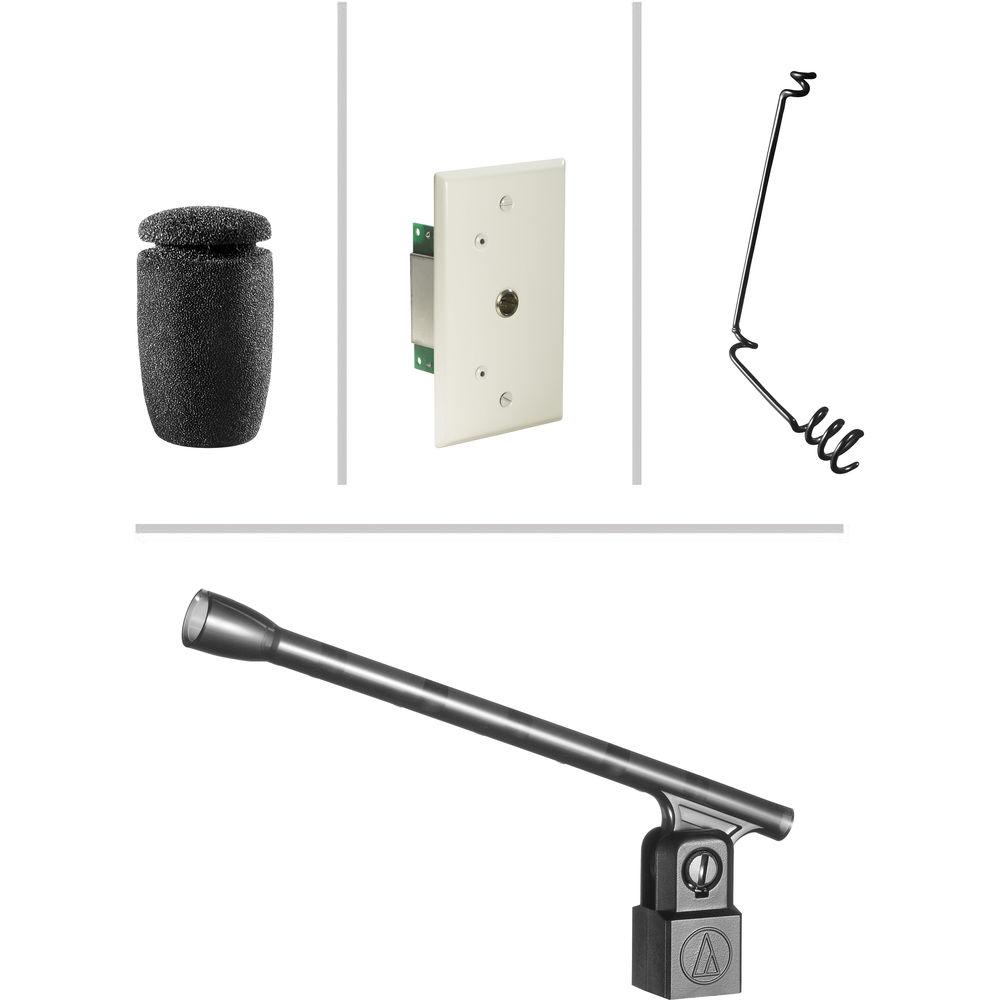

UPC: 042005140718 In the Box Audio-Technica U853PM UniPoint Series Cardioid Condenser Hanging Microphone with AT8534 Wall/Ceiling Plate Power Module (Black) AT8153 Two-Stage Foam Windscreen AT8451 Steel Hanger AT8534 Wall/Ceiling Mount & Power Module AT8438 5/8"-27 Stand Adapter AA Alkaline Battery 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica U853PM UniPoint Series Cardioid Condenser Hanging Microphone with AT8534 Wall Ceiling Plate Power Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica U853PM Specs | Transducer | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | Cardioid | | Frequency Response | 30Hz to 20kHz | | Dynamic Range (Typical) | Phantom: 109 dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa | | Maximum Input Sound Level | Phantom: 133 dB, 1 kHz at 1% T.H.D. | | Power Requirements | Phantom: 11-52V DC, 2 mA typical | | Output Impedance | Phantom: 200 ohms | | Output Connectors | Integral 3-pin XLRM-type (Power Module) | | Pad | No | | Low Frequency Roll-Off | 80 Hz, 18 dB/octave | | Dimensions | Microphone: 1.34 x .48" (Length x Diameter)
AT8534 Power Module: 2.80 x 4.55 x 1.42" (71 x 115.5 x 36mm) (WxHxD) Cable Length: 25' (7.6m) | | Weight | Microphone: 0.5 oz (14 g)
Power Module: 3.4 oz (97 g) | | | | Package Weight | 0.88 lb | | Box Dimensions (LxWxH) | 9.9 x 5.1 x 2.9" |
