User Manual for Audio-Technica U859QL UniPoint Series Cardioid Quick-Mount Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica U859QL UniPoint Series Cardioid Quick-Mount
- Product category: Gooseneck Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Gooseneck Microphones
 |
User manual for the Audio-Technica U859QL UniPoint Series Cardioid Quick-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

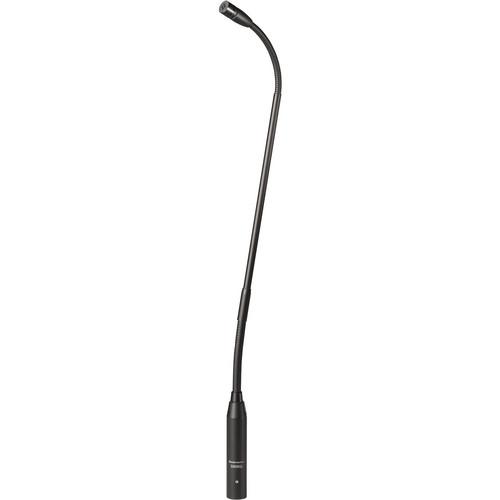

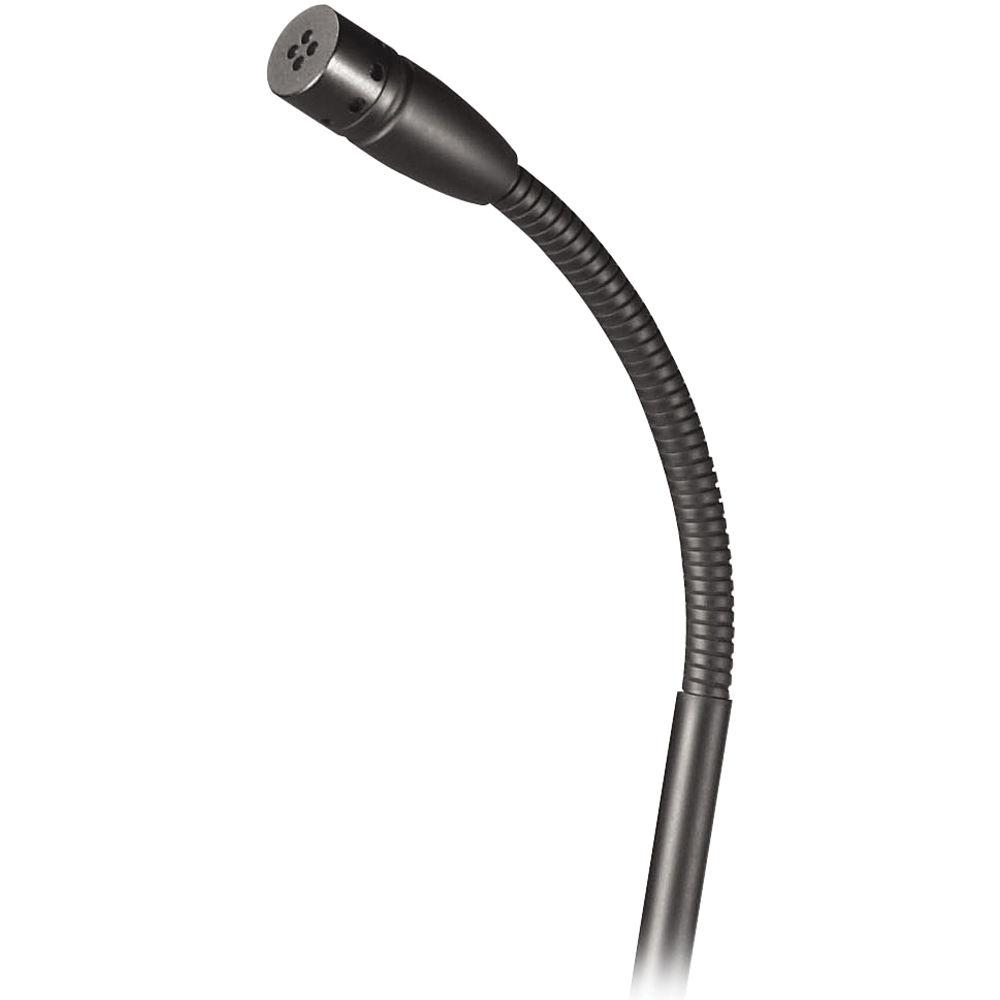

Product description The Audio-Technica U859QL is a flexible gooseneck microphone designed for outstanding performance in schools, houses-of-worship, boardrooms, government facilities, etc. The microphone capsule features a cardioid polar pattern for superb rejection of off-axis noise and ambiance.The contoured frequency response of the U859QL is specifically optimized for enhanced intelligibility of speech. The ultra flexible gooseneck enables flexible positioning while resisting inadvertent repositioning. The U859QL features a standard 3-pin XLR male output connection, enabling easy mounting into a standard XLR female input. Optional interchangeable capsules provide cardioid, hyper-cardioid, omni-directional and UniLine cardioid polar patterns for added flexibility. - Quick Mount Connection
- The U859QL conveniently features a standard XLR male output connector at the base. This enables quick mounting to XLR female microphone inputs directly on mixers, preamplifier's, installed flanges, etc.
- Optimized Frequency Response
- The contoured frequency response accentuates the frequencies associated with speech for enhanced intelligibility.
- UniGuard Shielding
- UniGuard shielding provides exceptional rejection of radio-frequency interference.
- UniSteep Filter
- Low frequency noise and proximity effect is reduced as a result of UniSteep filtering.
- Interchangeable Elements
- Cardioid, hyper-cardioid and omni-directional capsules are available as options and provide added flexibility.

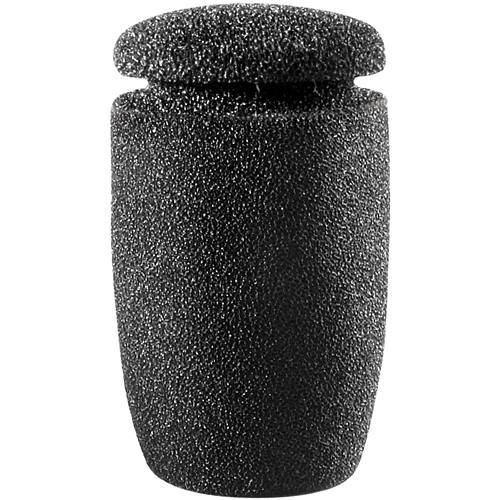

UPC: 042005140855 In the Box Audio-Technica U859QL UniPoint Series Cardioid Quick-Mount Gooseneck Microphone (18") AT8153 Two-Stage Foam Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica U859QL UniPoint Series Cardioid Quick-Mount Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica U859QL Specs | Transducer | Fixed-charge back plate permanently polarized condenser | | Polar Pattern | Cardioid | | Frequency Response | 80 Hz, 18 dB/octave | | Dynamic Range (Typical) | 111 dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa | | Maximum Input Sound Level | 140 dB SPL, 1 kHz at 1% T.H.D. | | Power Requirements | 11-52V DC, 2 mA typical | | Output Impedance | 250 ohms | | Output Connectors | Integral 3-pin XLRM-type | | Pad | No | | Low Frequency Roll-Off | Yes, 80 Hz, 18 dB/octave | | Dimensions | 18.90 x .48" (480 x 12.3mm) (Length x Diameter) | | Weight | 5.4 oz (152 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 19.3 x 5.1 x 2.9" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
