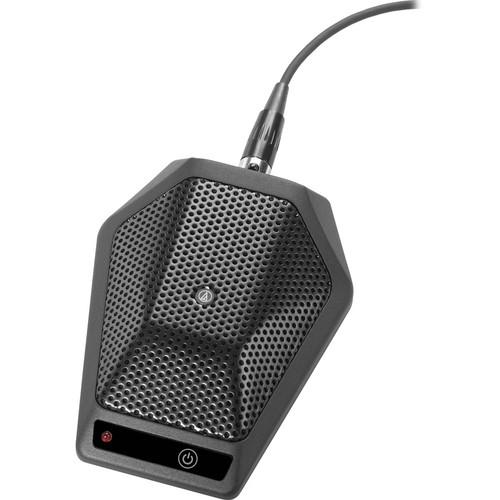

User Manual for Audio-Technica U891RCx UniPoint Condenser Boundary Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica U891RCx UniPoint Condenser Boundary Microphone
- Product category: Boundary Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Boundary Microphones
|
User manual for the Audio-Technica U891RCx UniPoint Condenser Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The U891RCx from Audio-Technica is a flexible boundary microphone designed to accurately capture audio in conference hall, boardroom and classroom installations. The U891RCx features a half-cardioid pick up pattern, providing a generous pick up area at the surface and perimeter while eliminating structure noise and reflections off the desktop surface. The polar pattern and even frequency response results in detailed signal reproduction, regardless of the relationship between the talker and microphone positions.A programmable membrane switch can be used to remotely control external devices such as video cameras, recorders, etc. Remote outputs are provided in addition to audio outputs. In addition to remote control, the membrane switch can be programmed for one of three internal functions. Push On / Push Off, Push to Mute and Push to Talk modes are all programmable by the user and add to the flexibility of the U891RCx. In addition to the outstanding sonic character, the U891RCx features a heavy die-cast case and silicon foam bottom pads that minimize vibration and surface noise. A low frequency roll-off switch eliminates proximity effect noise, low frequency hum, ambiance noise and wind noise. A pivoting output connector reveals a TA5-male connection and enables flexible surface installation. A 25' TA5-female to pigtail (unterminated) cable is supplied. - Designed for surface-mount applications such as high-quality sound reinforcement, conferencing, distance learning and other demanding sound pickup situations
- An activation switch can be set to any of three operating modes: "touch-on/touch-off," "touch-to-talk" and "touch-to-mute"
- External contact closure capability permits control of remote devices from microphone switch
- External LED control allows for accurate depiction of the live status of the microphone
- PivotPoint rotating output connector allows cable to exit from either the rear or the bottom of the microphone
- Small-diameter UniPoint capsule near boundary eliminates phase distortion and delivers clear, high-output performance
- UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
- Low-profile design with low-reflectance black finish for minimum visibility
UPC: 042005165889 In the Box Audio-Technica U891RCx UniPoint Condenser Boundary Microphone Protective Pouch 25' Unterminated TA5-female to Pigtail Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica U891RCx UniPoint Condenser Boundary Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica U891RCX Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 68 dB | | Maximum SPL | 130 dB SPL | | Impedance | 200 Ohms | | Sensitivity | 19.9 mV/Pa | | Low-Cut Filter | 18 dB/Octave @ 80 Hz | | Dynamic Range | 104 dB | | | | Output Connectors | 1 x TB5M | | Operating Current Consumption | 4 mA | | Operating Voltage | 11 to 52 V | | Length | 4.25" / 10.79 cm | | Weight | 9.4 oz / 266 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.0 x 5.1 x 2.8" |
