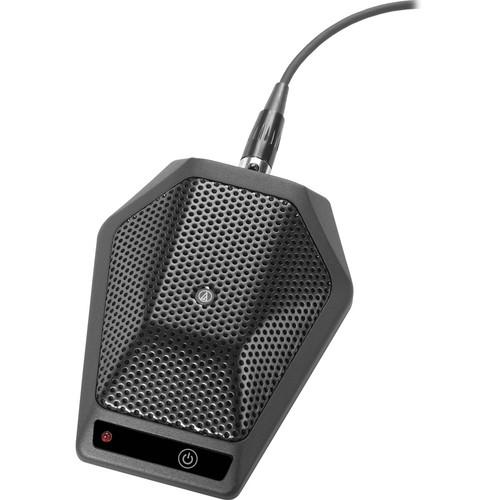

User Manual for Audio-Technica U891Rx Cardioid Condenser Boundary Microphone with Switch Click to enlarge the picture
Contents of the user manual for the Audio-Technica U891Rx Cardioid Condenser Boundary Microphone
- Product category: Boundary Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Boundary Microphones
|
User manual for the Audio-Technica U891Rx Cardioid Condenser Boundary Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The U891Rx from Audio-Technica is a black cardioid condenser boundary microphone designed to deliver high output with low phase distortion in surface-mount configurations for conferencing, live sound, theater, and studio recording. It features a cardioid polar pattern above the mounting surface, providing 120 degrees of acceptance. The small-diameter capsule yields minimal phase distortion and a frequency response of 30 Hz to 20 kHz. UniGuard RFI shielding reduces radio frequency interference, and a selectable 80 Hz low-cut filter lessens rumble.The multi-mode activation switch can be set for one of three functions, Touch On/Off (latching), Touch-to-Talk (momentary on), or Touch-to-Mute (momentary off). The microphone’s heavy die-cast case has silicon foam bottom pads that decrease the transfer of vibration and surface noise. The TB3M output with a PivotPoint rotating connector allows the cable to exit from either the rear or the bottom of the mic. A 25' TB3-female to standard XLR male cable is supplied.The U891Rx requires 11 to 52V phantom power. -
- Cardioid polar pattern provides 120 degrees of acceptance (cardioid above mounting surface)
- Optional interchangeable elements (available separately) offer omnidirectional and hypercardioid polar patterns
- 30 Hz to 20 kHz frequency response
- Selectable 18 dB per octave, 80 Hz low-cut filter
- Requires 11 to 52V phantom power
- TB3M output with PivotPoint rotating connector allows cable to exit from either the rear or the bottom of the microphone
- Ideal for surface-mount applications such as sound reinforcement, conferencing, and studio recording
- Multi-mode activation switch can be set to any of three operating modes: Touch On/Off (latching), Touch-to-Talk (momentary on), and Touch-to-Mute (momentary off)
- Small-diameter UniPoint capsule minimizes phase distortion
- UniGuard RFI shielding reduces radio frequency interference
- Die-cast case
- Low-profile design with low-reflectance finish
- Silicon foam bottom pads minimize the transfer of surface vibrations
- Includes 25' (7.6m) 2-conductor, shielded cable with TA3F and XLRM connectors
- Includes protective pouch
UPC: 042005165865 In the Box Audio-Technica U891Rx Cardioid Condenser Boundary Microphone with Switch (Black) Protective Pouch 25' TA3F to XLR-M Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica U891Rx Cardioid Condenser Boundary Microphone with Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica U891Rx Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid Cardioid in hemisphere above mounting surface | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 68 dB | | Maximum SPL | Cardioid: 130 dB SPL | | Pad | None | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | Cardioid: -34 dB | | Low-Cut Filter | 18 dB/Octave @ 80 Hz | | Dynamic Range | Cardioid: 104 dB | | | | Output Connectors | 1 x TB3M | | Cable Length | 25' / 7.62 m | | Operating Current Consumption | 4 mA | | Operating Voltage | 11 to 52 V | | Length | 4.25" / 107.95 mm Width: 3.31" / 84 mm
Height: 0.91" / 23 mm | | Weight | 9.3 oz / 264 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 2.6" |
