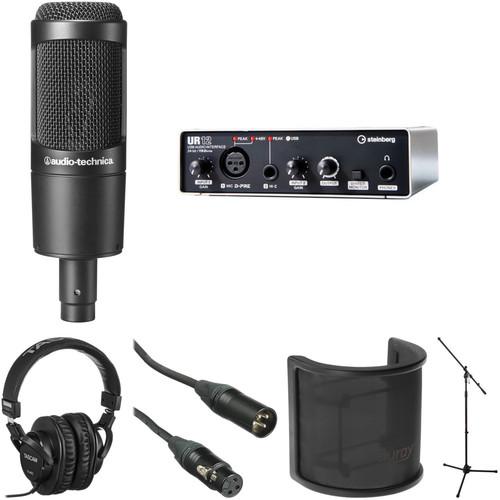

Audio-Technica Voice Actor Starter Kit

User Manual for Audio-Technica Voice Actor Starter Kit

• Product category: Large Diaphragm Condenser Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Large Diaphragm Condenser

Product description

• Audio-Technica AT2035 Cardioid Condenser Microphone The AT2035 Cardioid Condenser Microphone from Audio-Technica features a side-address design and can be used in critical home, project, or professional studio applications as well as live performances. The microphone offers a cardioid polar pattern for minimal feedback and off-axis noise. The element and output stage combine to produce a smooth yet natural audio quality with low noise. There is an 80 Hz high-pass filter switch for eliminating low frequency hum and other associated noises, and a -10 dB pad switch provides more headroom when capturing transient signals that may otherwise cause peak distortion. The microphone also includes a shock mount, a threaded adapter, and a protective pouch.
  • Large diaphragm for smooth, natural sound and low noise
  • High SPL handling and wide dynamic range provide unmatched versatility
  • Custom shock mount provides superior isolation
  • Switchable 80 Hz high-pass filter and 10 dB pad
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Includes custom shock mount and protective pouch
  UPC: 042005156733
• Steinberg UR12 - USB Audio Interface The UR12 from Steinberg is a two input/two output USB audio interface featuring a single D-PRE microphone preamp with phantom power, housed in a compact and rugged chassis. The 24-bit/192 kHz capable converters provide excellent detail and dynamics, and the unit is compatible with most major audio related software. Cubase AI software for recording, composing, editing and mixing is included.

  When connected to Apple's iPad (requires optional accessories), the interface provides a portable and intuitive production system. While this application requires an external power supply to function, the 5 VDC input can also be used to provide power stability in other situations. Latency-free hardware monitoring and a loopback function for Internet streaming make this compact interface an attractive choice where large channel counts are not needed.
  • Two input, two output USB 2.0 class compliant audio interface
  • Single D-PRE microphone preamp
  • Up to 192 kHz sampling rates and 24-bit resolution
  • Latency-free hardware monitoring with an easy-to-use monitor source switch
  • Loopback function allows for streaming performances live to the Internet, with incoming audio signals merged to the playback signal from Cubase or other DAWs inside the computer
  • Connectivity with Apple's iPad using Steinberg's Cubasis music app or other iOS audio apps offers a portable production environment
  • Power port and source selector for connecting a 5 VDC power source for supplying power when the interface is connected to an iPad (requires optional Apple iPad Camera Connection Kit/Lightning to USB Camera Adapter, and an external 5 VDC adapter or an external battery pack), or for guaranteeing power stability
  • Compatible with all major audio editing, mastering, and music production software supporting ASIO, Core Audio or WDM standards
  • Includes Cubase AI DAW software
  • Metal chassis rugged enough to withstand the rigors of the road
  UPC: 086792995441
• Tascam TH-MX2 Mixing Headphones The Tascam TH-MX2 Mixing Headphones are designed for both tracking and mixing in a studio as well as casual everyday listening. The headphones are a closed-back, over-ear design tightly stitched around a steel frame with extra cushioning for added comfort. They utilize 40mm neodymium magnetic drivers to produce a frequency response of 15 to 22,000 Hz and include an extra long 9.8 ft cord to allow you to move around your listening environment. The headphones come included with a leatherette carrying bag and an 1/8" to 1/4" screw-on adapter for connecting to a variety of audio playback devices. UPC: 043774030521
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558267
• Auray OMPF-33 On-Microphone Pop Screen Designed to eliminate vocal plosives and prevent moisture from reaching your large-diaphragm condenser microphone without the need for connecting a gooseneck to your mic stand, the OMPF-33 On-Microphone Pop Screen from Auray features an elegant, easy to clean multi-layer mesh surface and will fit side-address condenser microphones with a diameter between 1.8 and 2.5" (45 to 65 mm).

  The included heavy-duty elastic bands make attaching the OMPF-33 to your mic a snap. Since it attaches directly to the mic itself, it stays in the perfect spot even when you have to adjust the mic's height or position and is a great space saver, making it ideal for use with desktop mic stands, where space is often at a premium. Thanks to its space age, lightweight ABS construction, it will not weigh down your mic.
  • Acoustically transparent- does not affect your sound
  • Easily attaches in seconds
  • Stops plosive sounds
  • Prevents moisture from hitting your mic's capsule
  • Moves with your microphone
  UPC: 847628579576
• Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586

• AT2035 Cardioid Condenser Microphone ufbubzyz
• AT8458 Shockmount for 5/8"-27 Threaded Stands
• 5/8"-27 to 3/8"-16 Threaded Adapter
• Protective Pouch
• Limited 1-Year Warranty

• Steinberg - UR12 - USB Audio Interface ufbubzyz

• Tascam - TH-MX2 Mixing Headphones

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

• Auray - OMPF-33 On-Microphone Pop Screen

• Auray - MS-5230F Tripod Microphone Stand with Fixed Boom

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Audio-Technica AT2035 Cardioid Condenser Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	80 dB
  Equivalent Noise Level	12 dB
  Maximum SPL	148 dB SPL
  Pad	-10 dB
  THD	1%
  Impedance	120 Ohms
  Sensitivity	22.4 mV/Pa
  Low-Cut Filter	12 dB/Octave @ 80 Hz
  Dynamic Range	136 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	3.8 µA
  Operating Voltage	11 to 52 V
  Length	6.69" / 170.0 mm
  Diameter	2.05" / 52.0 mm
  Weight	14.22 oz / 403 g

  Box Dimensions (LxWxH)	9.8 x 9.6 x 3.0"

• Steinberg UR12 - USB Audio Interface

  Max Sample Rate/Resolution	192 kHz / 24-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	1 x XLR 3-Pin Mic Input 1 x 1/4" (6.3 mm) TS Hi-Z Input 1 x 1/4" (6.3 mm) TRS Headphone Output 2 x RCA Monitor Output
  Phantom Power	+48 V
  Digital I/O	None
  MIDI I/O	None

  Frequency Response	20 Hz to 22 kHz
  Dynamic Range	Inputs: 101 dBA

  Sample Rates	Up to 192 kHz
  Bit Depth	24-Bit

  OS Compatibility	iOS 6 or Later macOS 10.7.5 macOS 10.8 macOS 10.9 Windows 7 Windows 8 Windows 8.1
  Processor Requirement	Mac: Intel PC: Intel AMD
  RAM Requirements	2 GB
  Storage Requirements	500 MB
  Minimum Display Resolution	1280 x 800
  Mobile Device Compatibility	iPad 2 or Later CC mode requires Apple iPad Camera Connection Kit/Lightning to USB Camera Adapter and an external 5 VDC adapter or an external battery pack to be used with the UR12
  Required Hardware	Available USB Port Available CD-ROM Drive, USB Port Available CD-ROM Drive, USB Port
  Internet Connection	Required for Registration and Software/Driver Download

  Power Requirements	AC/DC Power Adapter (Not Included), USB Bus-Power
  AC/DC Power Adapter	5 VDC (Not Included)

  Dimensions	6.3 x 5.7 x 1.8" / 159 x 144 x 46 mm
  Weight	1.9 lb / 850.0 g

  Box Dimensions (LxWxH)	9.25 x 8.2 x 4.0"

• Tascam TH-MX2 Mixing Headphones

  Driver Size	1.6" / 40 mm
  Driver Type	Dynamic
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	15 Hz to 22 kHz
  Sensitivity	95 dB
  Maximum Power Handling	400 mW

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Cable Length	9.8' / m

  Box Dimensions (LxWxH)	9.8 x 7.5 x 2.7"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	3.5 x 0.9 x 0.2"

• Auray OMPF-33 On-Microphone Pop Screen

  Compatibility

  Fits large diaphragm condenser mics between 1.8 and 2.5" (45 to 65 mm)

  Box Dimensions (LxWxH)	8.2 x 4.0 x 2.6"

• Auray MS-5230F Tripod Microphone Stand with Fixed Boom

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Length	31.5" / 80 cm

  Material	Steel
  Weight	4.5 lb / 2 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"
