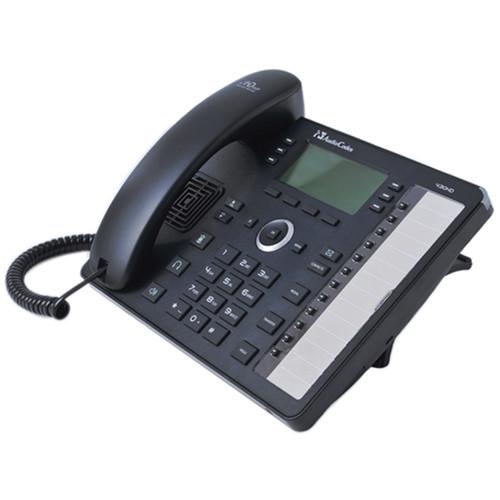

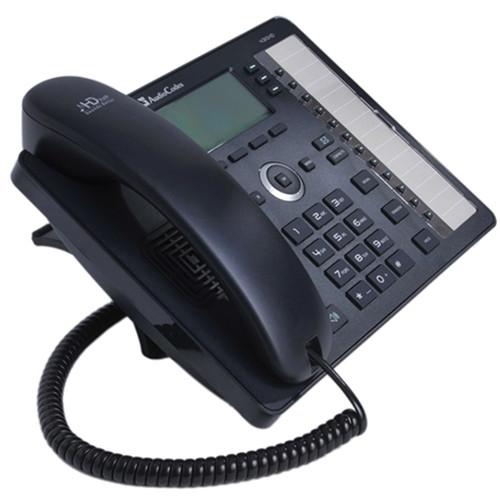

Product description The IP430HDE Lync-Compatible IP Phone from AudioCodes comes with a graphic multi-lingual LCD display along with four programmable soft keys for added convenience. With optional Gigabit Ethernet support and two Gigabit Ethernet ports, this phone can be added into existing GbE network configurations for optimal performance. In addition to the integrated Gigabit Ethernet ports, you can attach headsets directly to the IP430HDE via the RJ-9 headset jack and USB port. With high definition voice quality and a variety of calling features including call waiting, call hold, call transfer, call forwarding and much more you can manage your workflow with ease. - High-definition voice quality
- Multiple language support
- Mass management capabilities with AudioCodes EMS
- Better Together over Ethernet for easy sign in, click to call and Lync conferencing manageability
- Direct access to the Lync contact list
- Supplementary calling features (including Lync conferencing)
- Robust security mechanisms
- Power over Ethernet (PoE)
- Full duplex speakerphone and headset connectivity
In the Box AudioCodes IP430HDE Lync-Compatible IP Phone Handset Coiled Cable Ethernet Cable Stand for the Phone Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AudioCodes IP430HDE Lync-Compatible IP Phone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioCodes IP430HDE Specs | | | LCD | Graphic multi-lingual LCD (132 X 64) | | Keys | 4 x Programmable soft keys
6 x Multi-function keys
12 x Programmable speed dial keys with presence monitoring
Optional GbE support | | Supplementary Services | Call Waiting, Call Hold, Call Transfer, Call Forward, support for ,Lync conferencing services, Hot Line, DND, Mute, Speed Dial Dial Plan, CWRR, Call Logs, Auto Answer, Music on Hold, Busy on Busy, Call Pickup, Call Park, T9 Directory Search | | Signaling | Caller ID, MWI, DTMF Relay - RFC2833, DTMF via SIP INFO Configurable Call Progress Tones | | | | Wideband Voice Coders | G.722, Microsoft Real Time Audio (RTA) | | Narrowband Voice Coders | G.711μ/a and RTA | | Additional Media Specifications | Acoustic echo cancelation (AEC) - multiple path, wideband, acoustic EC, Packet Loss Concealment, Silence Suppression, Voice Activation Detection, Adaptive Jitter Buffer, Media Bypass | | | | VoIP and Signaling | SIP - RFC 3261, SDP - RFC 2327, SIP over TCP/UDP/TLS, DNS_SRV (Redundancy), Digest authentication, PRACK, Early, Media, SIP Subscribe notify, BLF (busy lamp field), Presence, MWI (message waiting indication), Call Admission Control E911 | | Data Protocol | IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, RTCP-XR, 802.1x, Static/IP/DHCP IP Assignment, IEEE 802.1p/Q, QoS/ToS, HTTP, HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN Configuration, LDAP, NAT and Firewall Traversal with STUN / TURN / ICE | | Security | 802.1x, HTTPS, SIP over TLS and SRTP, Configuration file encryption, PC port disable option | | Provisioning & Management | Web Server for Configuration and Management Configuration update via FTP, TFTP, HTTP, HTTPS, DHCP, Options (66,67,160,12,60,77), Mass Deployment, Provisioning with TR-069 and TR-104 (client), Provision URL via SIP SUBSCRIBE and NOTIFY, Lync device in-band provisioning, EMS support | | | | Language Support | English (default), Spanish, Italian, Portuguese, German, Russian, Ukrainian, Polish, French, Hebrew, Finnish | | Telephone Interface | RJ-9 Headset Jack X 1, USB port for headset, DHSG | | Network Interface | 2 x LAN RJ-45 10/100/1000 Base-T for PC and LAN connectivity | | Power Requirements | +12V DC, 1A Power adapter AC 100V-240V and Integrated Power over Ethernet - IEEE 802.3af | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Approvals | FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN61000-3-2, EN61000-3-3, UL-60950-1, EN60950-1, IEC-60950-1 (CB), CE mark, cTUVus, Australia A-Tick, S/NZS60950-1 and AS/ASIF S004, Brazil Anatel, Japan VCCI Class B | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Dimensions | 9.84 x 6.61 x 6.42" / 250 x 168 x 163 mm | | Weight | 2.00 lb / 1.00 kg | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 12.4 x 10.1 x 3.8" |
