User Manual for Audioengine A2 Wireless Bluetooth Speaker System Click to enlarge the picture
Contents of the user manual for the Audioengine A2 Wireless Bluetooth Speaker System
- Product category: Wireless Home Speakers Audioengine
- Brand: Audioengine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audioengine Wireless Home Speakers
|
User manual for the Audioengine A2 Wireless Bluetooth Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audioengine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audioengine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audioengine product will considerably shorten its lifespan!
|

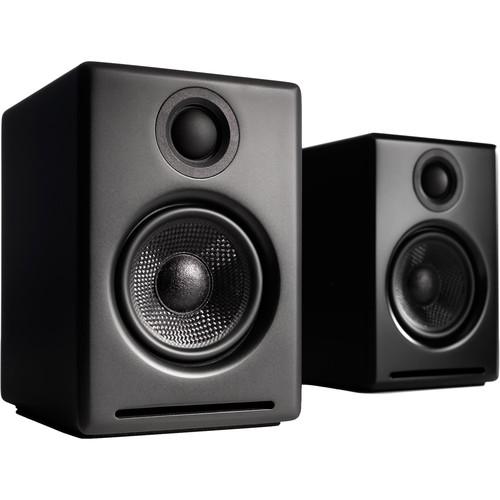

Product description Designed to connect to virtually any device, the satin black Audioengine A2+ Wireless Bluetooth Speaker System provide an analog RCA stereo input, 1/8" input, and Bluetooth connectivity with aptX for wireless connectivity with your compatible devices. The speakers consist of a 2.75" woofer and a 0.75" tweeter and output up to 15W per channel RMS, or 30W per channel peak.

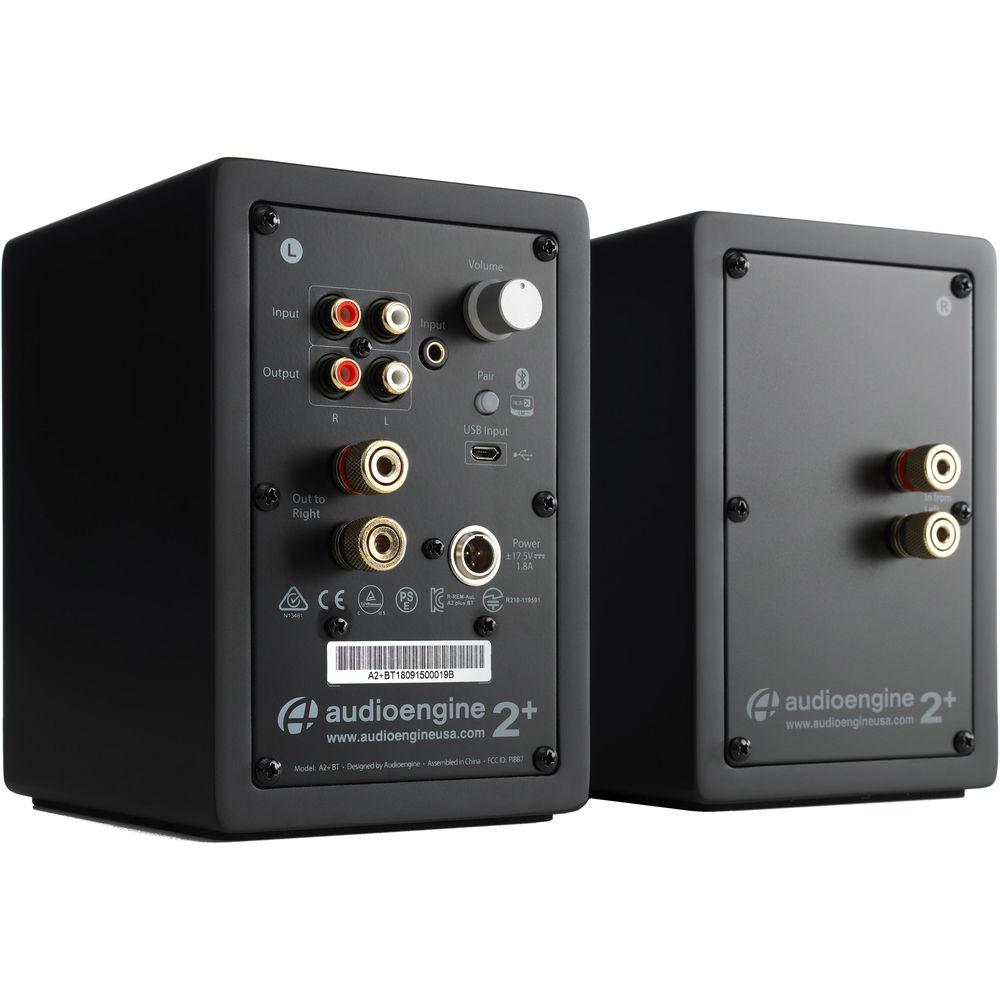

For your convenience, all connectivity is via the powered left speaker, which connects to the passive right speaker with the included speaker wire. The speakers are magnetically shielded, allowing for placement near your TV or other sensitive devices. - Wireless Connectivity
- The A2+ Wireless speakers can connect to nearly any Bluetooth source, so you can wirelessly play your favorite apps like TIDAL, Spotify, Pandora, and more. The Bluetooth receiver built into the A2+ Wireless features aptX coding for enhanced quality with compatible devices. aptX is also backward-compatible with the SBC and AAC codecs, so you can enjoy audio from nearly any Bluetooth-enabled device. Further, the A2+ Wireless has a Bluetooth range of up to 100' with virtually no degradation in audio quality.
- Designed for Enhanced Bass
- These speakers feature acoustic and electrical designs to help provide enhanced bass without using digital signal processing or bass boost circuits.
- Simple, Quick Setup
- There's no network to set up or passwords to create; simply plug in or pair your source device and enjoy.
- Engineered for Lower Power Consumption
- The cabinets, drivers, bass port designs, amplifiers, and crossovers are all tuned together to help create an efficient system that requires less power than passive speakers and a separate integrated amplifier or similar A/V components.
- Designed for Efficiency
- With all the electronics built into the left speaker, it's easy to connect your source device of choice. All the circuit boards for the power and preamp sections are vertically mounted for augmented mechanical shock protection.
- Driver Design
- The A2+ Wireless speakers use ferrofluid-cooled, silk-dome tweeters with neodymium magnets. The tweeters are engineered to hold up well under high power, and the edge-driven design helps provide smooth response. The aramid-fiber woven-glass composite helps the woofers retain their shape when being driven at high levels.
- Magnetic Shielding
- Both of the A2+ Wireless speakers are magnetically shielded, so you can place them near your display or other sensitive devices.
- Additional Features
-
- Output current limiting, thermal over-temperature, and power on/off transient protection
- 1/4"-20 threaded brass inserts on the bottom enable attachment to floor stands or wall mounts

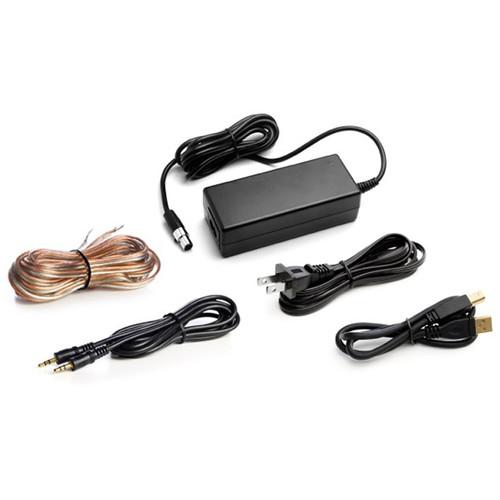

UPC: 852225007162 In the Box Audioengine A2+ Wireless Bluetooth Speaker System (Satin Black, Pair) 6.6' 16 AWG Speaker Wire 4.9' Mini-Jack Audio Cable 4.9' USB Cable 2 x Cloth Speaker Bags Cloth Cable Bag Power Supply AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audioengine A2 Wireless Bluetooth Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioengine A2+ Specs | Design | 2-Way, 2-Channel (Stereo) | Amplifier | Dual Class-AB Monolithic | RMS Power Output | 2 x 15 W, AES | Peak Power Output | 2 x 30 W, AES | THD + N | <0.05 % at All Power Settings | Frequency Response | 65 Hz to 22 kHz ±2 dB | Woofer | 1 x 2.75" / 69.85 mm Aramid-Fiber Woofer per Speaker | Tweeter | 1 x 0.75" / 20 mm Silk-Dome Tweeter per Speaker | | Bluetooth Version | 5.0 | Bluetooth Codecs | aptX Low Latency, aptX, AAC, SBC | Bluetooth Range | Up to 100' / 30 m | Latency | Bluetooth: ~30 ms | Inputs | Left Speaker: 1 x 1/8" / 3.5 mm Stereo Mini Jack 1 x Stereo RCA 1 x Micro-USB
Right Speaker: 1 x Binding Post Pair | Outputs | Left Speaker: 1 x Stereo RCA 1 x Binding Post Pair | Signal to Noise Ratio | >95 dB (Typical A-Weighted) | Crosstalk | <50 dB | Input Impedance | 5 kohms Unbalanced | DAC | CSR8670 | Input Bit Depth | Up to 16 Bits Native | Input Sample Rate | Up to 48 kHz Native | Input Data Rate | Determined by Bluetooth | USB Device Support | Type 1.1 or Above | | Cabinet | 0.71" / 18 mm Thick MDF | Magnetic Shielding | Yes | Operating Temperature | 32 to 95°F / 0 to 35°C | Storage Temperature | -4 to 113°F / -20 to 45°C | Relative Humidity | 5 to 95%, Non-Condensing | Power Requirements | 110 to 240 VAC, 50/60 Hz Auto-Switching | Dimensions (W x H x D) | 4 x 6 x 5.25" / 10.16 x 15.24 x 13.34 cm | Weight | Left Speaker: 3.55 lb / 1.6 kg Right Speaker: 3.15 lb / 1.5 kg | | Package Weight | 9.72 lb | Box Dimensions (LxWxH) | 15.3 x 11.0 x 7.2" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
