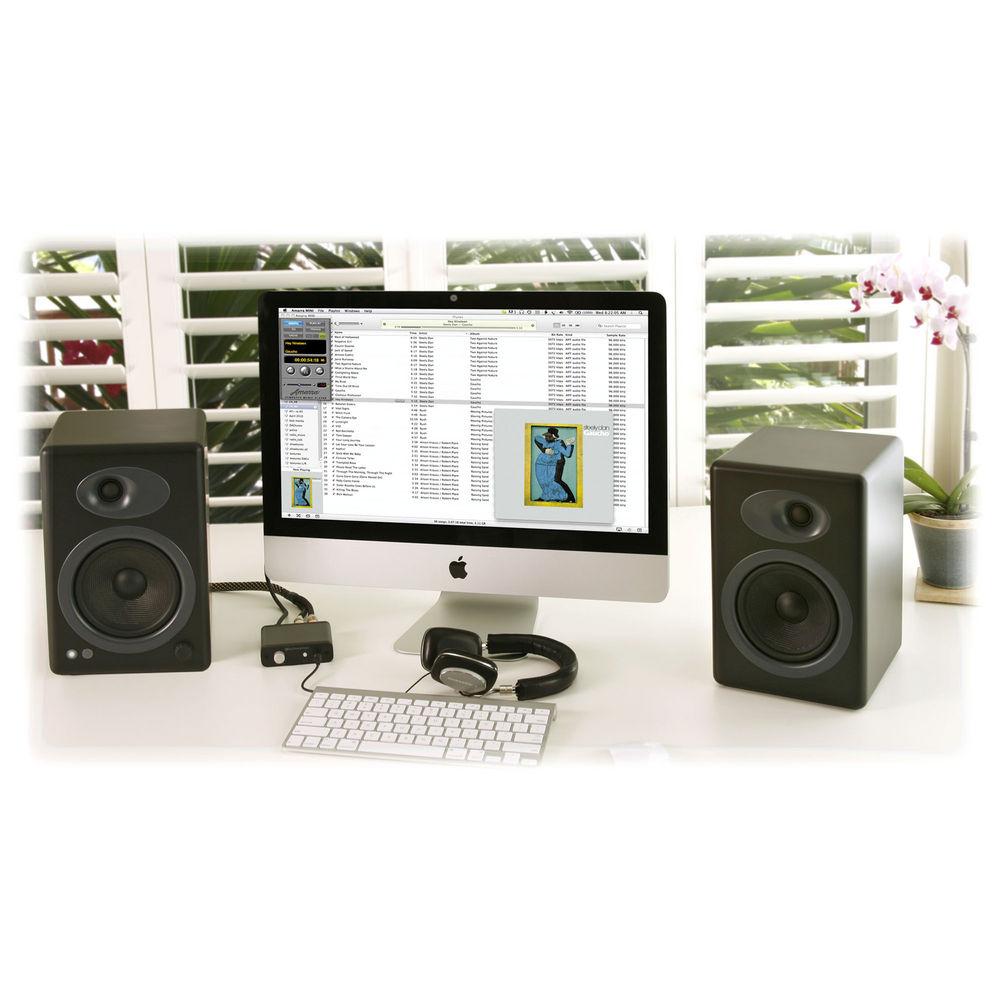

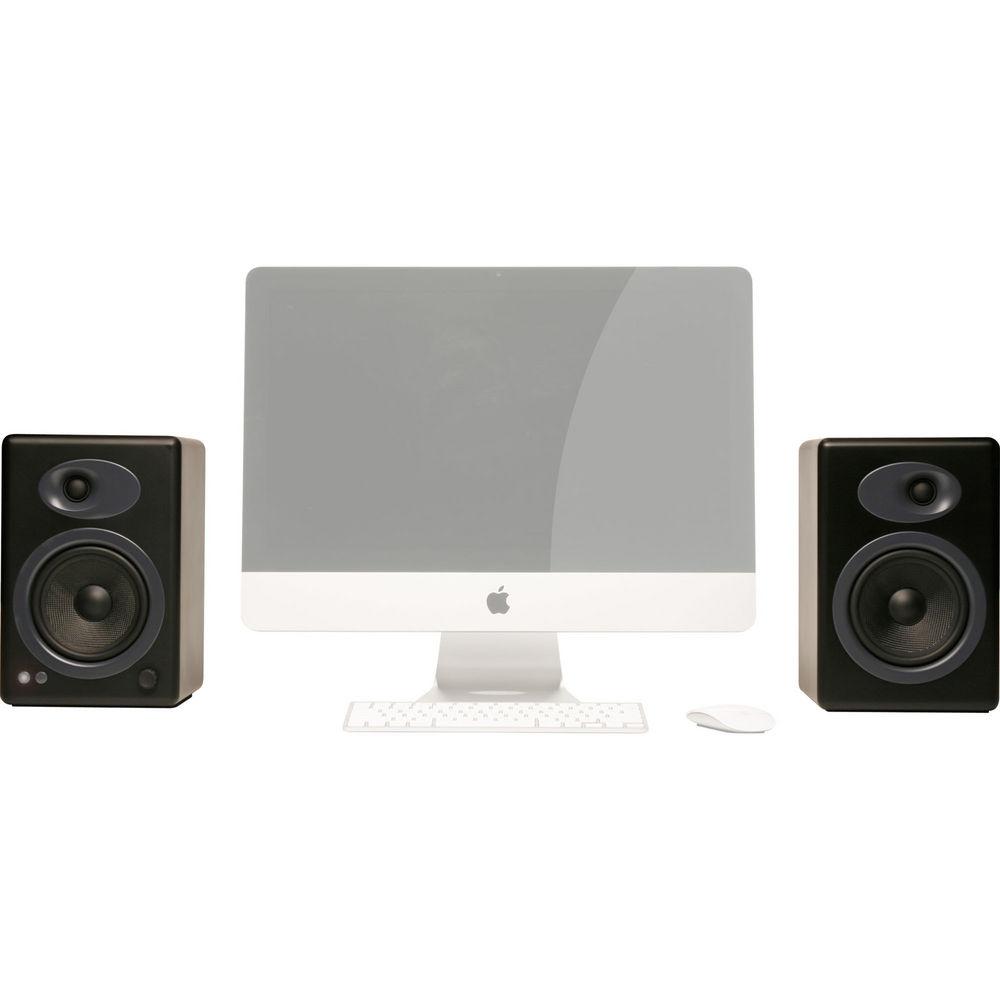

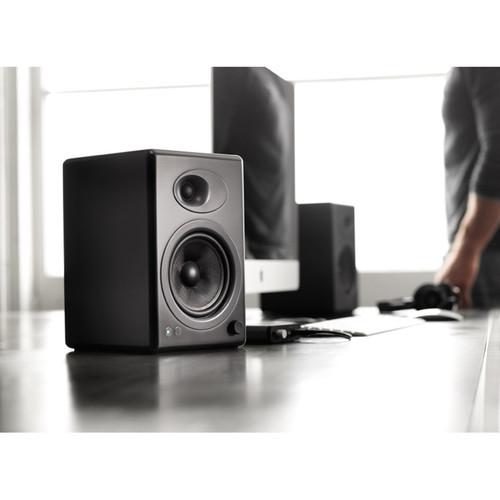

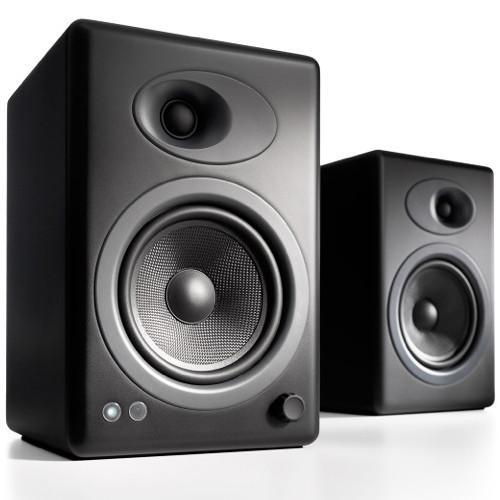

Product description The A5+ 5" Active 2-Way Speakers (Pair, Black) from Audioengine provide high-quality audio in a compact and stylish design, ideal for use with a variety of audio sources and devices. The system consists of an active left speaker and a passive right speaker, which are connected together via full-size gold-plated 5-way binding posts. Each speaker has a hand-built cabinet made from 0.75" thick MDF wood. Each cabinet contains a custom 5" Kevlar woofer and a 0.8" silk tweeter to provide clear, detailed audio with a wide frequency response and excellent realism.
The cabinets have rear-facing bass ports to extend low frequency response and tweeter waveguides to provide a wide dispersion pattern and realistic stereo imaging. The left speaker has internal Class-AB amplifiers that provide a combined system power of 150W to deliver a strong performance with low distortion. The rear panel offers 3.5mm and RCA inputs, allowing you to connect computers, MP3 players, smartphones, and any other product with 3.5mm or RCA outputs. The speakers are also compatible with Audioengine wireless audio adapters, and Apple's Airport Express and AirPlay.
The active speaker also has a stereo RCA output so you can connect an additional device, such as a subwoofer. A USB power/charging output allows you to charge small devices such as MP3 players or mobile phones while you listen to music. A convenient front-panel volume control lets you make quick adjustments. Protection circuitry includes output current limiting, thermal over-temperature, power on/off transient protection, and a replaceable external main fuse for lasting reliability. The speakers are also magnetically shielded for safe use near video monitors and other electronics.
The bottom of each speaker has a high-density isolation pad to reduce vibrations and reflections when used on a table or desk. There are also 1/4"-20 inserts so you can mount the speakers on stands. The system has a selectable operating voltage for international use. A convenient remote control is included for controlling the speakers. You are also provided with connection cables and carrying bags for quick and easy setup. - Compact and Affordable
- The compact design is ideal for use in bedrooms, offices, dorm rooms, and any other spaces where high-quality audio is desired in a compact design
- Easy Setup
- Simply connect the active left speaker to the passive right speaker using the included cable, plug the active speaker into the wall, connect your audio source, and you're ready to go! The speakers have full-size gold-plated 5-way binding posts for a high-quality connection and signal path
- Hand-Built Cabinets
- Each cabinet is hand-built from 0.75" thick MDF wood. Each component is custom-designed and tuned together for a high level of efficiency and audio performance
- Custom Drivers
- Each cabinet contains a custom 5" Kevlar woofer and a 0.8" silk tweeter to provide clear, detailed audio with a wide frequency response and excellent realism. The strong materials and neodymium magnets are robust and efficient to retain their shape, even when being driven at high volume levels
- Bass Ports and Waveguides
- The cabinets have rear-facing bass ports to extend low frequency response and tweeter waveguides to provide a wide dispersion pattern and realistic stereo imaging
- Class-AB Amplifiers
- The left speaker has internal Class-AB monolithic amplifiers with gapless core toroidal transformers that provide a combined system power of 150W to deliver a strong performance with low distortion

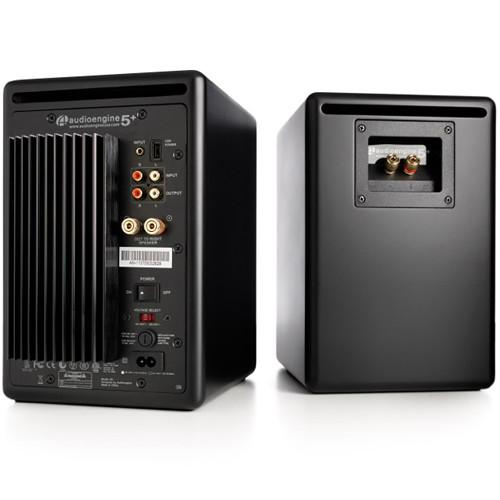

- RCA and 3.5mm Inputs
- The rear panel offers 3.5mm and RCA inputs, allowing you to connect computers, MP3 players, smartphones, and any other product with 3.5mm or RCA outputs. The speakers are also compatible with Audioengine wireless audio adapters, and Apple's Airport Express and AirPlay
- RCA Output
- The active speaker has a variable preamp stereo RCA output so you can connect an additional device, such as a subwoofer
- USB Charging Port
- An internal 5V, 500mA USB power supply allows you to charge small devices such as MP3 players or mobile phones while you listen to music. The USB port does not support data transfer or music syncing
- Volume Control
- A convenient front-panel volume control lets you make quick adjustments
- Thermal Management and Protection
- Protection circuitry includes output current limiting, thermal over-temperature, power on/off transient protection, and a replaceable external main fuse for lasting reliability
- Shielded
- The speakers are magnetically shielded for safe use near video monitors and other electronics
- Isolation Pads
- The bottom of each speaker has a high-density isolation pad to reduce vibrations and reflections when used on a table or desk
- Stand Mounting
- Each cabinet has a 1/4"-20 insert so you can mount the speakers on stands
- International Operation
- The system has a selectable operating voltage for international use
- Remote and Accessories
- A convenient remote control is included for controlling the speakers. You are also provided with connection cables and carrying bags for quick and easy setup

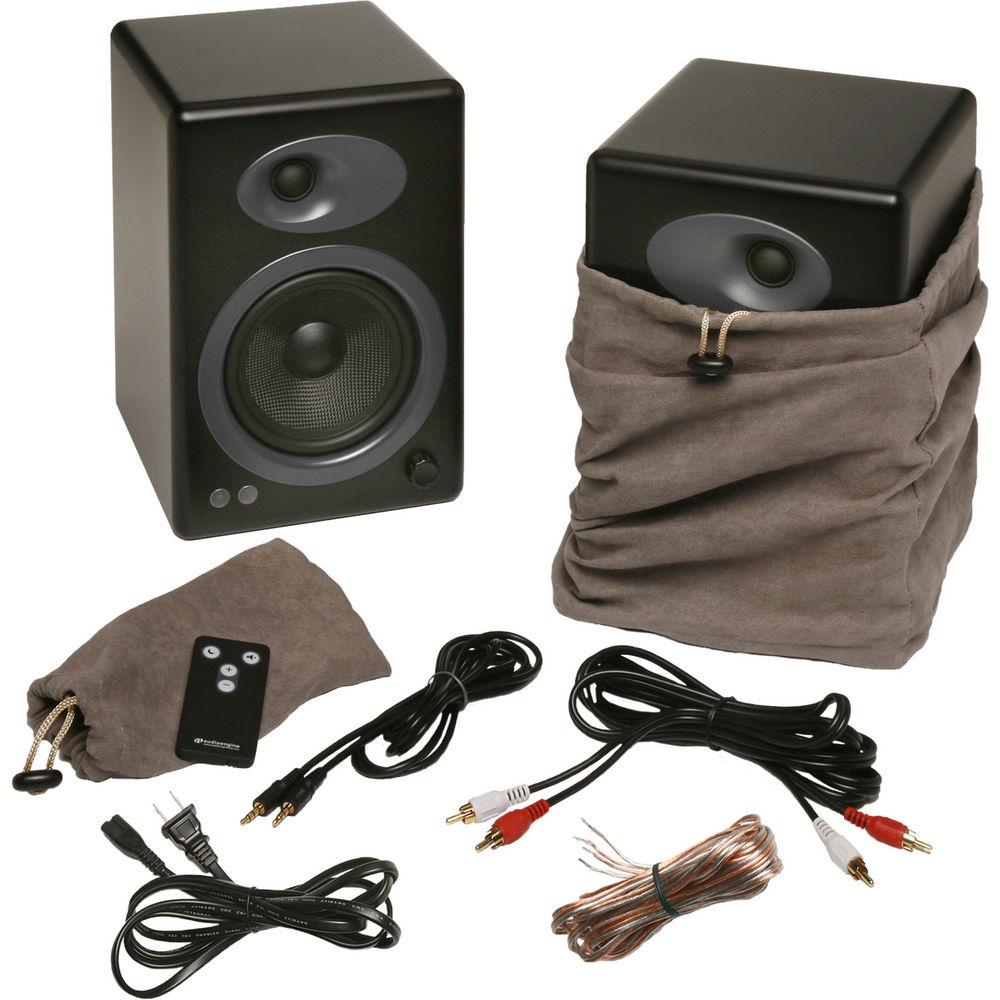

UPC: 819955230031 In the Box Audioengine A5+ 5" Active 2-Way Speakers (Pair, Black) Active Left Speaker Passive Right Speaker Remote Control 16AWG Speaker Wire (3.75 m) Detachable Power Cord 3.5mm Mini Audio Cable (2 m) RCA to RCA Audio Cable (2 m) 2 x Cloth Speaker Bags Cloth Cable Bag 3-Year Limited Parts and Labor Warranty Brochure PDF 847.5kbysubfbecyxadstzrxtwzbwyabruryxrdyt Table of Contents
|
Upload User Manual
Have you got an user manual for the Audioengine A5 5" Active 2-Way Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioengine A5 Specs | Type | 2.0 Active Bookshelf-Style 2-Way Stereo Speaker System | | Amplifier | Dual Class-AB Monolithic with Gapless Core Toroidal Transformers | | Power Output | 150W Peak Power Total, 50W RMS/75W Peak Per Channel, AES | | Frequency Response | 50Hz - 22kHz ±1.5dB | | Signal to Noise Ratio | > 95dB (Typical A-Weighted) | | Total Harmonic Distortion (THD) | < 0.05% at all Power Settings | | Crosstalk | < 50dB | | Input Impedance | 10 kOhms, Unbalanced | | Woofer | 5" (127mm) Kevlar Woven Glass Aramid Composite Woofer with Rubber Surround and Advanced Voice Coil | | Tweeter | 0.8" (20mm) Silk Dome Tweeter with Neodymium Magnet | | Connectors | Left Speaker:
1 x AC Power Input
1 x 3.5mm Stereo Mini Input
1 x Stereo RCA Input (2 Jacks, L/R)
1 x Variable Stereo RCA Output (2 Jacks, L/R, Adjustable Full-Range)
1 x USB Type A Power/Charging Port
1 x 5-Way Binding Post Output to Right Speaker (2 Posts)
Right Speaker:
1 x 5-Way Binding Post Input from Left Speaker (2 Posts) | | Construction | 0.75" (19mm) Thick MDF Wood with Black Finish | | Protection | Output Current Limiting, Thermal Over-Temperature, Power On/Off Transient Protection, Replaceable External Main Fuse | | Operating Voltage | 115/240VAC, 50/60Hz Selectable | | Power Consumption | Idle: 10W
Mute: 6W
Sleep: 4W | | Environmental | Operating Temp: 32 to 95°F (0 to 35°C)
Storage Temp: -4 to 113°F (-20 to 45°C)
Relative Humidity: 5 to 95%, Non-Condensing | | Dimensions (HxWxD) | 10.75 x 7 x 7.75" (273 x 178 x 197mm) (Each Speaker) | | Weight | Left Speaker: 15.4 lbs (7kg)
Right Speaker: 9.6 lbs (4.4kg) | | | | Package Weight | 29.75 lb | | Box Dimensions (LxWxH) | 21.9 x 15.6 x 11.3" |
