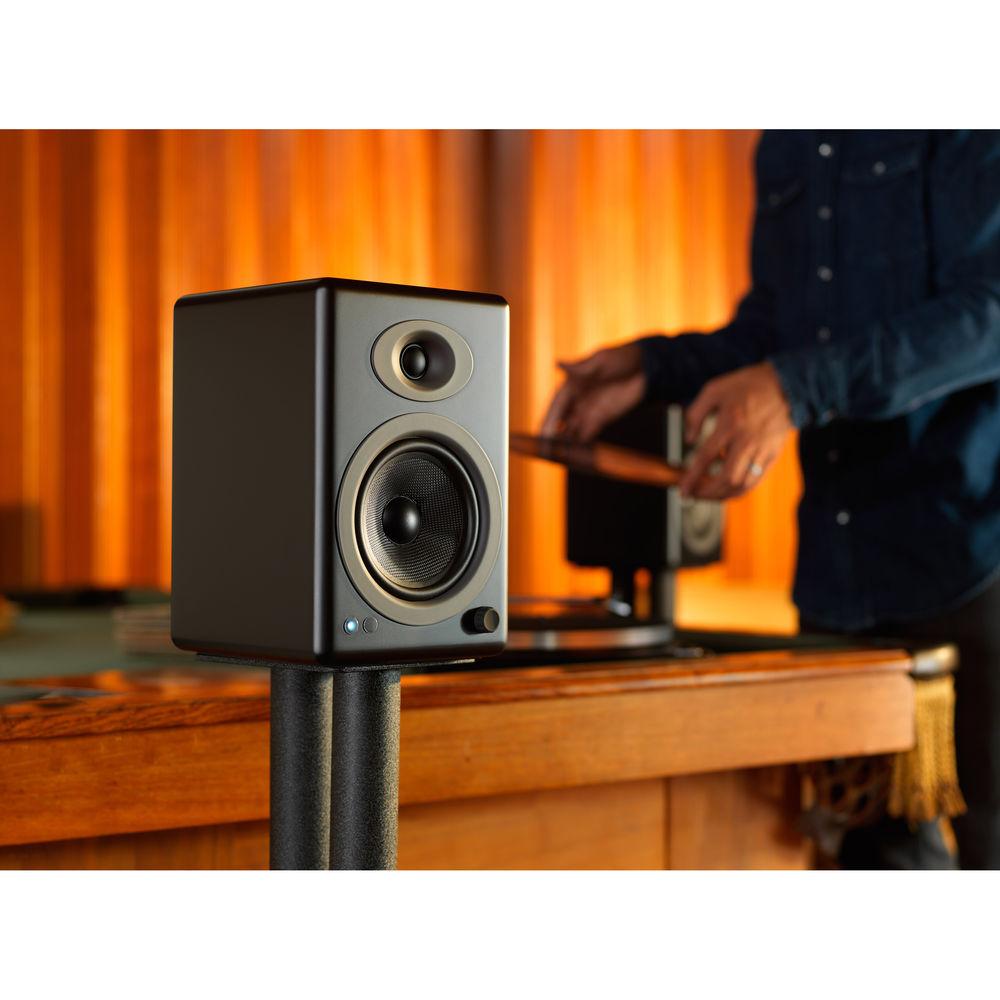

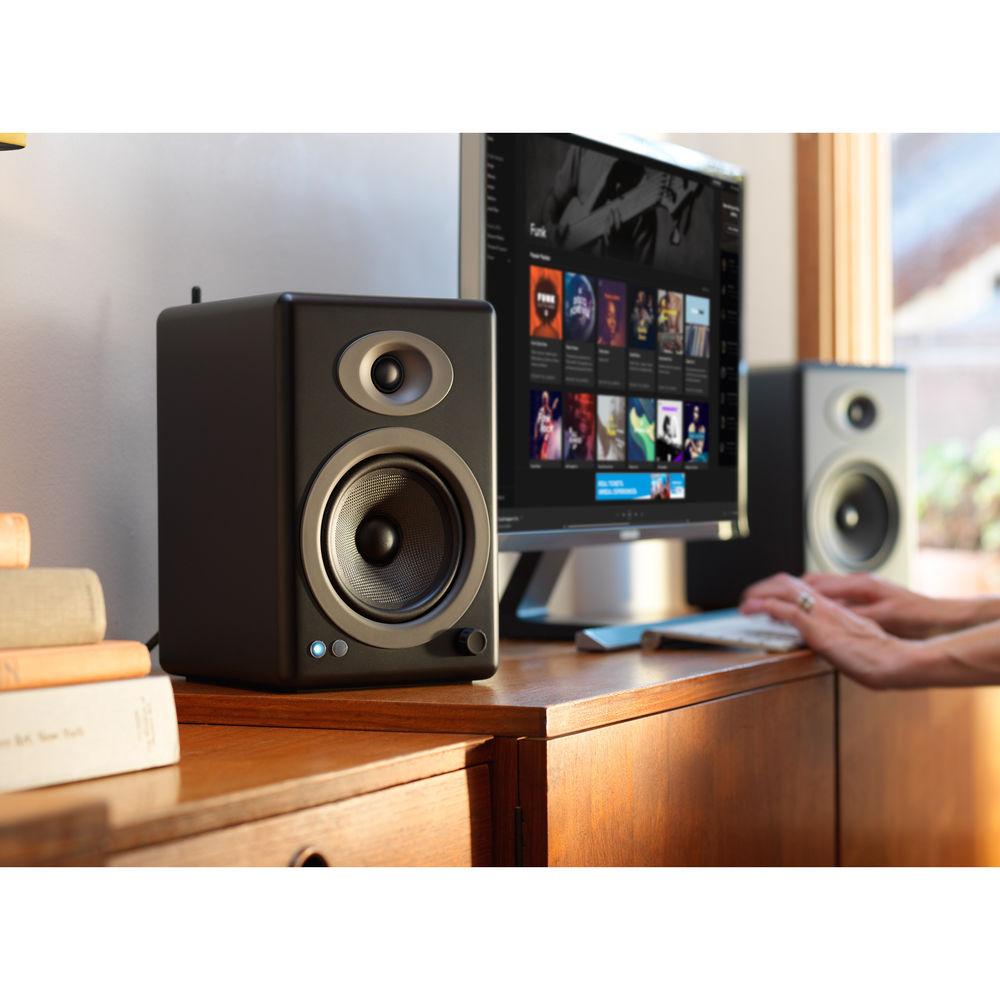

User Manual for Audioengine A5 Wireless 2-Way Active Bluetooth Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the Audioengine A5 Wireless 2-Way Active Bluetooth
- Product category: Bookshelf Speakers Audioengine
- Brand: Audioengine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audioengine Bookshelf Speakers
 |
User manual for the Audioengine A5 Wireless 2-Way Active Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audioengine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audioengine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audioengine product will considerably shorten its lifespan!
|

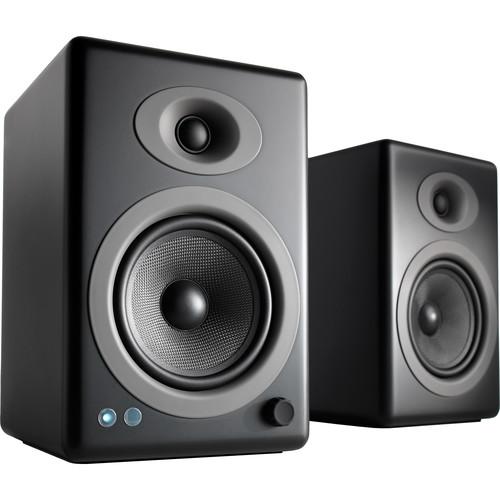

Product description Enjoy your audio from nearly any source with this pair of satin black Audioengine A5+ Wireless 2-Way Active Bluetooth Bookshelf Speakers. They feature Bluetooth with aptX technology for wireless connectivity, plus stereo RCA and 1/8" inputs for traditional wired devices. The A5+ Wireless has a 2-way design with a built-in 50W RMS per channel amplifier. Each speaker sports a 5" Kevlar woofer and a 0.75" silk dome tweeter, and the system includes an aluminum remote control. - Integrated Design
- The speaker cabinets, drivers, bass ports, amplifiers, and passive crossovers are all tuned together, helping to provide a more efficient speaker system that requires less power than passive speakers and a separate amplifier or similar component. With all the electronics built into the left speaker, it's simple to connect your favorite audio device.
- Bluetooth Audio
- The Bluetooth built into the A5+ Wireless features aptX coding for enhanced sound quality when paired with an aptX-enabled source device; it's also backward-compatible with the SBC and AAC codecs for universal Bluetooth compatibility. aptX also allows for a broader Bluetooth range for multi-room use.
- 24-Bit DAC
- The A5+ Wireless uses the AKM AK4396A DAC for upsampling, helping to achieve a higher signal-to-noise ratio and a lower noise floor.
- Amplifier Design
- The amplifiers in the A5+ Wireless are located in the left speaker and features a Class-A/B analog monoblock design. This is engineered to provide enhanced audio quality and flexibility, and all the circuit boards for the power and preamp sections are vertically mounted for augmented mechanical shock protection.
- Driver Design
- The A5+ Wireless speakers use ferrofluid-cooled silk-dome tweeters with neodymium magnets. Silk tweeters are designed to hold up well under high power, and the edge-driven design helps provide a smooth response. The woofers are Kevlar woven-glass aramid composite with rubber surrounds. Kevlar helps the woofer retain its shape when being driven at high levels. The woofers are housed in cast-aluminum frames, which help provide high rigidity and high heat dispersion.
- Power Transformers
- Power transformers are critical to audio performance, particularly in the low-end. The A5+ Wireless speakers use gapless-core toroidal transformers, which are designed with a tighter radiated magnetic field, translating to lower noise. They are lighter than the more common "EI" transformer and generate less heat.
- Magnetic Shielding
- Both of the A5+ Wireless speakers are magnetically shielded for safe placement near other electronics.
UPC: 852225007063 In the Box Audioengine A5+ Wireless 2-Way Active Bluetooth Bookshelf Speakers (Satin Black, Pair) Aluminum Remote Control 12.3' Speaker Wire 6.6' Stereo RCA Cable 6.6' 1/8" Audio Cable 2 x Cloth Speaker Bags Cloth Cable Bag Detachable Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audioengine A5 Wireless 2-Way Active Bluetooth Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioengine A5 Plus Specs | | | Design | 2-way | | Amplifier | Dual Class-AB monolithic | | Power Output per Channel | Peak: 75 W

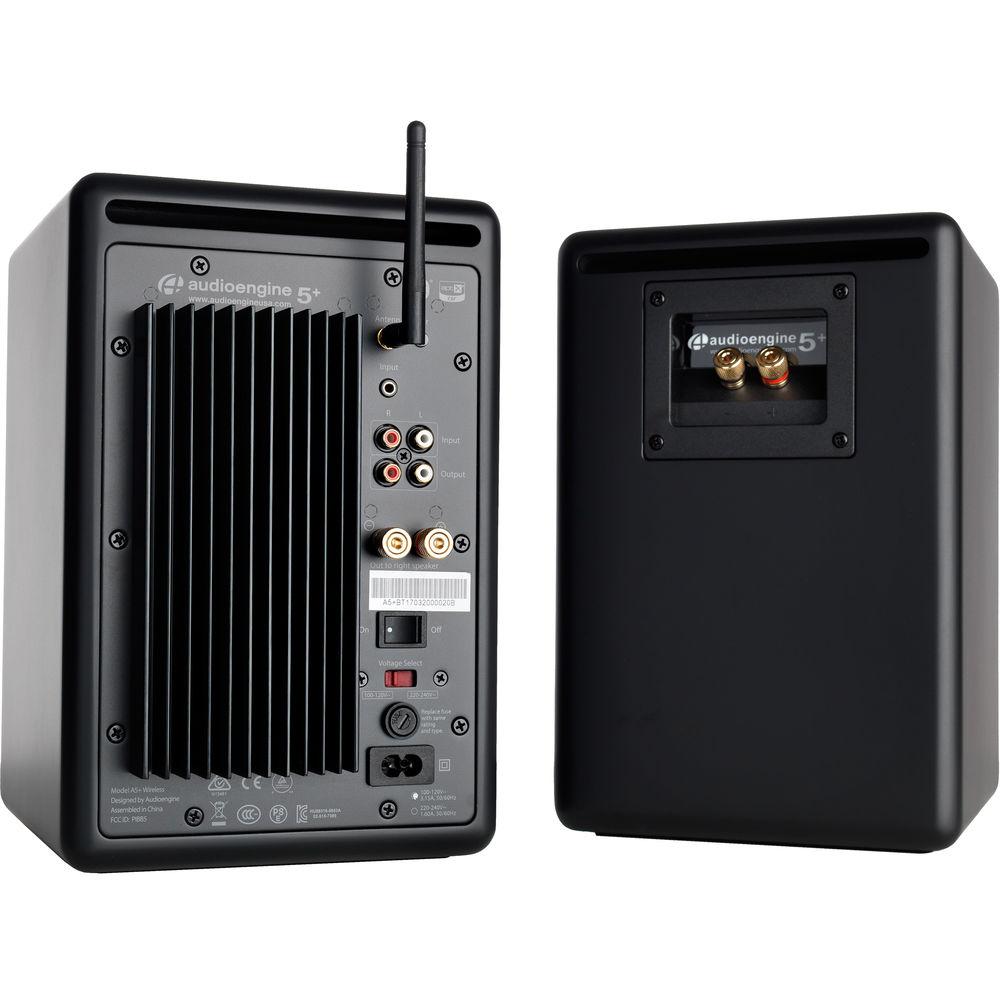

RMS: 50 W | | Frequency Response | 50 Hz to 22 kHz ±1.5 dB | | Signal to Noise Ratio | >95 dB (typical A-weighted) | | Total Harmonic Distortion (THD) + N | <0.05% at all power settings | | Crosstalk | -50 dB | | Analog Input Impedance | 48 kOhms, unbalanced | | Output Impedance | 47 Ohms | | Woofer | 1x 5" / 130 mm Kevlar woven-glass aramid composite woofer with rubber surrounds per speaker | | Tweeter | 1x 0.75" / 20 mm ferrofluid-cooled silk-dome tweeter per speaker | | Connectors | Left Speaker:
1 x stereo RCA in
1 x 1/8" / 3.5 mm in
1 x binding post pair out to right speaker
Right Speaker:
1 x binding post pair in from left speaker | | | | D/A Converter | AKM AK4396 | | Input Bit Depth | 24 bits upsampled | | Version | Bluetooth 4.0 audio | | Supported Codecs | aptX, AAC, SBC | | Range | Up to 100' / 30 m typical | | Input Data Rate | Determined by Bluetooth | | Latency | Approximately 30 ms | | | | Construction | 0.5" / 13 mm MDF cabinets | | Power Requirements | 115 to 240 VAC, 50/60 Hz, manually switchable | | Power Consumption | Idle: 10W
Mute: 6W
Sleep: 4W | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Relative Humidity, Non-Condensing | 5 to 95% | | Dimensions (W x H x D) | Left Speaker: 7 x 10.75 x 9" / 18 x 27 x 23 cm
Right Speaker: 7 x 10.75 x 7.75" / 18 x 27 x 20 cm | | Weight | Left Speaker: 15.4 lb / 7 kg
Right Speaker: 9.6 lb / 4.4 kg | | | | Package Weight | 29.15 lb | | Box Dimensions (LxWxH) | 22.0 x 15.0 x 11.0" |
