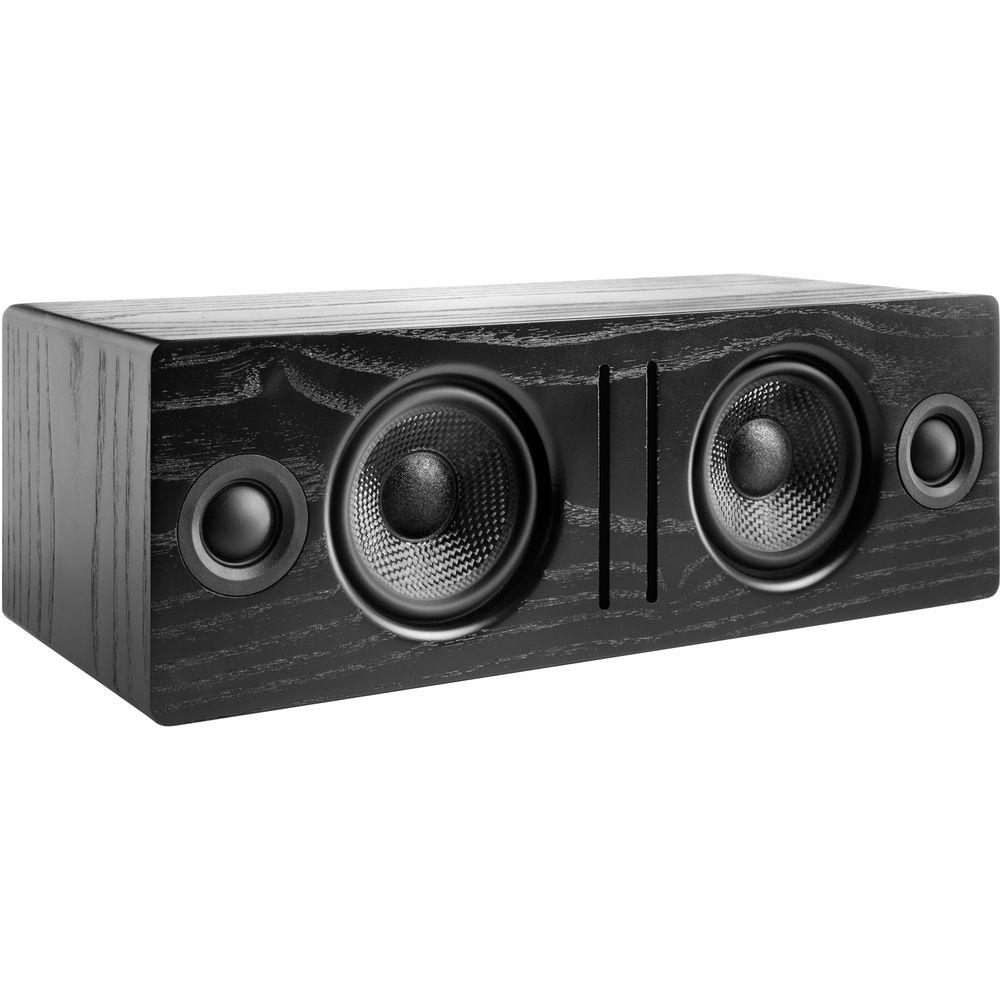

Product description Enjoy high-quality audio with the black ash Audioengine B2 Bluetooth Speaker. This speaker produces up to 60W of total power from its stereo design and incorporates dual 2.75" Kevlar woofers and 0.75" silk dome tweeters. Bluetooth 4.0 is built-in for wireless audio streaming from devices such as smartphones and tablets. This speaker also supports aptX, which delivers CD-like sound quality when paired with other aptX-enabled audio sources.

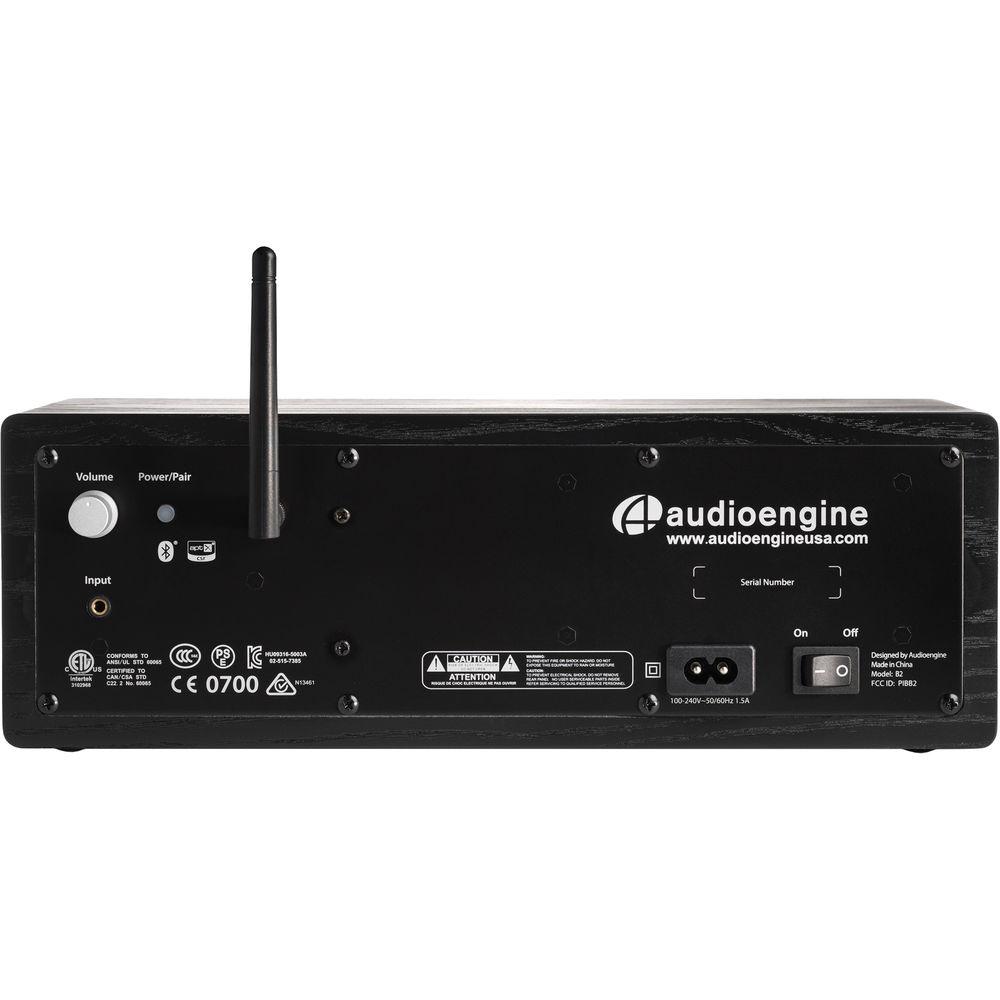

The Audioengine B2 Bluetooth Speaker uses a TI PCM5102A DAC for high-quality digital-to-analog conversion. In addition to the aforementioned Bluetooth connectivity, this speaker features a rear 3.5mm input. This interface allows you to connect a wide variety of wired audio sources. The B2 features an 18mm thick MDF cabinet with real wood veneer. - Digital-to-Analog Converter Characteristics
- The B2 Bluetooth speaker system utilizes the TI PCM5102A DAC, which is regarded for its low noise and high fidelity. Due to the PCM5102A's high signal-to-noise specs, the digital signal is converted (upsampled) to 24-bits with the added benefit of triple redundancy power source conversion and filtering.
- Extended Wireless Range
- Some Bluetooth speakers have limited range, usually within just one room. With careful signal management circuitry and antenna tuning, the B2 is engineered to reach other rooms in your home without sacrificing audio quality.
- High-Quality Bluetooth Audio
- The B2 features aptX coding, which is an advanced Bluetooth audio codec that's designed to provide CD-like sound quality when used with compatible audio sources. The B2 is backwards-compatible with all previous Bluetooth implementations, so you can wirelessly stream music from a wide variety of Bluetooth-enabled audio sources.
- Custom-Built Audio Components
- Audioengine designs its own tweeters, woofers, and many other critical components. Components like toroidal transformers, magnets, and wiring harnesses that are not made in their factory are custom-made to their specifications. The cabinets, drivers, bass port designs, amplifiers, and crossovers are all tuned together for each Audioengine model.
- Based on Studio Monitor Designs
- Studio monitor speakers are used by producers and engineers in recording and production studios. They are designed with a theoretical flat frequency response which allows the engineer to create a final mix in such a way that the recorded music will sound good on most other speakers. Although Audioengine speakers are not designed to be up-close "nearfield" studio monitors, Audioengine speakers employ similar high-end technology, components, and design philosophy.
- Drivers

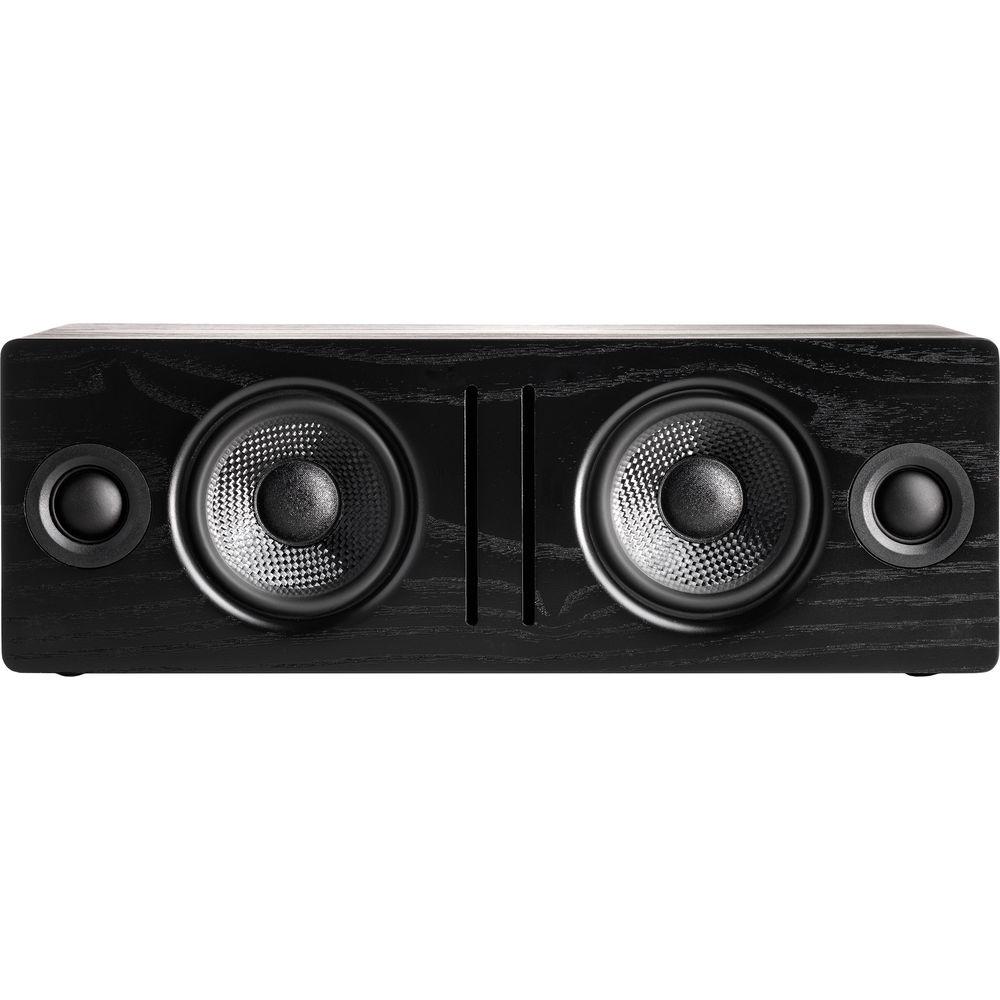

- Audioengine uses audiophile-quality, ferrofluid-cooled, silk dome tweeters with neodymium magnets. Silk tweeters are engineered to hold up well under high power conditions and the edge-driven design produces a smooth response. The custom woofers are Kevlar woven glass aramid composite with rubber surrounds. Kevlar is a durable material, which means that the woofer retains its shape when being driven at high volume levels. Because the speakers feature robust construction, speaker grilles aren't needed.
- Cabinet
- To minimize unwanted resonances and distortion, Audioengine cabinets have thick high-resin MDF walls with extensive internal bracing. Heavy internal sound-damping material is also used to reduce unwanted sound reflections inside the cabinet. The B2 cabinet is a unique design in that it has dual sub-enclosures to prevent cross-interference, while each side contains its own tuned, front-port bass slot.
- Power Amplifier
- The class-A/B amplifiers in Audioengine speaker systems are conservatively-rated analog designs. Each subsystem is tuned together for all models, providing an efficient system requiring less power than passive speakers and separate amplifiers. An auto-standby idle mode is also included to conserve power when you're not playing music.
- Shielding
- Both drivers are magnetically-shielded, which allows protection for CRT displays and hard-drive music players.
- Additional Features
-
- Designed to setup in seconds with easy device pairing without software
- Built-in auto voltage switching power supply
- Includes microfiber speaker bag for portability

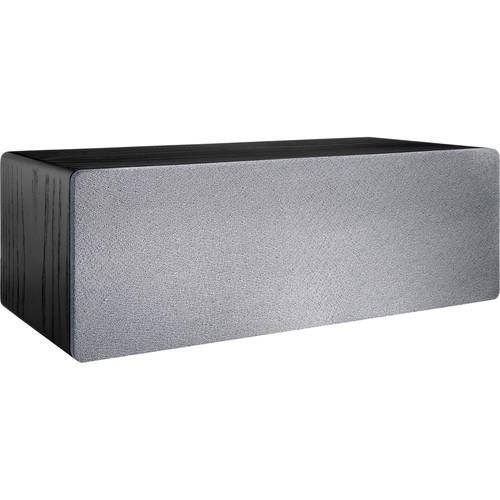

UPC: 819955270105 In the Box Audioengine B2 Bluetooth Speaker (Black Ash) Speaker Grille Power Cable Antenna Microfiber Speaker Bag 4.9' (1.5m) Mini-Jack Audio Cable Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Audioengine B2 Bluetooth Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Audioengine B2 Bluetooth Speaker can be downloaded in PDF format at the link stated below.
Technical parametersAudioengine B2 Specs | | | Power Output | 60 W peak total (15 W RMS, 30 W peak per channel), AES | | Drivers | 2 x 2.75" (6.99 cm) Kevlar woofers
2 x 0.75" (1.91 cm) silk dome tweeters | | Bluetooth Version | 4.0 with aptX codec | | Bluetooth Profiles | A2DP, AVRCP | | Input | 1 x 1/8" (3.5 mm) | | Analog Input Impedance | 10 K ohms unbalanced | | Frequency Response | 65 Hz - 22 kHz (±2.0 dB) | | SNR | >95 dB (typical A-weighted) | | THD & Noise | <0.05% at all power settings | | Crosstalk | -50 dB | | D/A Converter | TI PCM5102A | | Input Bit Depth | 24-bit (upsampled) | | Input Data Rate | Determined by Bluetooth | | Latency | Wireless: ~30 ms | | Wireless Range | Up to 100.0' (30.5 m) | | | | Construction | 18 mm MDF with real wood veneer | | Power Filtering | 3-stage redundant regulation | | Protection | Output current limiting, thermal over-temperature, power on/off transient protection | | Power Requirements | 100 - 240 VAC, 50 / 60 Hz auto-switching | | Environmental Requirements | Operating Temperature: 24 to 105°F (0 to 40°C)
Storage Temperature: -4 to 115°F (-20 to 46°C)
Relative Humidity: 5% to 95% non-condensing | | Dimensions (HxWxD) | 4.3 x 12.3 x 5.5" (10.8 x 31.1 x 14.0 cm) | | | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 15.6 x 9.2 x 8.4" |
