User Manual for Audioengine D1 24-Bit Digital to Analog Converter Click to enlarge the picture
Contents of the user manual for the Audioengine D1 24-Bit Digital to Analog
- Product category: AD/DA Converters Audioengine
- Brand: Audioengine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audioengine AD/DA Converters
 |
User manual for the Audioengine D1 24-Bit Digital to Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audioengine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audioengine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audioengine product will considerably shorten its lifespan!
|

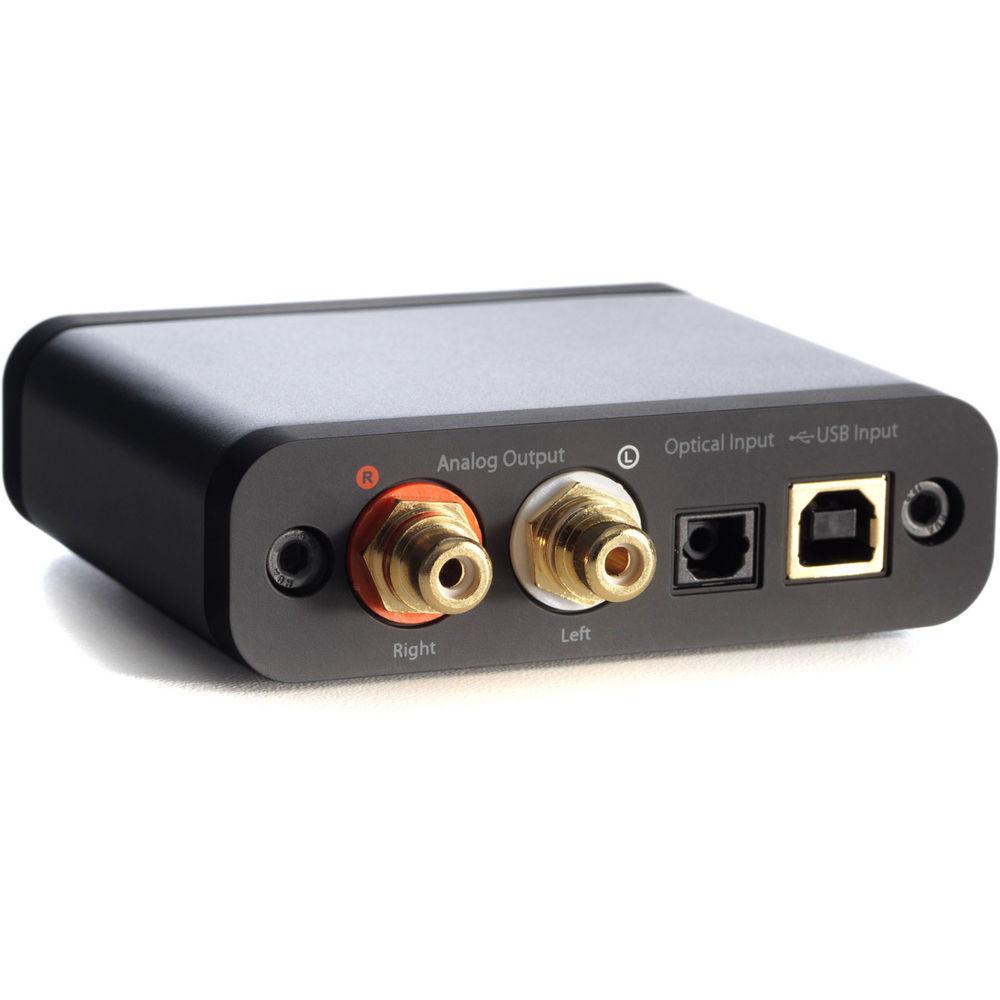

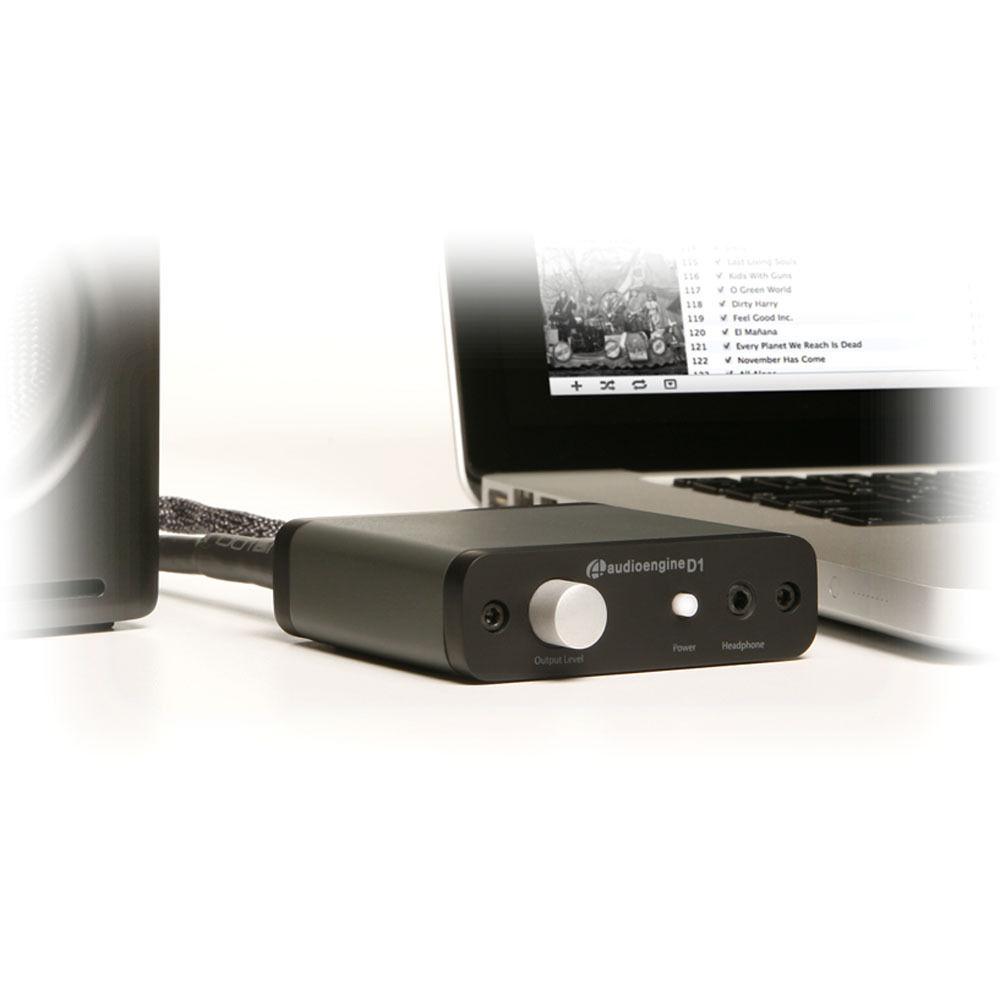

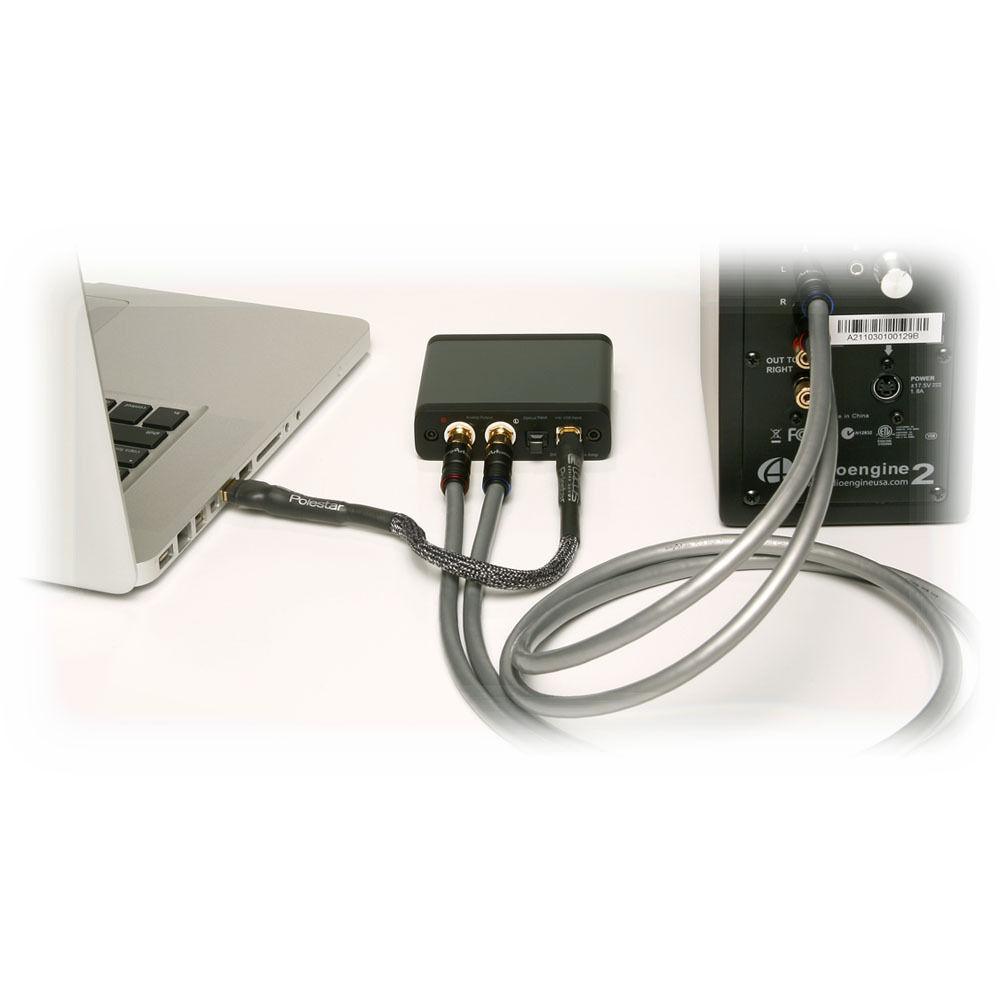

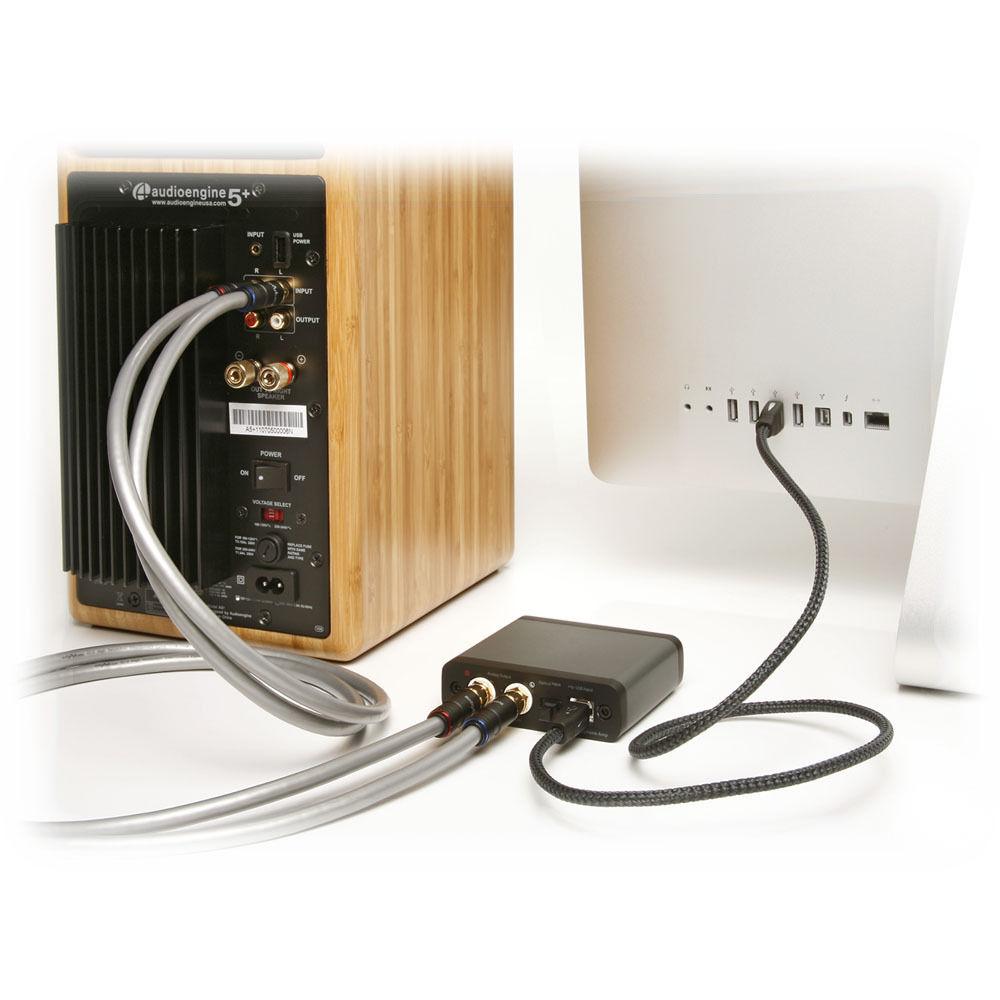

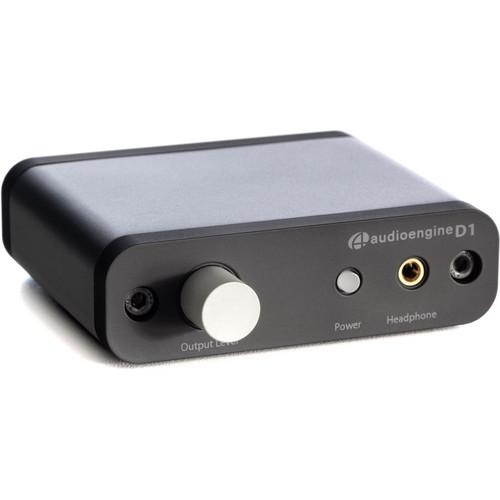

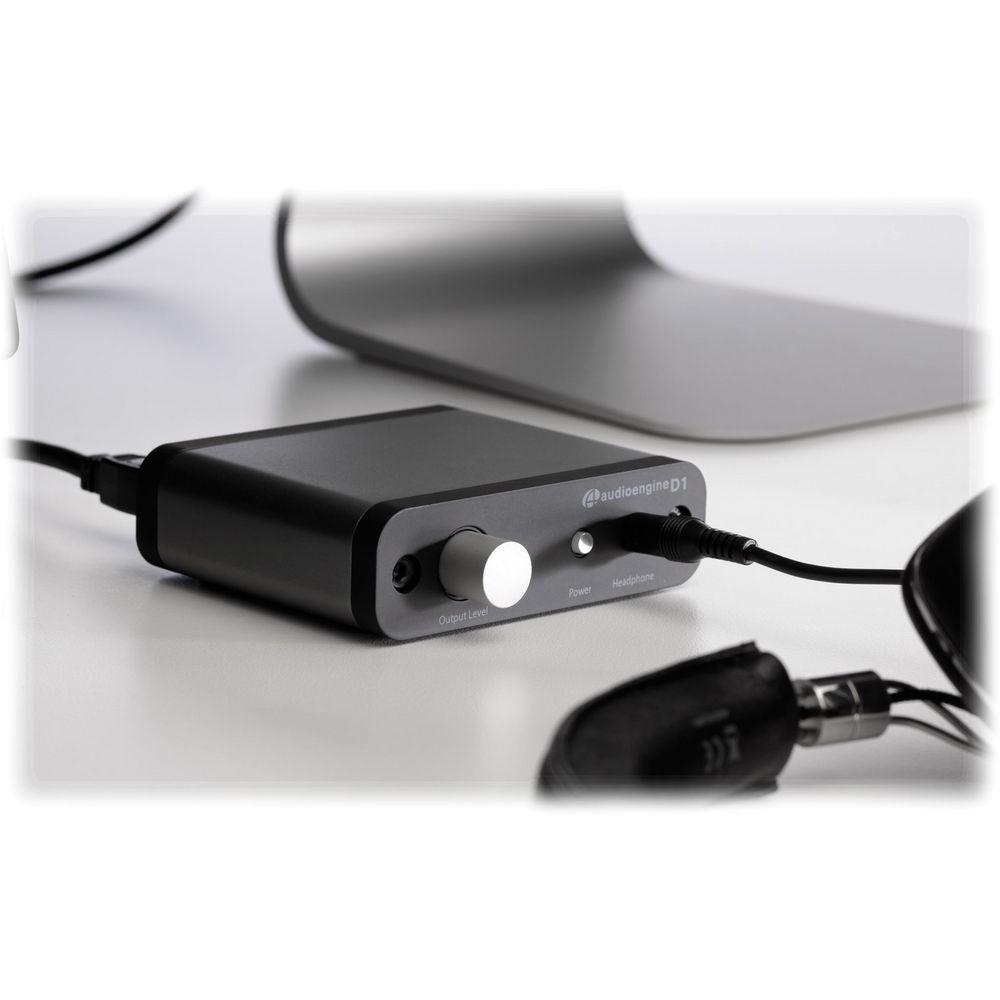

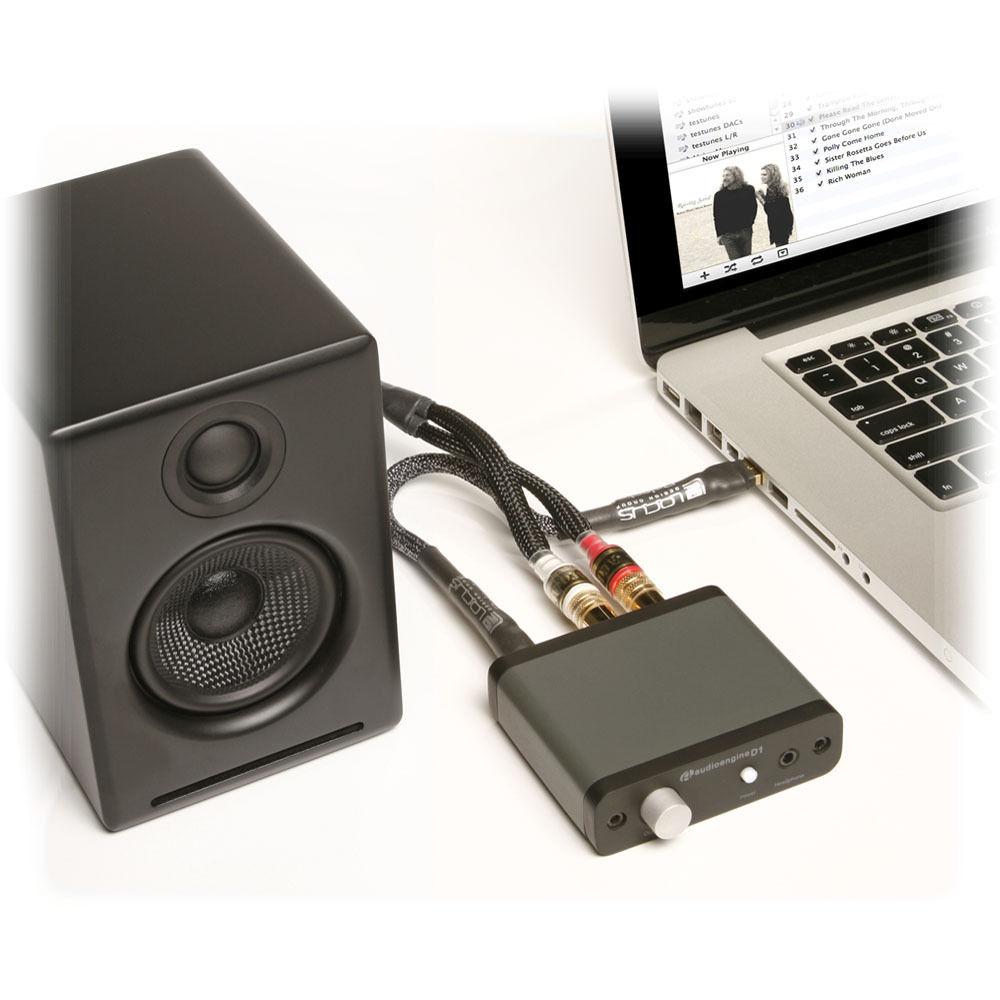

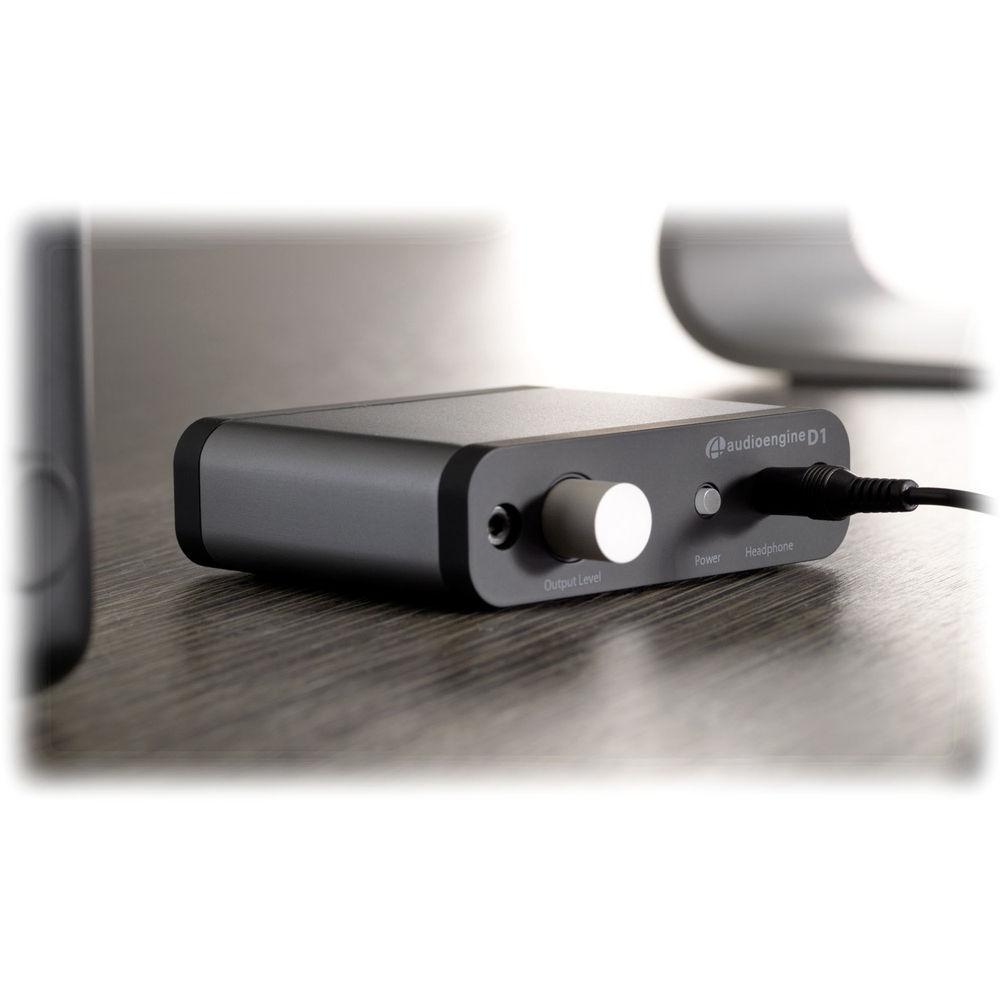

Product description The D1 by Audioengine is a 24-bit 192 kHz audio interface with a built-in digital-to-analog converter. Offering both USB and optical inputs, the D1 is ideal for upgrading the sound of your computer as well as your TV, Apple TV, DVD/Blu-ray player and more. The D1 is USB powered and features a built-in headphone amp making it a great solution as a portable headphone preamp as well. It is both Mac and PC compatible and offers simple, plug and play compatibility via USB with no drivers required. - Features a 24-bit 192 kHz digital-to-analog converter for high-quality digital audio output
- Built-in headphone amp provides enhanced output for your computer or portable audio device
- USB powered, Mac or PC plug and play compatibility with no drivers to install
- USB and optical S/PDIF inputs provide versatile digital input options
- HD audio with low jitter using the AK4396 digital audio converter
UPC: 819955250039 In the Box Audioengine D1 24-Bit Digital to Analog Converter USB Cable 2 ft (0.6m) Microfiber Product Bag Limited 3 Year Warranty Manual PDF 666.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audioengine D1 24-Bit Digital to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioengine D1 Specs | Type | Digital to analog conversion: dual mode USB and Optical (SPDIF) | | Inputs | USB
Optical (SPDIF) | | Outputs | RCA stereo
3.5 mm headphone | | D/A Converter | AKM4396 | | Receiver | Optical: CS8416 | | USB | Controller: TI1020B
Type: 1.1 or above | | Full-Scale Output | 2.0V RMS (RCA and headphone) | | Output Impedance | 47 ohms RCA
10 ohms headphone | | Power Source | USB 5V | | Power Requirements | 200 mA | | USB Power Filtering | 2-stage redundant regulation | | Signal to Noise Ratio | >110dB | | THD & Noise | <0.002% | | Crosstalk | <-85dB | | Frequency Response | 10 Hz to 25 kHz +/- 0.5 dB | | Input Bit Depth | Up to 24 bits | | Input Data Rate | Up to 192 KS/s (optical), 96 KS/s (USB) | | Environmental | Operating temperature: 32 to 95 °F (0 to 35 °C)
Non-operating temperature: -4 to 113 °F (-20 to 45°C)
Relative humidity: 5% to 95% non-condensing | | Dimensions | 3.5 x 4 x 1" (8.89 x 10.16 x 2.54 cm) | | Weight | < 1 lb (0.5 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 11.0 x 7.2 x 2.4" |
