User Manual for Audioengine D2 24-bit Wireless Digital-to-Analog Converter Click to enlarge the picture
Contents of the user manual for the Audioengine D2 24-bit Wireless Digital-to-Analog Converter
- Product category: Wireless A/V Transmitters & Receivers Audioengine
- Brand: Audioengine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audioengine Wireless A/V Transmitters & Receivers
 |
User manual for the Audioengine D2 24-bit Wireless Digital-to-Analog Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audioengine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audioengine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audioengine product will considerably shorten its lifespan!
|

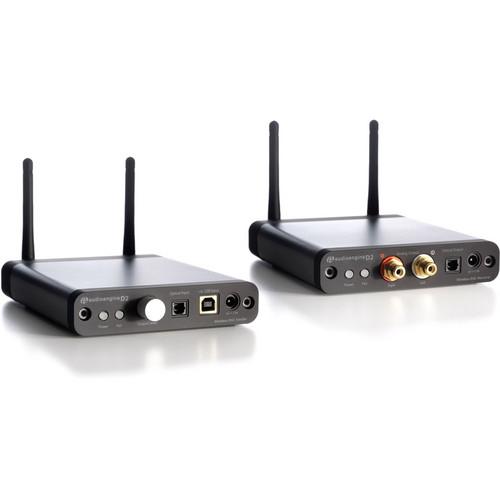

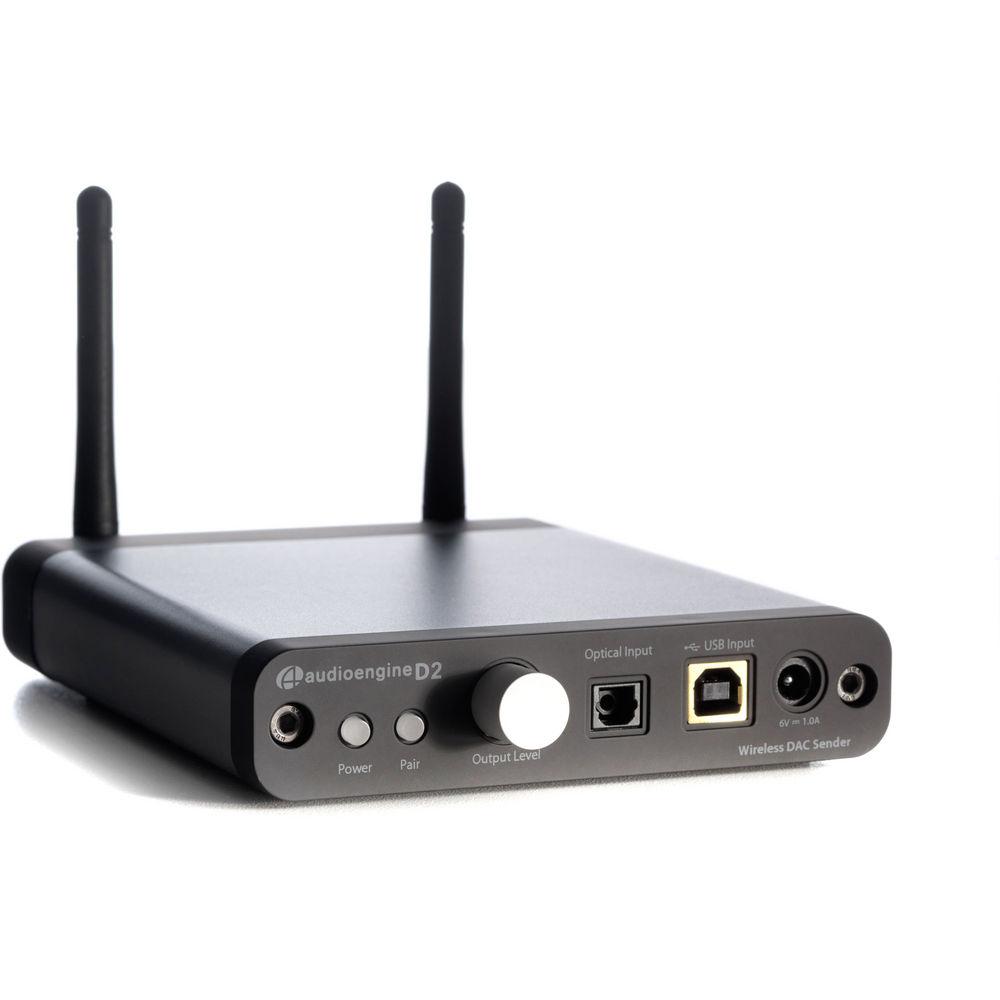

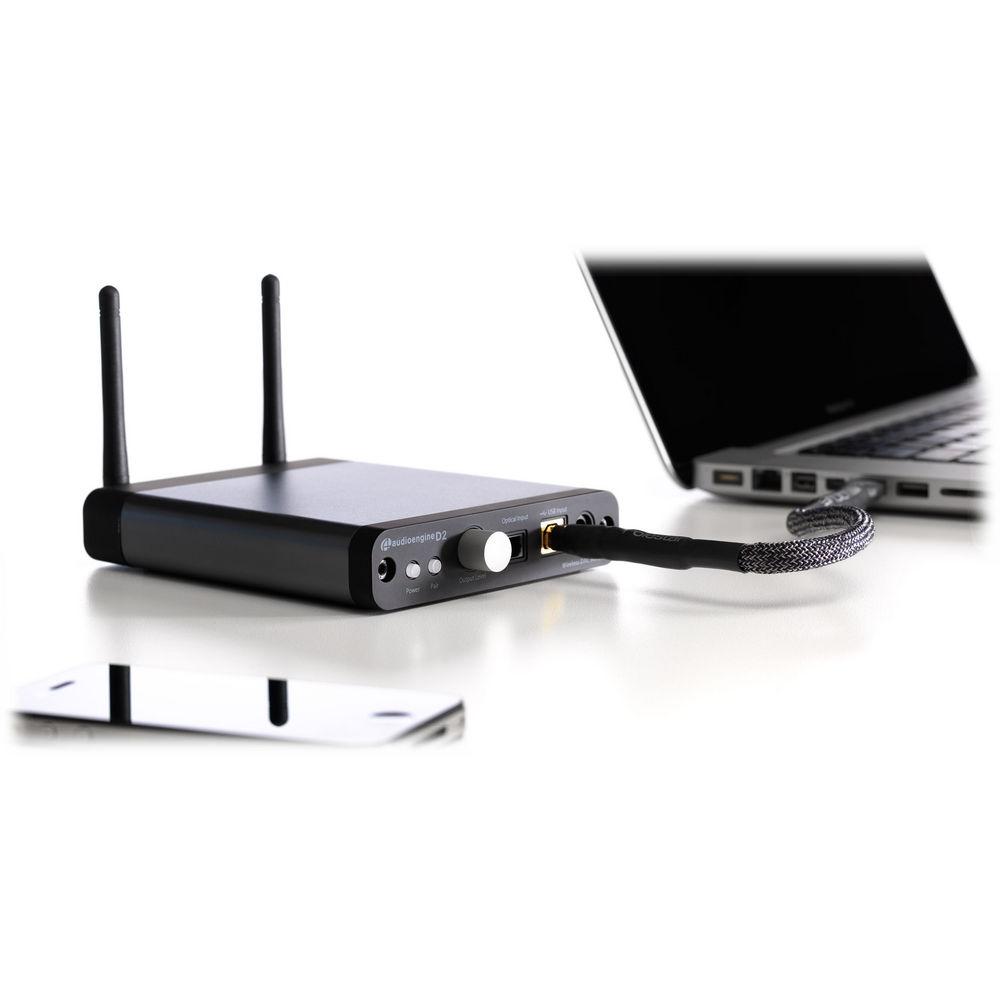

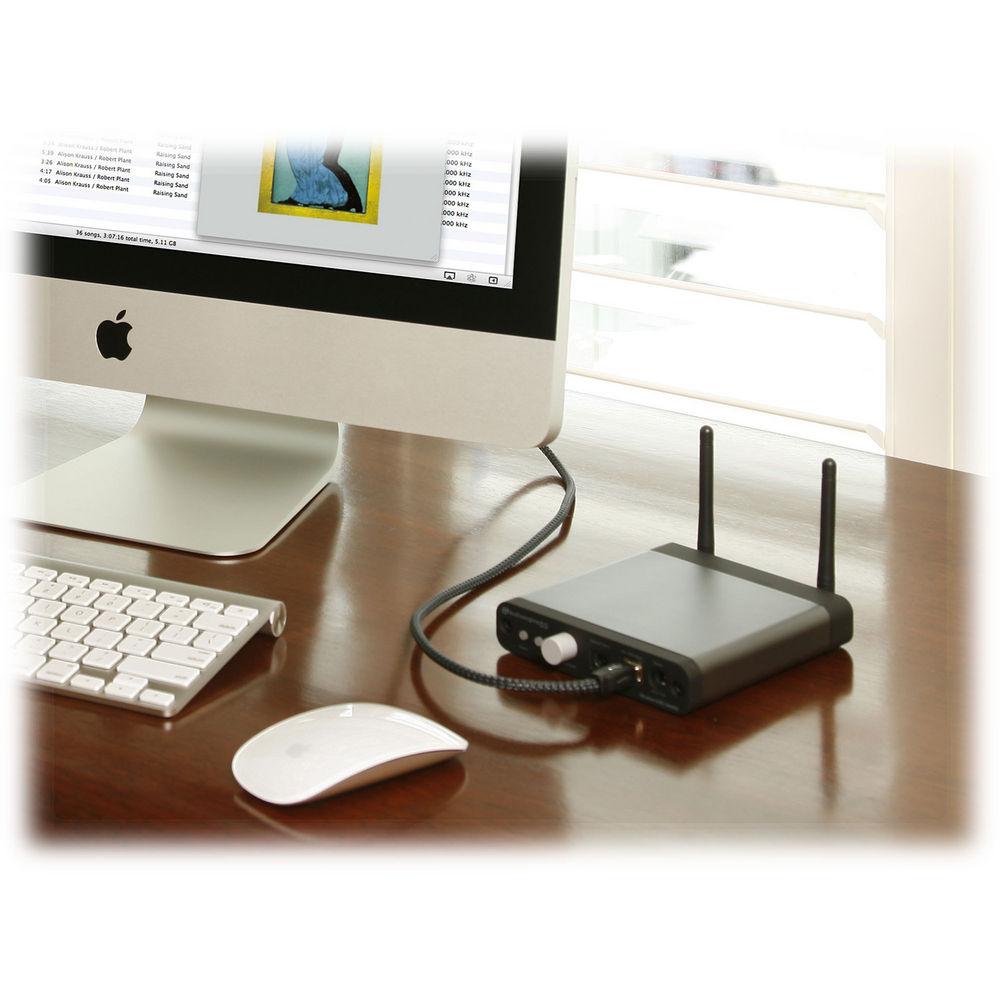

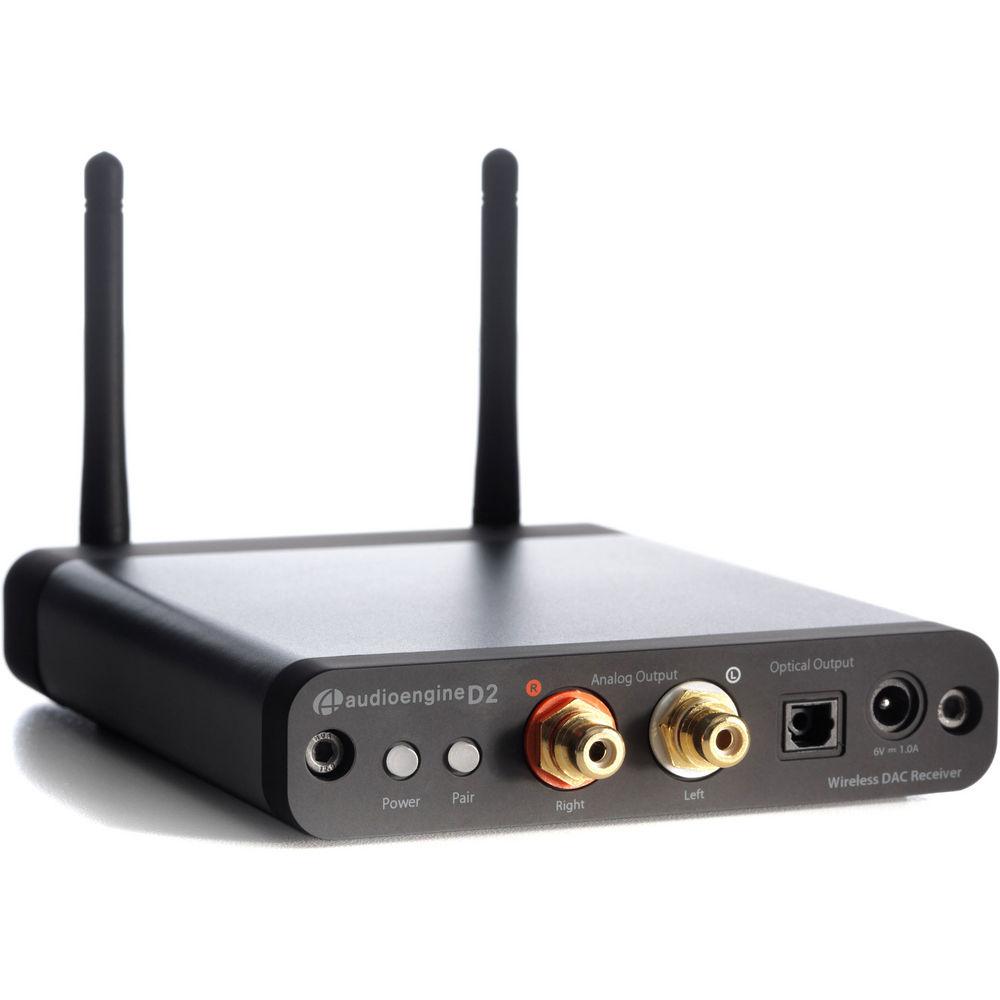

Product description The Audioengine D2 24-bit Wireless Digital-to-Analog Converter lets you stream wireless HD audio from your computer or other device with optical outputs, to any music system that's independent of your WiFi network. The D2 Sender features USB and optical SPDIF inputs. The sender takes the signal and can send it over 100 ft, wirelessly, to the D2 Receiver. The receiver features both digital optical SPDIF and analog RCA stereo outputs that you can hook up to your music system for streaming HD audio wirelessly. Plus, the high-performance digital-to-analog converter (DAC) ensures that your music is crystal clear and unaffected by the transmission from computer or other device to music system. The system also affords the isolation benefits of wireless. Setup is fast and simple, with no software to install and free from the frustration of trying to connect to your home WiFi network. - Wireless bit-perfect 24/96 digital-to-analog converter
- Mac or PC plug-and-play connectivity with no drivers or network setup
- Precision receiver re-clocking for low jitter
- Optical and analog outputs
- Based on Burr-Brown PCM1792 DAC
- Works with any Mac computer, any PC computer, any TV with optical outputs, any product with optical outputs and a USB to SPDIF converter (use it with your favorite DAC)

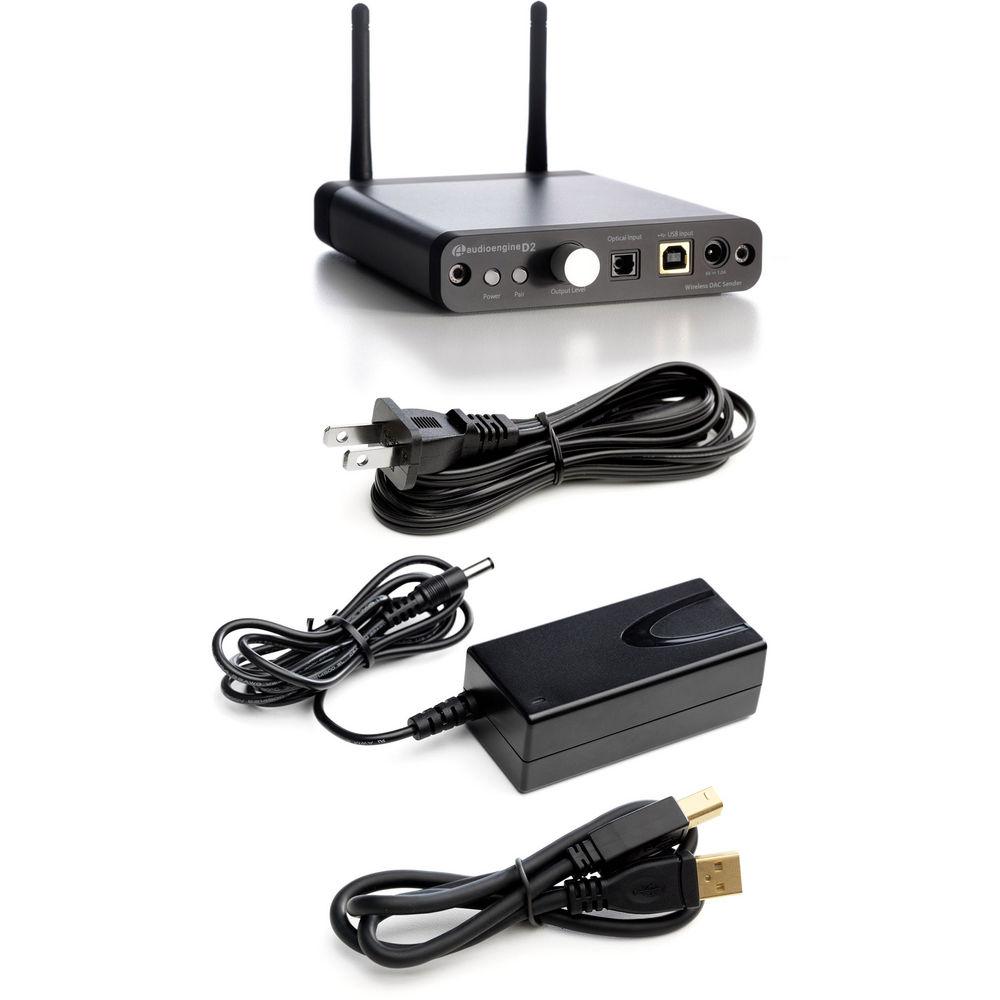

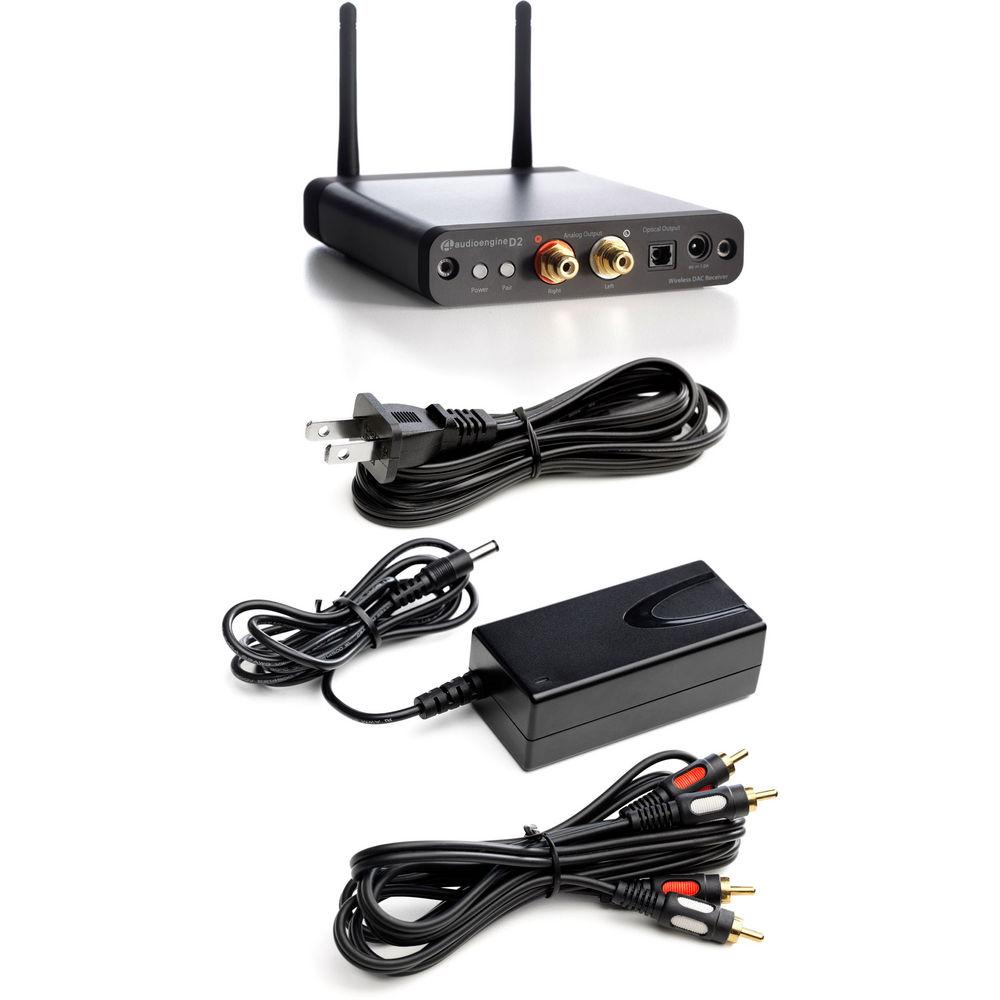

UPC: 819955250015 In the Box Audioengine D2 24-bit Wireless Digital-to-Analog Converter D2 Sender D2 Receiver USB Cable - 24" (61 cm) RCA Cable - 78" (198.1 cm) 2 x Power Supply 2 x Detachable Power Cord - 59" (150 cm) 2 x Microfiber Product Bag 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audioengine D2 24-bit Wireless Digital-to-Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioengine D2 Specs | Compatibility | Any Mac or PC computer USB to SPDIF convertor (use with your favorite DAC) Any TV or product with optical outputs | | DAC Type | Dual mode USB and optical (SPDIF) wireless DAC | | Inputs | USB x 1 Optical (SPDIF) x 1 | | Outputs | RCA L/R stereo x 1 Optical (SPDIF) x 1 | | Full-Scale Output | 2.0 V RMS (RCA) | | Output Impedance | 100 ohms | | Signal to Noise Ratio | >115 dB | | THD + N | <0.0015% | | Crosstalk | <-85 dB | | Frequency Response | 10 Hz - 30 kHz ±0.05 dB | | Input Bit Depth | Up to 24-bit | | Input Data Rate | Up to 192 KS/s (optical) Up to 96 KS/s (USB) | | Wireless Range | >100' (30.5 m) | | Supported Devices | Wireless Receivers Supported: Up to 3 (24/96 to each receiver) | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Non-Operating Temperature | -4 to 113°F (-20 to 45°C) | | Relative Humidity | 5 - 95% (non-condensing) | | USB Power Filtering | 3-stage redundant regulation | | Power Source | Sender: USB 5 V or included external supply Receiver: included external supply | | Power Requirements | Sender: 270 mA Receiver: 300 mA | | Dimensions (WxHxD) | 4.75 x 1.0 x 5.5" (12.1 x 2.54 x 14.0 cm) | | Shipping Weight | 4.0 lb (1.8 kg) | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 14.5 x 8.8 x 5.1" |
