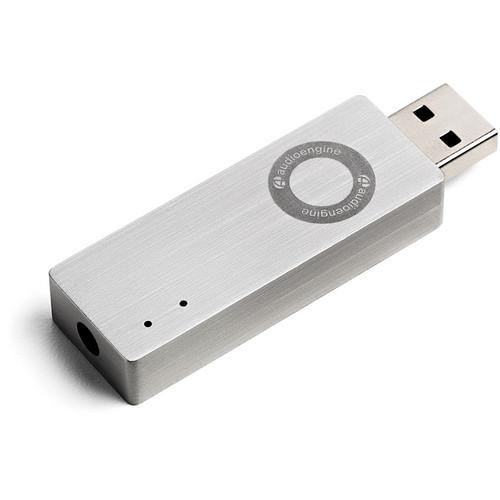

Product description Perfect Gifts for the Working Person: 4 Pocket-Sized DACs Read More The Audioengine D3 24-Bit Digital to Analog Converter is a plug and play USB thumb drive digital to analog converter intended for portable hi-fi listening. No drivers are required. The converter is based on the AK4396 DAC and housed within a metal injection molded aluminum case. It includes a headphone amplifier based on the LME49726 low-noise op-amp, and the volume can be controlled from your Mac or PC operating system.
The unit can read data off the computer at up to 192,000 samples per second and can resample for conversion at up to 24-bit 96 kHz resolution. A built-in LED glows blue whenever the sample rate is set to over 48 kHz. To minimize the effects of jitter, the unit utilizes two master clocks for asynchronous timing of data transfer and D/A conversion. The power supply within the USB converter features two stages of regulation to minimize the effects of bus power variations on the audio quality. - Internal Converter
- Utilizes AK4396 DAC chip to deliver high signal-to-noise ratio low distortion conversion at up to 24-bit 192 kHz resolution
- Headphone Amplifier
- Utilizes LME49726 low-noise opamp and 2V output to drive headphones with impedances as low as 12 Ω
- Power
- Draws power directly from the USB bus on your computer and utilizes two stages of redundant power regulation for better noise, ripple, isolation, and thermal performance
- Volume Control
- Uses the computer's operating system to digitally control volume

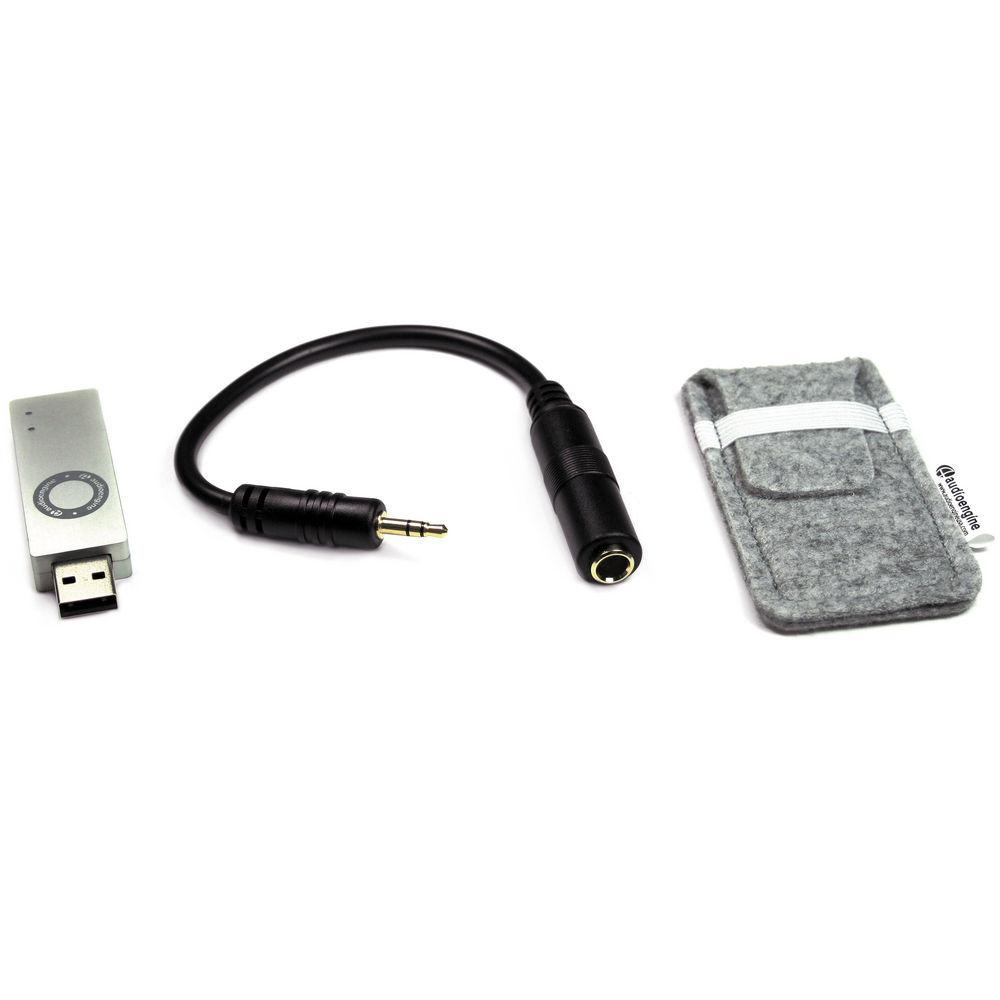

UPC: 819955270082 In the Box Audioengine D3 24-Bit USB Digital to Analog Converter Carrying Case 1/4" Headphone Adapter Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audioengine D3 24-Bit USB Digital to Analog Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioengine D3 Specs | Full-Scale Output | 2.0 V RMS | | Frequency Response | 10 to 25,000 Hz (± 0.5 dB) | | SNR | DC to 20,000 Hz: 110 dB | | THD + N | <0.002% | | Crosstalk | -110 dB | | USB Transfer Rates Supported | Asynchronous (dual clock) | | USB Device Support | Type 1.1 or above | | Input | USB audio | | Input Bit Depth | Up to 24 bits (up-sampled) | | Input Data Rate | Up to 192,000 samples per second (96,000 samples per second native)
192 kHz files are down-sampled to 96 kHz at conversion stage | | Output | Analog audio mini-jack | | Output Impedance | 10 Ω | | Headphone Impedance | 12 to 10,000 Ω | | Headphone Amplifier | LME49726 | | D/A Converter | AKM4396 | | Controller | USB: TI1020B | | Power Requirement | USB 5 VDC at 200 mA | | USB Power Filtering | 2-stage redundant regulation | | Operating Temperature | 32 to 95° F (0 to 35° C) | | Non-Operating Temperature | -4 to 113° F (-20 to 45° C) | | Relative Humidity | 5 to 95% non-condensing | | Dimensions | 0.74 x 0.47 x 0.23" (19 x 12 x 6.0 mm) | | Weight | 0.5 lb (0.2 kg) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.5 x 5.5 x 1.4" |
