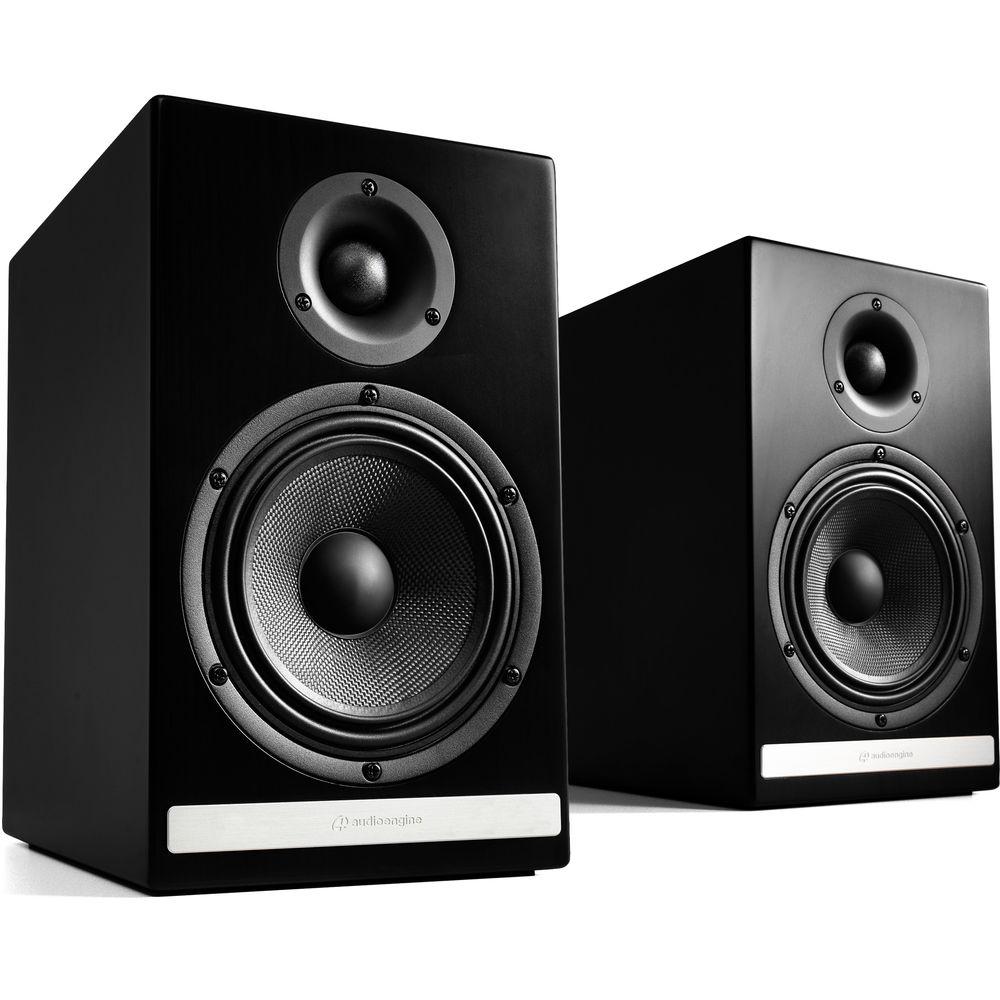

Product description Enjoy your audio with this pair of satin black Audioengine HDP6 2-Way Bookshelf Speakers. They can handle 10 to 150W of power per channel and are equipped with a 5.5" Kevlar woofer and a 1" silk dome tweeter. These speakers are wall- or ceiling-mountable via 1/4" threaded inserts on the rear and bottom panels. - Ported Design
- The slotted rear bass venting ports are designed to eliminate wave turbulence, transitioning the low-frequency energy from the speaker cabinet into your room.
- Wall or Ceiling Mountable

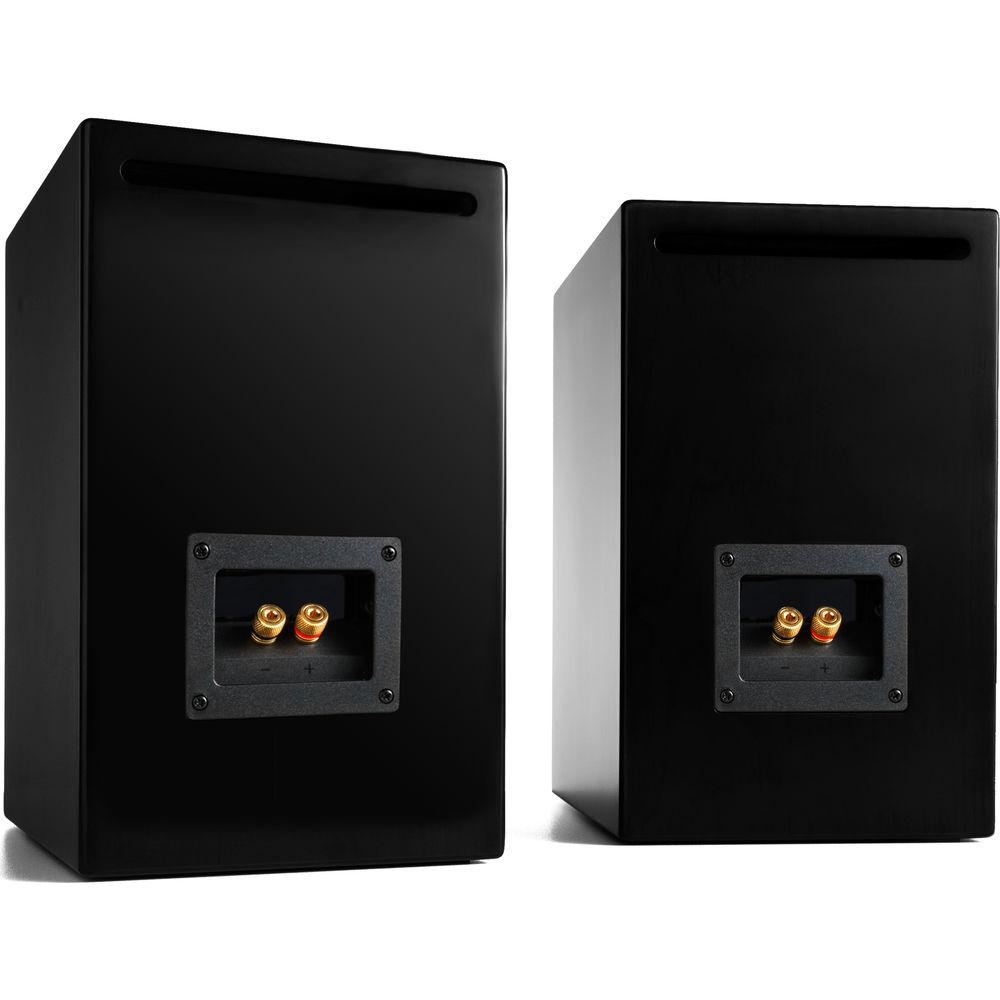

- HDP6 speakers include two standard 1/4" threaded inserts on the rear panel and another insert on the bottom of each HDP6 cabinet for attaching a speaker mount or bracket.
- Driver Design
- Audioengine uses ferrofluid-cooled silk dome tweeters with neodymium magnets. Silk tweeters are fashioned to hold up well under high power, and the edge-driven design provides a smooth response. The woofers are Kevlar-woven glass-aramid composite with rubber surrounds. Kevlar is strong, which means the woofer retains its shape when being driven at high levels. The HDP6 woofers are housed in cast-aluminum frames for enhanced rigidity and heat dispersion.
- Cabinet Design
- To minimize unwanted resonances and distortion, Audioengine uses 3/4"-thick MDF walls with internal bracing. Internal sound-damping material is used to reduce unwanted sound reflections inside the cabinet.
- Detachable Grilles
- The HDP6 includes detachable grilles that are firmly held in place with hidden neodymium magnets for a clean look.
- Magnetic Shielding
- Both drivers are magnetically shielded to allow you to place the speakers within a few inches of a video monitor. This shielding also offers protection for hard-drive-based digital music players.
UPC: 852225007025 In the Box Audioengine HDP6 2-Way Bookshelf Speakers (Pair, Satin Black) 2 x Removable Grilles Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audioengine HDP6 2-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioengine HDP6 Specs Frequency Response | 50 Hz to 22 kHz, ± 1.5 dB | Sensitivity | 88 dB (2.83 V @ 1 m) | Power Handling | 10 to 150 W per channel | Nominal Impedance | 4 Ohms | Crossover Frequency | 2.8 kHz | High Frequency Driver | 1" (2.5 cm) silk dome tweeter | Low Frequency Driver | 5.5" (14 cm) Kevlar woofer | Enclosure | 0.75" (1.9 cm) thick MDF (Medium Density Fiberboard) | Enclosure Type | Bass-reflex via rear-firing port | Inputs | Gold-plated 5-way binding posts | Mounting | 2x 0.25" (6.35 mm) threaded inserts on the rear panel 1x 0.25" (6.35 mm) threaded insert on the bottom | Finish | Satin black | Dimensions (W x H x D) | 7.25 x 11.75 x 10" (18.4 x 29.8 x 25.4 cm), each | Weight | 12.5 lb (5.7 kg), each | | Package Weight | 31.0 lb | Box Dimensions (LxWxH) | 23.0 x 17.0 x 13.75" |
