User Manual for AudioSource AD1002 2-Channel Digital Power Amplifier Click to enlarge the picture
Contents of the user manual for the AudioSource AD1002 2-Channel Digital Power Amplifier
- Product category: Power Amplifiers AudioSource
- Brand: AudioSource
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AudioSource Power Amplifiers
 |
User manual for the AudioSource AD1002 2-Channel Digital Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AudioSource product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AudioSource user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AudioSource product will considerably shorten its lifespan!
|

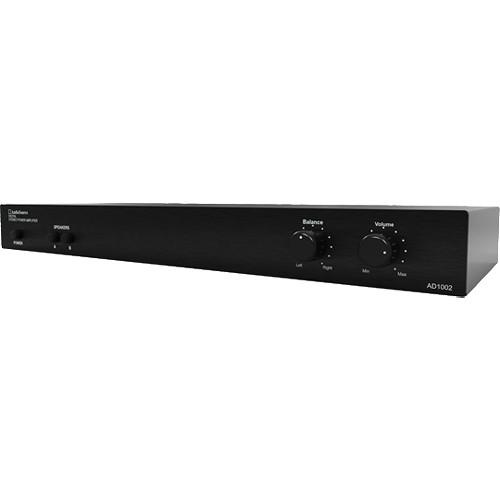

Product description Power your home or commercial audio distribution system with the Audiosource AD1002 2-Channel Digital Power Amplifier. It has a 100W maximum stereo power output at 8 ohms, and a 150W maximum stereo power output at 4 ohms. It features treble, bass, and balance controls with stereo RCA inputs and binding post speaker outputs. - Main/Interrupt priority input switching

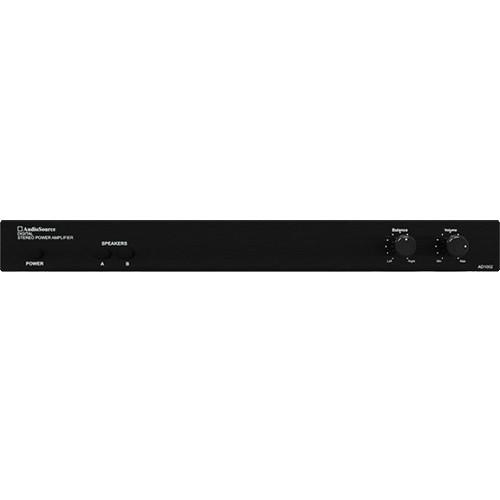

- Front panel balance and volume controls
- Signal sensing "Power On" and Trigger Mode
- Rear mounted treble and bass controls
UPC: 041087906564 In the Box AudioSource AD1002 2-Channel Digital Power Amplifier Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AudioSource AD1002 2-Channel Digital Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioSource AD1002 Specs | Power Rating | Stereo, 8 ohms: 50 W per channel, <1% THD+N
Stereo, 4 ohms: 75 W per channel, <1% THD+N
Bridged Mono, 8 ohms: 160 W, 1 kHz, <1% THD+N | | Input Sensitivity | 700 mV input for rated 50 W output into 8 ohms | | Channel Separation @ 1 kHz | 65 dB, referred to 50 W output into 8 ohms | | Frequency Response | 10 Hz to 30 kHz, -2 dB to 1 dB | | Signal-to-Noise Ratio | 100 dB below 50 W output into 8 ohms with 20 kHz Lowpass filter | | Input Connections | 2 x RCA stereo
1 x 1/8" (3.5 mm) 12 V trigger | | Output Connectors | 2 x Binding post sets
1 x 1/8" (3.5 mm) 12 V trigger | | Controls Front Panel | 1 x Power button
1 x A/B Speaker button pair
1 x Balance knob
1 x Volume knob | | Controls (Rear) | 1 x Bass adjustment
1 x Treble adjustment
1 x Mono select switch
1 x Auto on select switch | | Sound Control Feature | Bass and Treble: ±12 dB @ 100 Hz and 10 kHz | | Power Consumption | 200 W maximum | | Power Requirements | 115 VAC | | Dimensions (W x H x D) | 16.90 x 2.15 x 7.65" (43.00 x 5.50 x 19.40 cm) | | Weight | 4.7 lb (2.2 kg) | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 20.2 x 9.7 x 4.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
