User Manual for AudioSource AD3002 2-Channel 150W Power Amplifier Click to enlarge the picture
Contents of the user manual for the AudioSource AD3002 2-Channel 150W Power Amplifier
- Product category: Amplifiers AudioSource
- Brand: AudioSource
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AudioSource Amplifiers
 |
User manual for the AudioSource AD3002 2-Channel 150W Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AudioSource product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AudioSource user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AudioSource product will considerably shorten its lifespan!
|
Product description Enjoy stereo sound with the AudioSource AD3002 2-Channel 150W Power Amplifier. It will produce up to 150W per channel at 8 Ohms and 275W per channel at 4 Ohms. Rear-mounted bass and treble controls plus front-mounted balance and volume controls give you the ability to fine-tune audio playback. The amplifier features two stereo RCA inputs with main/interrupt priority. The AD3002 also features A/B/A+B speaker switching capability. - Main/Interrupt priority input switching
- Auxiliary RCA line output
- Front-panel level and balance trim controls

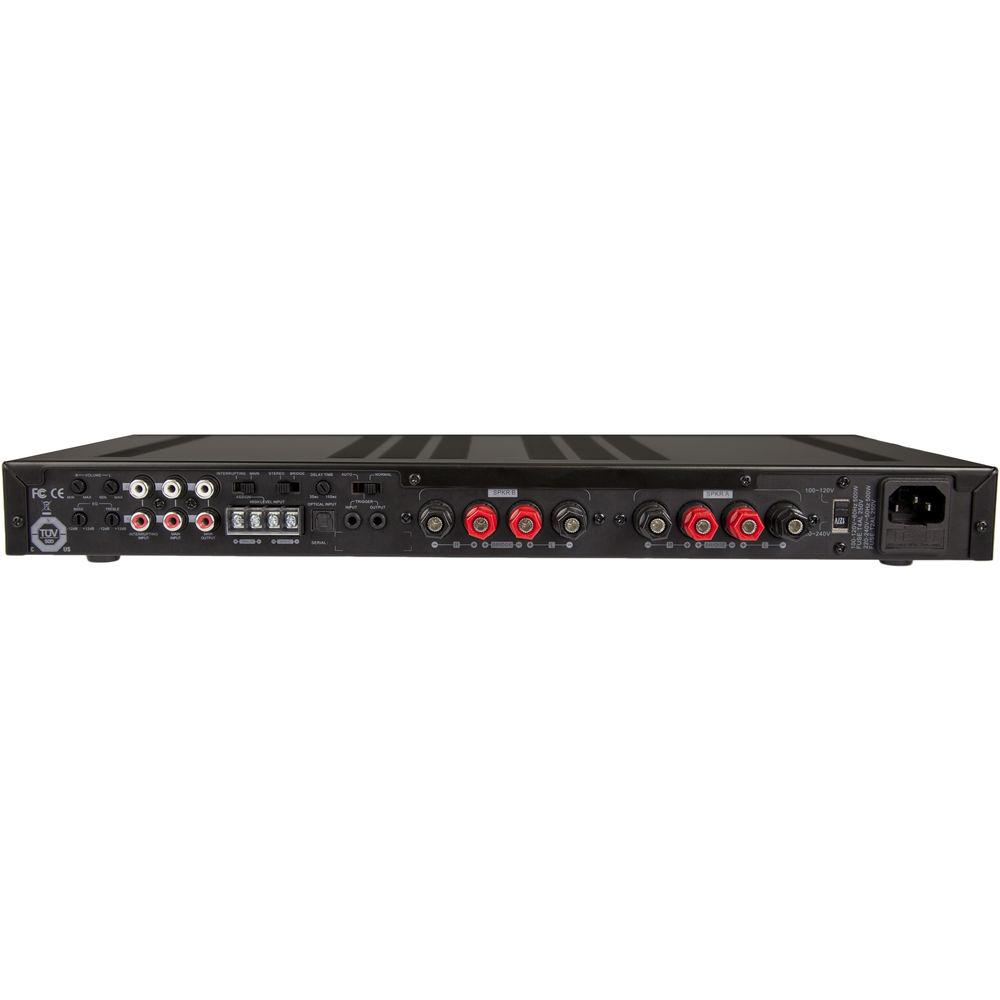

- Independent rear-mounted Main Level controls
- Speaker (high) level inputs
- Optical line input with PCM 2-channel decoding
- Multi-function IR remote control
- Signal-sensing "Power On" and Trigger mode
- Rear-mounted treble and bass controls

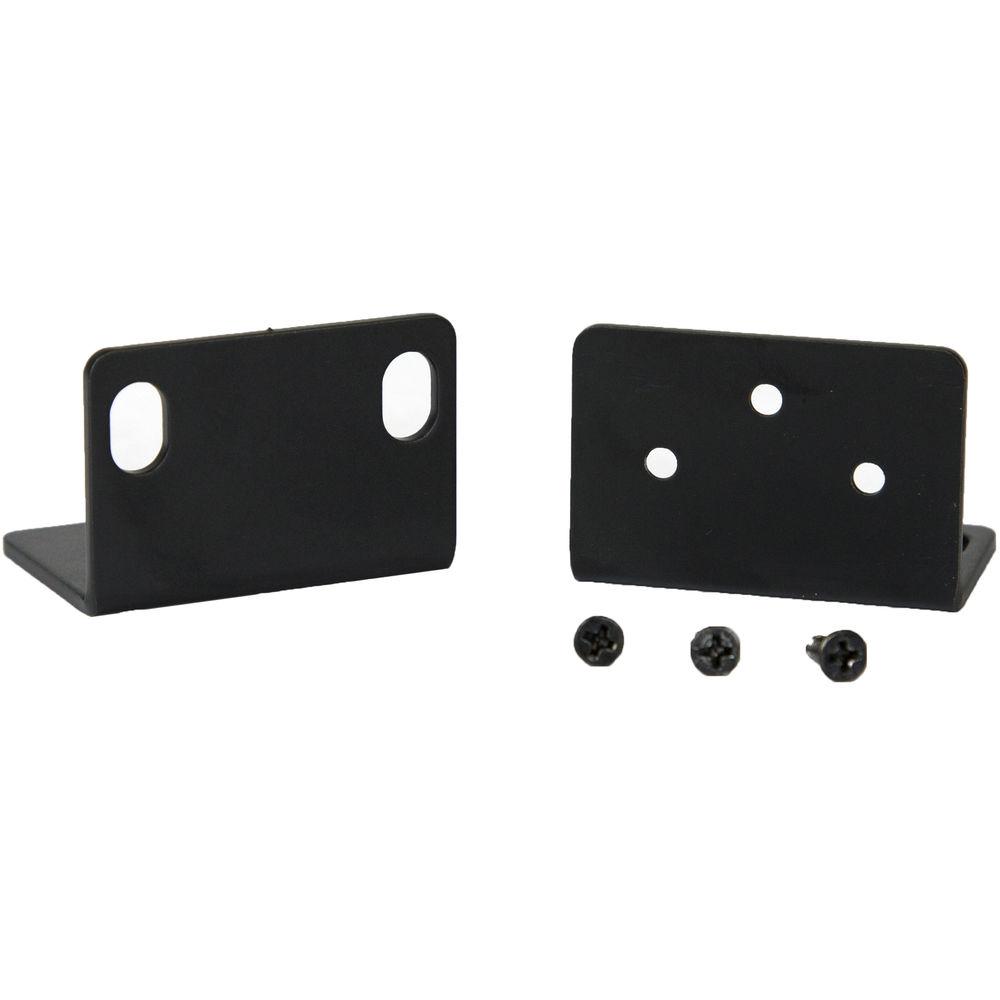

- Rack mountable with included rack ears
UPC: 041087906588 In the Box AudioSource AD3002 2-Channel 150W Power Amplifier IR Remote Control Rack Ears Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AudioSource AD3002 2-Channel 150W Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioSource AD3002 Specs | | | Number of Channels | 2 | | Power Rating | Stereo, 8 Ohm: 150 W per channel, <0.2% THD+N
Stereo, 4 Ohm: 275 W per channel, <0.2% THD+N
Bridged Mono, 8 Ohm: 600 W, 1 kHz, <0.2% THD+N | | Frequency Response | 20 Hz to 20 kHz | | Signal to Noise Ratio | -100 dBr referenced to 0.2% THD+N @ 8 Ohms with 20 kHz low-pass filter | | Channel Separation | 60 dB | | Input Sensitivity | Variable, 350 mV to 2.8 V for rated power into 8 Ohms | | Audio Controls | Bass/Treble: ±12dB @ 100 Hz and 10 kHz | | | | Input | 1 x Optical TOSLINK line
1 x Main stereo RCA pair
1 x Interrupting stereo RCA pair
1 x Speaker (high) level input pair | | Output | 1 x Main stereo RCA pair | | Speaker Connectors | 4 x Binding post pairs (A/B) | | | | Power Requirements | Not specified by manufacturer | | Power Consumption | Max: 750 W | | Dimensions (W x H x D) | 16.7 x 2 x 10" (425 x 51 x 252 mm) with protrusions | | Weight | 8 lb (3.6 kg) | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 20.1 x 13.5 x 5.9" |
