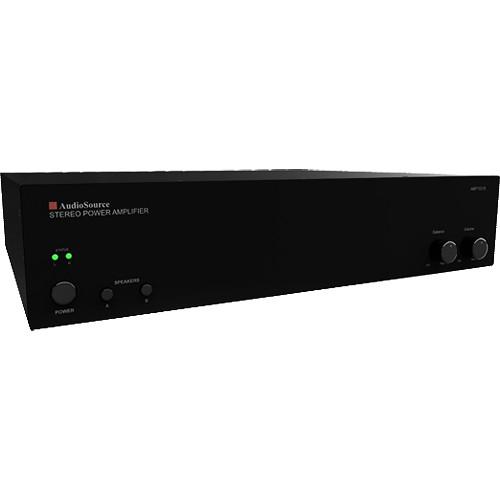

User Manual for AudioSource AMP102VS 55-Watt 2-Channel Amplifier Click to enlarge the picture
Contents of the user manual for the AudioSource AMP102VS 55-Watt 2-Channel Amplifier
- Product category: Amplifiers AudioSource
- Brand: AudioSource
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AudioSource Amplifiers
 |
User manual for the AudioSource AMP102VS 55-Watt 2-Channel Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AudioSource product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AudioSource user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AudioSource product will considerably shorten its lifespan!
|

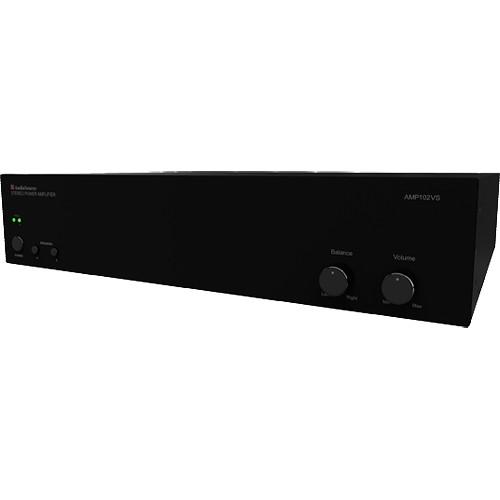

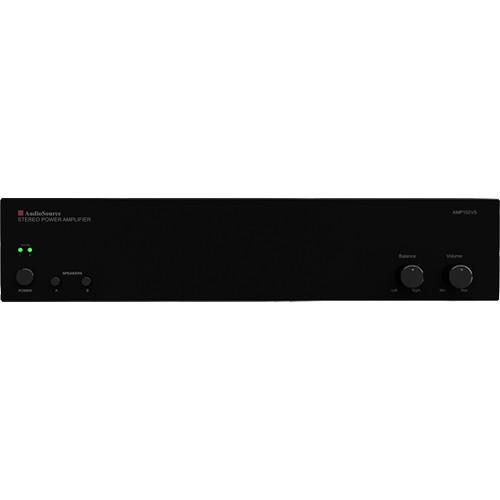

Product description Enjoy stereo sound with the AudioSource AMP102VS 55-Watt 2-Channel Amplifier. It will produce up to 55W per channel at 8 ohms and 75W per channel at 4 ohms. Rear-mounted bass and treble controls plus front-mounted balance and volume controls give you the ability to fine-tune audio playback. The amplifier features two stereo RCA inputs with main/interrupt priority. It has A/B/A+B speaker switching capability. - Main/interrupt priority input switching
- Speaker A/B/A+B switching
- Front panel balance and volume controls
- Signal sensing "Power On" and Trigger Mode
- Rear mounted treble and bass controls
UPC: 041087906694 In the Box AudioSource AMP102VS 55-Watt 2-Channel Amplifier Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AudioSource AMP102VS 55-Watt 2-Channel Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudioSource AMP102VS Specs | | | Number of Channels | 2 | | Power Rating | Stereo, 8 Ohm: 55 W per channel, <0.2% THD+N
Stereo, 4 Ohm: 75 W per channel, <0.2% THD+N
Bridged Mono, 8 Ohm: 60 W, 1 kHz, <0.2% THD+N | | Frequency Response | 10 Hz to 50 kHz, +0 dB / -3 dB | | Signal to Noise Ratio | 100 dB below 50W output into 8 ohms | | Channel Separation | 70 dB | | Input Sensitivity | 700 mV input for rated 50 W output into 8 ohms | | Audio Controls | Bass/Treble: ±12dB @ 100 Hz and 10 kHz | | | | Input | 1 x Stereo RCA main
1 x Stereo RCA interrupting
1 x 1/8" (3.5 mm) trigger | | Output | 1 x Stereo RCA main
1 x 1/8" (3.5 mm) trigger
2 x Binding post L/R pairs (A/B) | | | | Power Requirements | 115 VAC | | Power Consumption | 500 W maximum | | Dimensions (W x H x D) | 16.50 x 3.80 x 8.25" (41.90 x 9.65 x 21.00 cm) without protrusions | | Weight | 14.0 lb (6.4 kg) | | | | Package Weight | 17.4 lb | | Box Dimensions (LxWxH) | 19.6 x 12.0 x 6.7" |
