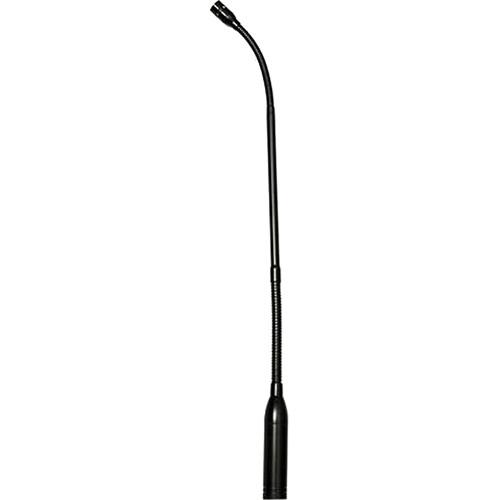

User Manual for Audix ADX12 Miniature Gooseneck Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audix ADX12 Miniature Gooseneck Cardioid Condenser
- Product category: Gooseneck Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Gooseneck Microphones
|
User manual for the Audix ADX12 Miniature Gooseneck Cardioid Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description Great for presentation, conference, board meeting, court proceeding, or teleconferencing applications, the Audix ADX12 is a 16" miniature gooseneck cardioid condenser microphone designed to accurately capture speech from a comfortable distance. It features a uniformly controlled cardioid polar pattern that minimizes unwanted ambient noise and feedback in a room or on stage, as well as a wide frequency response of 40 Hz to 18 kHz for a clear and natural sound with fast transient response.The ADX12 is equipped with integrated preamp circuitry built into its base and requires 18 to 52V phantom power to operate. If necessary, the capsule is easily changed by screwing it on and off, allowing you to swap the included cardioid capsule with a hypercardioid capsule (available separately) if a more tightly focused audio pattern is desired. The mic can be permanently mounted on a podium or conference table using the included flange table mount, or simply used on a conventional mic stand.Made of machined aluminum, the ADX12 is constructed with two flexible gooseneck sections which allow for precise positioning of the capsule in front of the speaker's mouth. The microphone includes a foam windscreen to help minimize pops, plosives, and breath noises. - Key Features
-
- Gooseneck microphone for presentation, meeting, and teleconferencing applications
- Natural and accurate sound
- Cardioid polar pattern
- Length: 16"
- Interchangeable capsule
- XLR output connector
- Operates on 18 to 52V phantom power
- Low-profile design
- Dual gooseneck sections allow for precise positioning
- Low-noise electronics
- Easy to install
- Made of machined aluminum
- Non-reflective, matte-black finish
- TM1218 flange table mount included
- WS1219 external foam windscreen included
- Designed, assembled, manufactured, and tested in the USA
UPC: 687471061312 In the Box Audix ADX12 Miniature Gooseneck Cardioid Condenser Microphone (16", Black) TM1218 Flange Table Mount WS1219 External Foam Windscreen Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix ADX12 Miniature Gooseneck Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix ADX12 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 0.47" / 12 mm | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 18 kHz | | Signal to Noise Ratio | 66 dB | | Equivalent Noise Level | 28 dB A-Weighted | | Maximum SPL | 120 dB SPL | | Pad | None | | Impedance | 150 Ohms | | Sensitivity | 24 mV/Pa at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 18 to 52 V | | Length | 16" / 406.40 mm | | Weight | 4 oz / 113 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 18.6 x 3.4 x 3.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
