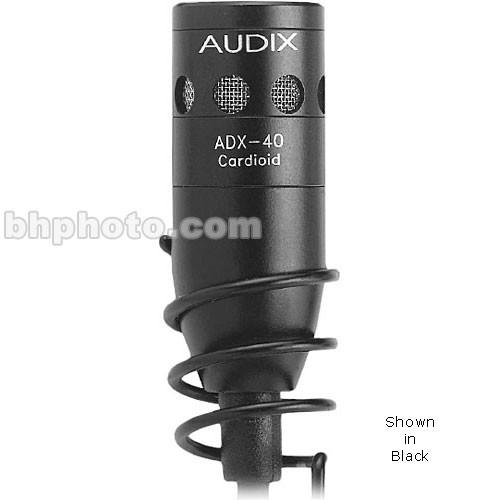

User Manual for Audix ADX40 Cardioid Overhead Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audix ADX40 Cardioid Overhead Condenser Microphone
- Product category: Hanging Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Hanging Microphones
|
User manual for the Audix ADX40 Cardioid Overhead Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The Audix ADX40 overhead microphone is a professional solution for capturing stage performances, choirs, live bands, worship gatherings, presentations, etc. The miniature pre-polarized condenser capsule features a modular element design. This model ships with a cardioid element although hypercardioid and omnidirectional are available as options.The cardioid polar pattern is ideal for general sound reinforcement applications, as it provides a generous pick up area while minimizing off-axis noise and feedback. The wide frequency response and low signal-to-noise ratio ensure accurate signal reproduction throughout the entire range. The ADX40 is designed to hang from an overhead position and includes the MC40 wire hanger, 30 foot cable and APS910 preamplifier / power supply. - Interchangeable Elements
- The ADX40 features a pre-polarized condenser capsule with a modular element design. Cardioid, hypercardioid and omnidirectional capsule are interchangeable for added flexibility.
- Cardioid Polar Pattern
- This model ships with a cardioid element for general sound reinforcement applications.
- Wide Frequency Response
- The wide, linear frequency response provides accurate signal reproduction throughout the spectrum.
- Miniature Profile
- The miniature profile allows the ADX40 to remain easily concealed from view.
- External Preamplifier / Power Module
- The APS910 provides a standard XLR output, preamplifier and 9 to 52V phantom power from an external source.
UPC: 687471061114 In the Box Audix ADX40 Cardioid Overhead Condenser Microphone (White) ADX40 Cardioid Capsule APS910 Cylindrical Phantom Power Supply / Preamplifier MC40 Wire Hanger WS20 External Foam Windscreen 30 Foot (9.1 Meter) Cable Vinyl Case 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix ADX40 Cardioid Overhead Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix ADX40 Specs | Transducer | Condenser (Pre-polzarized) | | Polar Pattern | Cardioid | | Frequency Response | 40Hz to 20kHz | | Dynamic Range (Typical) | not specified by manufacturer | | Signal-to-Noise Ratio | 65dB | | Maximum Input Sound Level | 130dB | | Power Requirements | 9 to 52V Phantom Power | | Output Impedance | 250 ohms Balanced | | Output Connectors | 3-pin XLR from APS910 Phantom Power Preamplifier | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Capsule: 1.46 x .47" (37.2 x 12mm) (Length x Diameter)
Cable Length: 30' (9.1m) APS910 Power Supply: 3.39 x .75" (86.2 x 19mm) | | Weight | 4 oz (110 grams) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 8.8 x 4.3 x 2.7" |
