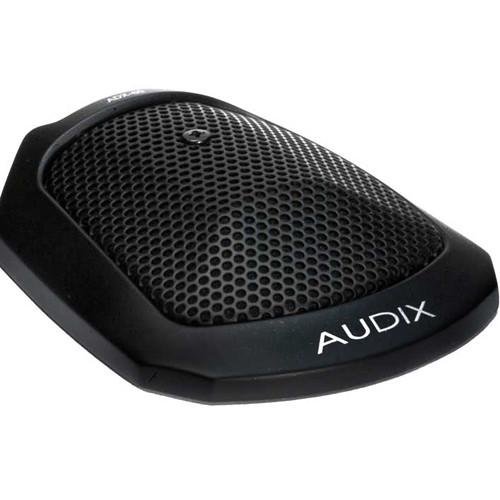

User Manual for Audix ADX60 - Cardioid Boundary Instrument and Area Microphone Click to enlarge the picture
Contents of the user manual for the Audix ADX60 - Cardioid Boundary Instrument
- Product category: Instrument Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Instrument Microphones
|
User manual for the Audix ADX60 - Cardioid Boundary Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The Audix ADX-60 is a versatile cardioid boundary microphone designed for general ambiance and instrument capturing. The microphone's frequency and sensitivity characteristics are more than suitable for capturing meetings, conferences and interviews as well as piano, kick drum and much more. The cardioid polar pattern minimizes residual off-axis surface born noise. The compact ADX60 delivers big sound reproduction and includes a 25-foot cable with APS10 phantom power supply. The ADX-60 is at home on stage, in conference rooms and in the recording studio. - Cardioid Polar Pattern
- The cardioid polar pattern effectively minimizes off-axis residual noise and vibration
- Slim Profile
- The low profile design is ideal for desk surface or instrument mounting in pianos and kick drums
- Optimized Frequency Response
- The tailored frequency response delivers accurate signal reproduction while minimizing noise
UPC: 687471061121 In the Box Audix ADX60 - Cardioid Boundary Instrument and Area Microphone APS910 Phantom Power Supply 15-Foot Shielded Cable with Switchcraft 3-pin Connection Vinyl Case 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix ADX60 - Cardioid Boundary Instrument and Area Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix ADX60 Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 50Hz - 18kHz | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | 65dB | | Maximum Input Sound Level | 130dB | | Power Requirements | 9 - 52V Phantom Power | | Output Impedance | 250 Ohms Balanced | | Output Connectors | Mini Switchcraft 3-pin (Standard 3-pin XLR on the included APS-910 power supply) | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Cable Length: 25' (7 m)
Microphone: 2.75 x 3.34" (70 x 85mm) (WxD) | | Weight | 5 oz (143g) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 8.7 x 4.3 x 2.4" |
