Audix AP41 Performance Series Single-Channel Guitar

Search your instruction manual in PDF to download

User Manual for Audix AP41 Performance Series Single-Channel Guitar Wireless System

Click to enlarge the picture
Audix AP41 Performance Series Single-Channel Guitar Wireless System Contents of the user manual for the Audix AP41 Performance Series Single-Channel Guitar
  • Product category: Wireless Systems Audix
  • Brand: Audix
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Audix Wireless Systems

User manual for the Audix AP41 Performance Series Single-Channel Guitar contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Audix product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!



Product description

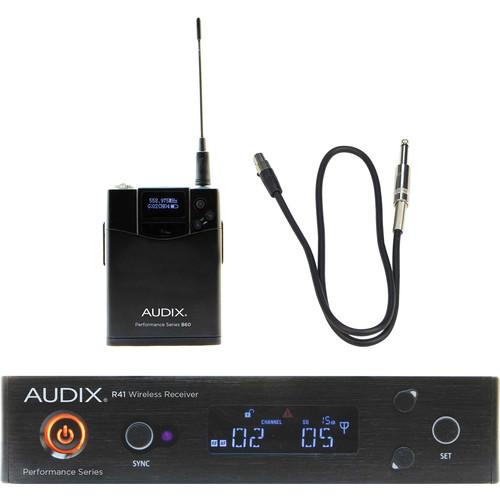

The AP41 Performance Series Guitar Wireless System from Audix includes the R41 1-channel diversity receiver and B60 bodypack transmitter with a 30" guitar cable. The R41 diversity receiver operates on a wide-spectrum frequency range of 522 to 554 MHz MHz and offers one-touch auto scan searches for clear channel. Thanks to the one-touch sync function, this receiver easily links to the B60 bodypack transmitter placed within 300'. Additionally, the bodypack transmitter can be connected to guitars and instruments using the included 3-pin mini XLR to 1/4" cable. This durable and low-profile aluminum bodypack can be securely clipped onto the guitar strap or clothing. The refined circuitry of the transmitter allows for precise and accurate reproduction of guitar and bass without compromise.
  • R41 Kit-A Performance Series Single-Channel UHF Diversity Receiver (A: 522 to 554 MHz) The Audix R41 Kit-A is a Performance Series single-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 522 to 554 MHz frequency band. Use one wireless microphone (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup. The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R41 Kit-A ships with two antennas, a carrying case, an audio cable, one power supply, and a rackmount kit.
    • Incorporate up to 16 systems to use 16 unique channels simultaneously
    • Single-channel receiver supports one wireless microphone
    • 32 MHz wide spectrum tuning
    • 106 pre-coordinated frequencies
    • High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
    • One-touch sync via infrared
    • One-touch scan eliminates inefficient manual tuning
    • Ground-lift switch helps eliminate ground loops or hum
    • Metal strain relief for power cable
    • Adjustable AF and RF level
    • Selectable lock function prevents the transmitter from being accidentally muted or powered off
  • B60 Performance Series Bodypack Transmitter (522 to 586 MHz) The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.
    • 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
    • Mini-XLR 3-pin connector for compatibility with a variety of microphones or guitar cables
    • Durable tour-worthy metal housing
    • High-contrast LCD shows group, channel, frequency, mic/line level, and battery status
    • Convenient top-panel soft mute button for quick on/off switching
    • Two supplied AA batteries provide up to 14 hours of run time
    • Selectable 10/30 mW RF power output
    • Choose mic or line level
    • Four selectable gain settings—0 dB, -6 dB, -12 dB, and -24 dB
    • Lock function deactivates the power button, RF output control, and level adjustment
    UPC: 687471871003
In the Box Bundle Items R41 Kit-A Performance Series Single-Channel UHF Diversity Receiver (A: 522 to 554 MHz) ucvabsqevxqcafczbscvwxeytqdszeztwf
  • Carrying Case
  • 2 x Antennas
  • Audio Cable
  • Power Supply
  • Rackmount Kit
  • Limited 1-Year Warranty
B60 Performance Series Bodypack Transmitter (522 to 586 MHz) ucvabsqevxqcafczbscvwxeytqdszeztwf
  • 2 x AA Batteries
  • Limited 1-Year Warranty

Also Includes

  • 30" Guitar Cable
  • Limited 1-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Audix AP41 Performance Series Single-Channel Guitar Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • R41 Kit-A Performance Series Single-Channel UHF Diversity Receiver (A: 522 to 554 MHz)
    Frequency Band 522 to 554 MHz
    Bandwidth 32 MHz
    # Of Simultaneous Systems Up to 16
    Switchable Frequencies 106 pre-coordinated frequencies
    Wireless Range Up to 300' / 91 m
    Antenna Connector 2 x BNC (8 VDC, 150 mA)
    Outputs 1 x XLR 3-pin balanced
    1 x 1/4" TS unbalanced
    Audio Output Level XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
    1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
    Audio Level Control -12 to +9 dB in 3 dB steps
    Frequency Response 45 Hz to 18 kHz
    Compander 2:1
    Pilot Tone 32 kHz
    Receiving System Single tuner, antenna diversity
    Signal to Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
    Total Harmonic Distortion (THD) ≤0.7% (33 kHz deviation at 1 kHz)
    Sensitivity 5 dB
