Audix AP41 Performance Series Single-Channel Instrument

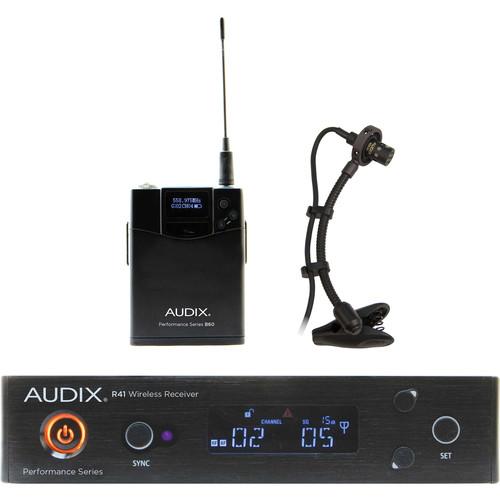

User Manual for Audix AP41 Performance Series Single-Channel Instrument Wireless System with ADX20i Clip-On Condenser Microphone

• Product category: Wireless Systems Audix
• Brand: Audix
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audix Wireless Systems

Product description

• R41 Kit-B Performance Series Single-Channel UHF Diversity Receiver (B: 554 to 586 MHz) The Audix R41 Kit-B is a Performance Series single-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 554 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup. The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R41 Kit-B ships with two antennas, a carrying case, an audio cable, one power supply, and a rackmount kit.
  • Incorporate up to 16 systems to use 16 unique channels simultaneously
  • Single-channel receiver supports one wireless microphone
  • 32 MHz wide spectrum tuning
  • 106 pre-coordinated frequencies
  • High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
  • One-touch sync via infrared
  • One-touch scan eliminates inefficient manual tuning
  • Ground-lift switch helps eliminate ground loops or hum
  • Metal strain relief for power cable
  • Adjustable AF and RF level
  • Selectable lock function prevents the transmitter from being accidentally muted or powered off
  UPC: 687471821039
• B60 Performance Series Bodypack Transmitter (522 to 586 MHz) The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.
  • 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
  • Mini-XLR 3-pin connector for compatibility with a variety of microphones or guitar cables
  • Durable tour-worthy metal housing
  • High-contrast LCD shows group, channel, frequency, mic/line level, and battery status
  • Convenient top-panel soft mute button for quick on/off switching
  • Two supplied AA batteries provide up to 14 hours of run time
  • Selectable 10/30 mW RF power output
  • Choose mic or line level
  • Four selectable gain settings—0 dB, -6 dB, -12 dB, and -24 dB
  • Lock function deactivates the power button, RF output control, and level adjustment
  UPC: 687471871003
• ADX20I Cardioid Condenser Instrument Microphone From Audix, the ADX20I is a miniature condenser microphone designed for capturing instruments. The microphone's pre-polarized condenser element reproduces sound that is more than suitable for capturing brass, woodwinds, percussion and more. The wide 40Hz to 20kHz frequency response accurately reproduces audio in pristine detail without noise and distortion. The ADX20's low profile is ideal while mounted on instrument on stage or in studio. The ADX20 includes a shock mounted gooseneck and integral clamp for sturdy instrument mounting and flexible positioning.
  Sturdy Mounting and Easy Positioning
  • The ADX20I includes a shock mounted gooseneck and clamp for sturdy instrument mounting and flexible positioning.
  Cardioid Polar Pattern
  • The cardioid polar pattern minimizes off-axis noise and feedback.
  Low Profile
  • Low profile design is ideal while mounted on instruments on stage or in studio.
  Pristine Audio Reproduction
  • The ADX20I features a wide frequency response and high signal to noise ration for clear, accurate sound reproduction.
  UPC: 687471221044

• Carrying Case

• 2 x Antennas

• Audio Cable

• Power Supply

• Rackmount Kit

• Limited 1-Year Warranty

• 2 x AA Batteries

• Limited 1-Year Warranty

• Shock Mounted Gooseneck and Clamp

• 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• R41 Kit-B Performance Series Single-Channel UHF Diversity Receiver (B: 554 to 586 MHz)

  Frequency Band	554 to 586 MHz
  Bandwidth	32 MHz
  # Of Simultaneous Systems	Up to 16
  Switchable Frequencies	106 pre-coordinated frequencies
  Wireless Range	Up to 300' / 91 m
  Antenna Connector	2 x BNC (8 VDC, 150 mA)
  Outputs	1 x XLR 3-pin balanced 1 x 1/4" TS unbalanced
  Audio Output Level	XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
  Audio Level Control	-12 to +9 dB in 3 dB steps
  Frequency Response	45 Hz to 18 kHz
  Compander	2:1
  Pilot Tone	32 kHz
  Receiving System	Single tuner, antenna diversity
  Signal to Noise Ratio	105 dB at 30 kHz deviation (A-weighted)
  Total Harmonic Distortion (THD)	≤0.7% (33 kHz deviation at 1 kHz)
  Sensitivity	5 dB Rating 100% users recommend this product to others. And what about you? This product has already been rated by 14 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
