Audix AP41 Performance Series Single-Channel Wireless

Search your instruction manual in PDF to download

User Manual for Audix AP41 Performance Series Single-Channel Wireless System with H60 OM5 Handheld Transmitter

Click to enlarge the picture
Audix AP41 Performance Series Single-Channel Wireless System with H60 OM5 Handheld Transmitter Contents of the user manual for the Audix AP41 Performance Series Single-Channel Wireless
  • Product category: Wireless Systems Audix
  • Brand: Audix
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Audix Wireless Systems

User manual for the Audix AP41 Performance Series Single-Channel Wireless contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Audix product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!



Product description

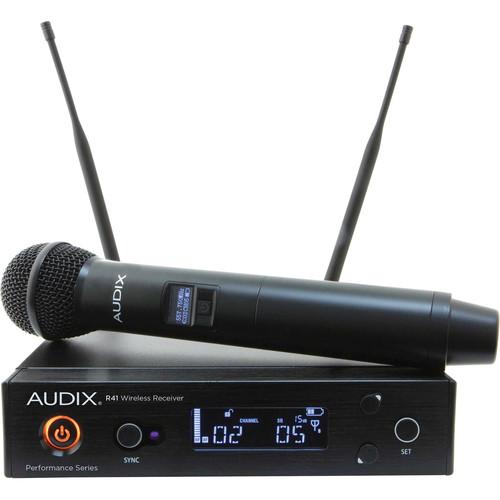

The AP41 Performance Series Single-Channel Handheld Wireless System from Audix includes the R41 1-channel diversity receiver and H60/OM5 handheld transmitter. The R41 receiver operates on a frequency range of 554 to 586 MHz and offers one-touch auto scan searches for clear channel. Thanks to the one-touch sync function, the receiver easily links to the H60 handheld transmitter placed within 300'. The handheld transmitter comes with the OM5 dynamic hypercardioid microphone capsule. Featuring a slim-line body design and durable metal housing, this transmitter is compact, well-balanced, and comfortable to hold. It comes with a soft mute switch which also serves as an on/off switch when needed. It also features a high-contrast LCD display with group, channel, and battery indicator. The OM5 microphone has a uniformly controlled hypercardioid polar pattern which isolates the vocals from the rest of the instruments on stage or in a studio. It has clarity, resistance to feedback, and ability to handle SPLs more than 144 dB without distortion.
  • R41 Kit-B Performance Series Single-Channel UHF Diversity Receiver (B: 554 to 586 MHz) The Audix R41 Kit-B is a Performance Series single-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 554 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup. The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R41 Kit-B ships with two antennas, a carrying case, an audio cable, one power supply, and a rackmount kit.
    • Incorporate up to 16 systems to use 16 unique channels simultaneously
    • Single-channel receiver supports one wireless microphone
    • 32 MHz wide spectrum tuning
    • 106 pre-coordinated frequencies
    • High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
    • One-touch sync via infrared
    • One-touch scan eliminates inefficient manual tuning
    • Ground-lift switch helps eliminate ground loops or hum
    • Metal strain relief for power cable
    • Adjustable AF and RF level
    • Selectable lock function prevents the transmitter from being accidentally muted or powered off
    UPC: 687471821039
  • H60 OM5 64 MHz Handheld Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule (522 to 586 MHz) The Audix H60 OM5 is a Performance Series handheld microphone transmitter with an OM5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 48 Hz to 19 kHz frequency response with a slight high-frequency rise, and a high maximum SPL of approximately 144 dB. A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
    • 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
    • High-contrast LCD shows group, channel, frequency, and battery status
    • Durable tour-worthy metal housing
    • Modular capsule design allows easy swapping between dynamic and condenser capsules (available separately)
    • Convenient soft mute button for quick on/off switching
    • Two supplied AA batteries provide up to 14 hours of run time
    • Selectable 10/30mW RF power output
    • Three selectable gain settings—0 dB, -6 dB, and -12 dB
    • Dent-resistant steel mesh grille
    • Includes mic clip and pouch
    UPC: 687471881040
In the Box Bundle Items R41 Kit-B Performance Series Single-Channel UHF Diversity Receiver (B: 554 to 586 MHz) ucvabsqevxqcafczbscvwxeytqdszeztwf
  • Carrying Case
  • 2 x Antennas
  • Audio Cable
  • Power Supply
  • Rackmount Kit
  • Limited 1-Year Warranty
H60 OM5 64 MHz Handheld Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule (522 to 586 MHz)
  • 2 x AA Batteries
  • Mic Clip
  • Pouch
  • Limited 1-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Audix AP41 Performance Series Single-Channel Wireless System with H60 OM5 Handheld Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • R41 Kit-B Performance Series Single-Channel UHF Diversity Receiver (B: 554 to 586 MHz)
    Frequency Band 554 to 586 MHz
    Bandwidth 32 MHz
    # Of Simultaneous Systems Up to 16
    Switchable Frequencies 106 pre-coordinated frequencies
    Wireless Range Up to 300' / 91 m
    Antenna Connector 2 x BNC (8 VDC, 150 mA)
    Outputs 1 x XLR 3-pin balanced
    1 x 1/4" TS unbalanced
    Audio Output Level XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
    1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
    Audio Level Control -12 to +9 dB in 3 dB steps
    Frequency Response 45 Hz to 18 kHz
    Compander 2:1
    Pilot Tone 32 kHz
    Receiving System Single tuner, antenna diversity
    Signal to Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
    Total Harmonic Distortion (THD) ≤0.7% (33 kHz deviation at 1 kHz)
    Sensitivity 5 dB

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 41 owners. Add your rating and experience with the product.
