Product description

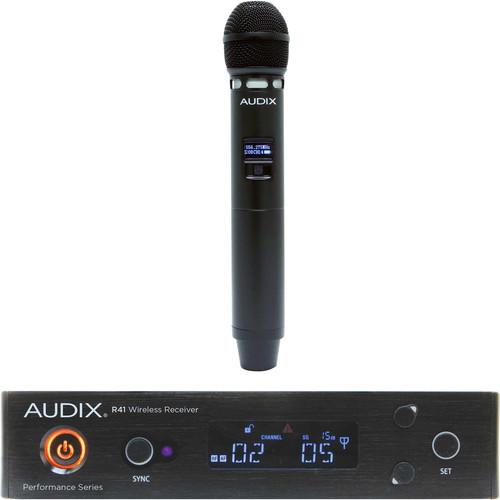

The AP41 Performance Series Single-Channel Handheld Wireless System from Audix includes the R41 1-channel diversity receiver and H60/VX5 handheld transmitter. The R41 receiver operates on a frequency range of 522 to 554 MHz and offers one-touch auto scan searches for clear channel. Thanks to the one-touch sync function, the receiver easily links to the H60 handheld transmitter placed within 300'. The handheld transmitter comes with the VX5 dynamic supercardioid microphone capsule. Featuring a slim-line body design and durable metal housing, this transmitter is compact, well-balanced, and comfortable to hold. It comes with a soft mute switch which also serves as an on/off switch when needed. It also features a high-contrast LCD display with group, channel, and battery indicator. The VX5 is a multi-purpose, professional vocal condenser microphone designed for live stage, studio, and broadcast applications. With an ability to duplicate studio quality sound on stage, this microphone has a smooth and detailed frequency response, resistance to feedback, and handles high SPLs (more than 140 dB) without distortion.
  • R41 Kit-A Performance Series Single-Channel UHF Diversity Receiver (A: 522 to 554 MHz) The Audix R41 Kit-A is a Performance Series single-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 522 to 554 MHz frequency band. Use one wireless microphone (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup. The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R41 Kit-A ships with two antennas, a carrying case, an audio cable, one power supply, and a rackmount kit.
    • Incorporate up to 16 systems to use 16 unique channels simultaneously
    • Single-channel receiver supports one wireless microphone
    • 32 MHz wide spectrum tuning
    • 106 pre-coordinated frequencies
    • High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
    • One-touch sync via infrared
    • One-touch scan eliminates inefficient manual tuning
    • Ground-lift switch helps eliminate ground loops or hum
    • Metal strain relief for power cable
    • Adjustable AF and RF level
    • Selectable lock function prevents the transmitter from being accidentally muted or powered off
  • H60 VX5 64 MHz Handheld Microphone Transmitter with VX5 Supercardioid Condenser Capsule (522 to 586 MHz) The Audix H60 VX5 is a Performance Series handheld microphone transmitter with VX5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The supercardioid condenser capsule yields enhanced off-axis rejection, a 40 Hz to 16.5 kHz frequency response, and a high maximum SPL of approximately 140 dB. A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30 mW RF output power. Two supplied AA batteries power the H60 VX5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
    • 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
    • High-contrast LCD shows group, channel, frequency, and battery status
    • Durable tour-worthy metal housing
    • Modular capsule design allows easy swapping between condenser and dynamic capsules (available separately)
    • Convenient soft mute button for quick on/off switching
    • Two supplied AA batteries provide up to 14 hours of run time
    • Selectable 10/30mW RF power output
    • Three selectable gain settings—0 dB, -6 dB, and -12 dB
    • Dent-resistant steel mesh grille
    • Includes mic clip and pouch
    UPC: 687471881071
In the Box Bundle Items R41 Kit-A Performance Series Single-Channel UHF Diversity Receiver (A: 522 to 554 MHz) ucvabsqevxqcafczbscvwxeytqdszeztwf
  • Carrying Case
  • 2 x Antennas
  • Audio Cable
  • Power Supply
  • Rackmount Kit
  • Limited 1-Year Warranty
H60 VX5 64 MHz Handheld Microphone Transmitter with VX5 Supercardioid Condenser Capsule (522 to 586 MHz) ucvabsqevxqcafczbscvwxeytqdszeztwf
  • 2 x AA Batteries
  • Mic Clip
  • Pouch
  • Limited 3-Year Warranty
