Audix AP42 Performance Series Dual-Channel Combo

Search your instruction manual in PDF to download

User Manual for Audix AP42 Performance Series Dual-Channel Combo OM2 Handheld & ADX10 Lavalier Wireless System

Click to enlarge the picture
Audix AP42 Performance Series Dual-Channel Combo OM2 Handheld & ADX10 Lavalier Wireless System Contents of the user manual for the Audix AP42 Performance Series Dual-Channel Combo
  • Product category: Wireless Systems Audix
  • Brand: Audix
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Audix Wireless Systems

User manual for the Audix AP42 Performance Series Dual-Channel Combo contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Audix product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!



Product description

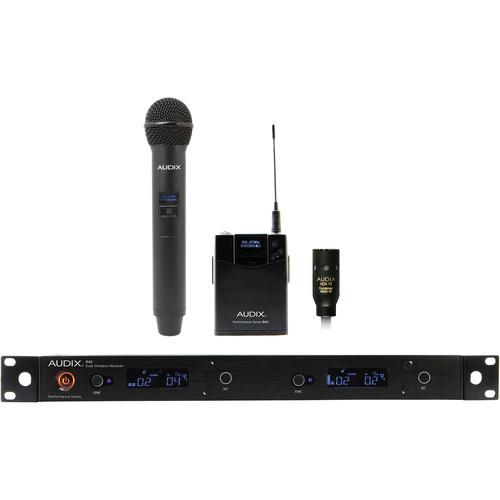

The AP42 Performance Series Dual-Channel Combo Wireless System from Audix includes the R42 2-channel diversity receiver, B60 bodypack transmitter with ADX10 miniaturized lavalier condenser microphone, and H60/OM2 handheld transmitter. This system combines the hands-free convenience of a lavalier with the flexibility of a handheld microphone. It is suitable for presentations, meetings or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience. The R42 receiver operates on a frequency range of 554 to 586 MHz and offers one-touch auto scan searches for clear channel. The receiver can be easily linked to the B60 bodypack and the H60 handheld transmitters via infrared beam using its one-touch sync function, and placed within 300'. Both the transmitter units come with a soft mute switch which also serves as an on/off switch when needed and feature a high-contrast LCD display with group, channel, and battery indicator. The ADX10 cardioid microphone can be connected to the bodypack transmitter via its integrated cable terminated by a 3-pin mini XLR connector. This lightweight, low-profile microphone has the ability to accurately capture and reproduce vocals from a comfortable distance of 4 to 8". The handheld transmitter comes with the OM2 dynamic vocal microphone capsule. This dynamic microphone employs a VLM diaphragm for a clear, precise sound with remarkable voice response.
  • R42 Kit-B Performance Series Dual-Channel UHF Diversity Receiver (B: 554 to 586 MHz) The Audix R42 Kit-B is a Performance Series dual-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 554 to 586 MHz frequency band. Use two wireless microphones (available separately) from up to 300' away. One-touch sync and auto scan functions provide simple and efficient setup. The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R42 Kit-B ships with two antennas, two BNC cables, an audio cable, one power supply, and a rackmount kit.
    • Incorporate up to eight systems to use 16 unique channels simultaneously
    • Dual-channel receiver supports two wireless microphones
    • 32 MHz wide spectrum tuning
    • 106 pre-coordinated frequencies
    • High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
    • One-touch sync via infrared
    • One-touch scan eliminates inefficient manual tuning
    • Ground-lift switch helps eliminate ground loops or hum
    • Metal strain relief for power cable
    • Adjustable AF and RF level
    • Selectable lock function prevents the transmitter from being accidentally muted or powered off
    UPC: 687471821077
  • B60 Performance Series Bodypack Transmitter (522 to 586 MHz) The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.
    • 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
    • Mini-XLR 3-pin connector for compatibility with a variety of microphones or guitar cables
    • Durable tour-worthy metal housing
    • High-contrast LCD shows group, channel, frequency, mic/line level, and battery status
    • Convenient top-panel soft mute button for quick on/off switching
    • Two supplied AA batteries provide up to 14 hours of run time
    • Selectable 10/30 mW RF power output
    • Choose mic or line level
    • Four selectable gain settings—0 dB, -6 dB, -12 dB, and -24 dB
    • Lock function deactivates the power button, RF output control, and level adjustment
    UPC: 687471871003
  • ADX10 Miniature Cardioid Condenser The Audix ADX10 is a miniature lavalier microphone with a cardioid polar pattern. It's size and sensitivity response is more than suitable for interviews, video dialog, presentations, choir and theatrical applications and more.The condenser microphone features an cable terminated with a mini 3-pin XLR connection. The cardioid polar pattern effectively minimizes noise and audio at the off-axis sections of the microphone and the tailored frequency response maximizes intelligibility of vocals.
      Cardioid Polar Pattern
    • The cardioid polar pattern effectively minimizes noise and ambient audio at the off-axis sections of the microphone capsule.
      Miniature Profile
    • The miniature design of the microphone capsule is suitable for video, presentation and performance applications.
      Tailored Frequency Response
    • The tailored frequency response minimizes low frequency noise while maximizing the intelligibility of vocals.
    UPC: 687471591017
  • H60 OM2 64 MHz Handheld Microphone Transmitter with OM2 Hypercardioid Dynamic Capsule (522 to 586 MHz) The Audix H60 OM2 is a Performance Series handheld microphone transmitter with an OM2 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 50 Hz to 16 kHz frequency response with a mild bass boost, and a high maximum SPL of approximately 140 dB. A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM2 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
    • 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
    • High-contrast LCD shows group, channel, frequency, and battery status
    • Durable tour-worthy metal housing
    • Modular capsule design allows easy swapping between dynamic and condenser capsules (available separately)
    • Convenient soft mute button for quick on/off switching
    • Two supplied AA batteries provide up to 14 hours of run time
    • Selectable 10/30mW RF power output
    • Three selectable gain settings—0 dB, -6 dB, and -12 dB
    • Dent-resistant steel mesh grille
    • Includes mic clip and pouch
    UPC: 687471881026
In the Box Bundle Items R42 Kit-B Performance Series Dual-Channel UHF Diversity Receiver (B: 554 to 586 MHz) ucvabsqevxqcafczbscvwxeytqdszeztwf
  • 2 x BNC Cables
  • 2 x Antennas
  • Audio Cable
  • Power Supply
  • Rackmount Kit
  • Limited 1-Year Warranty
B60 Performance Series Bodypack Transmitter (522 to 586 MHz)
  • 2 x AA Batteries
  • Limited 1-Year Warranty
ADX10 Miniature Cardioid Condenser
  • MC10L - Metal Clip for ADX10 Lavalier Microphone
  • WS10 Windscreen for ADX10 Microphone
  • P1 Carrying Pouch
  • Limited 3-Year Warranty
H60 OM2 64 MHz Handheld Microphone Transmitter with OM2 Hypercardioid Dynamic Capsule (522 to 586 MHz)
  • 2 x AA Batteries
  • Mic Clip
  • Pouch
  • Limited 1-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Audix AP42 Performance Series Dual-Channel Combo OM2 Handheld & ADX10 Lavalier Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • R42 Kit-B Performance Series Dual-Channel UHF Diversity Receiver (B: 554 to 586 MHz)
    Frequency Band 554 to 586 MHz
    Bandwidth 32 MHz
    # Of Simultaneous Systems Up to 8
    Switchable Frequencies 106 pre-coordinated frequencies
    Wireless Range Up to 300' / 91 m
    Antenna Connector 2 x BNC (8 VDC, 150 mA)
    Outputs 2 x XLR 3-pin balanced
    2 x 1/4" TS unbalanced
    Audio Output Level XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
    1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
    Audio Level Control -12 to +9 dB in 3 dB steps
    Frequency Response 45 Hz to 18 kHz
    Compander 2:1
    Pilot Tone 32 kHz
    Receiving System Single tuner, antenna diversity
    Signal to Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
    Total Harmonic Distortion (THD) ≤0.7% (33 kHz deviation at 1 kHz)
    Sensitivity 5 dB
