Audix AP61 OM2 R61 Single-Channel True

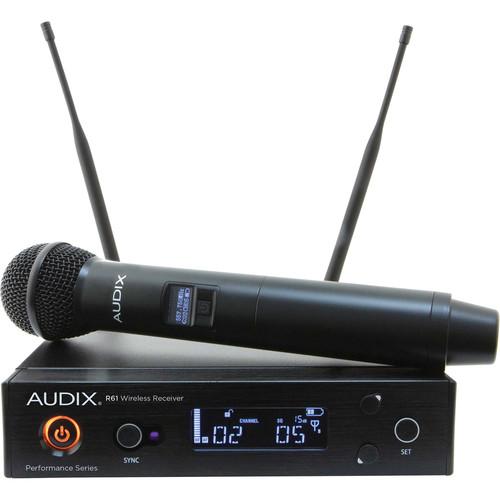

User Manual for Audix AP61 OM2 R61 Single-Channel True Diversity Receiver with H60 OM2 Handheld Microphone Transmitter

• Product category: Wireless Systems Audix
• Brand: Audix
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audix Wireless Systems

Product description

• R61 Kit Single-Channel Wireless True Diversity Receiver (522 to 586 MHz) The Audix R61 Kit is a Performance Series single-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 450' away. One-touch sync and auto scan functions provide simple and efficient setup. The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R61 Kit ships with two antennas, two BNC cables, a carrying case, an audio cable, one power supply, and a rackmount kit.
  • Incorporate up to 24 systems to use 24 unique channels simultaneously
  • Single-channel receiver supports one wireless microphone
  • 64 MHz wide spectrum tuning
  • 207 pre-coordinated frequencies
  • 2560 tunable frequencies
  • High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
  • One-touch sync via infrared
  • One-touch scan eliminates inefficient manual tuning
  • Ground-lift switch helps eliminate ground loops or hum
  • Metal strain relief for power cable
  • Adjustable AF and RF level
  • Selectable receiver lock disables the scan, sync, and power buttons
  • Selectable transmitter lock prevents the transmitter from being accidentally muted or powered off
  • Allows front- or rear-mount antenna configurations
  UPC: 687471861097
• H60 OM2 64 MHz Handheld Microphone Transmitter with OM2 Hypercardioid Dynamic Capsule (522 to 586 MHz) The Audix H60 OM2 is a Performance Series handheld microphone transmitter with an OM2 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 50 Hz to 16 kHz frequency response with a mild bass boost, and a high maximum SPL of approximately 140 dB. A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM2 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
  • 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
  • High-contrast LCD shows group, channel, frequency, and battery status
  • Durable tour-worthy metal housing
  • Modular capsule design allows easy swapping between dynamic and condenser capsules (available separately)
  • Convenient soft mute button for quick on/off switching
  • Two supplied AA batteries provide up to 14 hours of run time
  • Selectable 10/30mW RF power output
  • Three selectable gain settings—0 dB, -6 dB, and -12 dB
  • Dent-resistant steel mesh grille
  • Includes mic clip and pouch
  UPC: 687471881026

• Carrying Case

• 2 x Antennas

• 2 x BNC Cables

• Audio Cable

• Power Supply

• Rackmount Kit

• Limited 1-Year Warranty

• 2 x AA Batteries

• Mic Clip

• Pouch

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• R61 Kit Single-Channel Wireless True Diversity Receiver (522 to 586 MHz)

  Frequency Band	522 to 586 MHz
  Bandwidth	64 MHz
  # Of Simultaneous Systems	Up to 24
  Switchable Frequencies	207 pre-coordinated frequencies
  Reception Frequencies	2560 tunable frequencies (spaced 25 kHz apart)
  Wireless Range	Up to 450' / 137 m
  Antenna Connector	2 x BNC (8 VDC, 150 mA)
  Outputs	1 x XLR 3-pin balanced 1 x 1/4" TS unbalanced
  Audio Output Level	XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain 1/4": -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
  Audio Level Control	-12 to +9 dB in 3-dB steps
  Frequency Response	45 Hz to 18 kHz
  Compander	2:1
  Pilot Tone	32 kHz
  Receiving System	Dual tuner, true diversity
  Signal to Noise Ratio	112 dB at 30 kHz deviation (A-weighted)
  Total Harmonic Distortion (THD)	<0.4% (33 kHz deviation at 1 kHz)
  Sensitivity	5 dB Rating 60% users recommend this product to others. And what about you? This product has already been rated by 59 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
