Product description

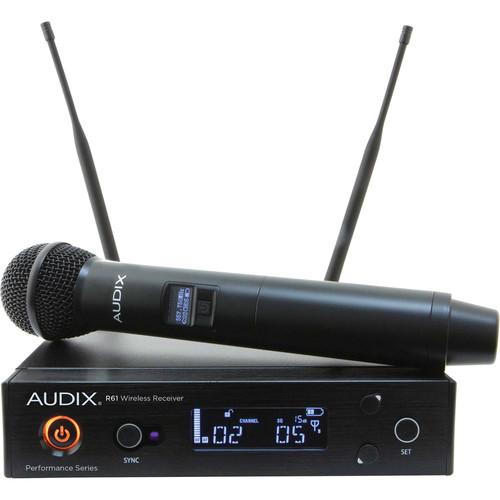

• R61 Kit Single-Channel Wireless True Diversity Receiver (522 to 586 MHz) The Audix R61 Kit is a Performance Series single-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 450' away. One-touch sync and auto scan functions provide simple and efficient setup. The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4" outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R61 Kit ships with two antennas, two BNC cables, a carrying case, an audio cable, one power supply, and a rackmount kit.
  • Incorporate up to 24 systems to use 24 unique channels simultaneously
  • Single-channel receiver supports one wireless microphone
  • 64 MHz wide spectrum tuning
  • 207 pre-coordinated frequencies
  • 2560 tunable frequencies
  • High-contrast LCD shows RF and AF signal strength, group/channel/frequency, level/squelch, battery level, and more
  • One-touch sync via infrared
  • One-touch scan eliminates inefficient manual tuning
  • Ground-lift switch helps eliminate ground loops or hum
  • Metal strain relief for power cable
  • Adjustable AF and RF level
  • Selectable receiver lock disables the scan, sync, and power buttons
  • Selectable transmitter lock prevents the transmitter from being accidentally muted or powered off
  • Allows front- or rear-mount antenna configurations
  UPC: 687471861097
• H60 OM5 64 MHz Handheld Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule (522 to 586 MHz) The Audix H60 OM5 is a Performance Series handheld microphone transmitter with an OM5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 48 Hz to 19 kHz frequency response with a slight high-frequency rise, and a high maximum SPL of approximately 144 dB. A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
  • 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
  • High-contrast LCD shows group, channel, frequency, and battery status
  • Durable tour-worthy metal housing
  • Modular capsule design allows easy swapping between dynamic and condenser capsules (available separately)
  • Convenient soft mute button for quick on/off switching
  • Two supplied AA batteries provide up to 14 hours of run time
  • Selectable 10/30mW RF power output
  • Three selectable gain settings—0 dB, -6 dB, and -12 dB
  • Dent-resistant steel mesh grille
  • Includes mic clip and pouch
  UPC: 687471881040

• Carrying Case

• 2 x Antennas

• 2 x BNC Cables

• Audio Cable

• Power Supply

• Rackmount Kit

• Limited 1-Year Warranty

• 2 x AA Batteries

• Mic Clip

• Pouch

• Limited 1-Year Warranty
