User Manual for Audix APS911 Phantom Power Supply and Adapter Click to enlarge the picture
Contents of the user manual for the Audix APS911 Phantom Power Supply and
- Product category: Phantom Power Supplies Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Phantom Power Supplies
 |
User manual for the Audix APS911 Phantom Power Supply and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|

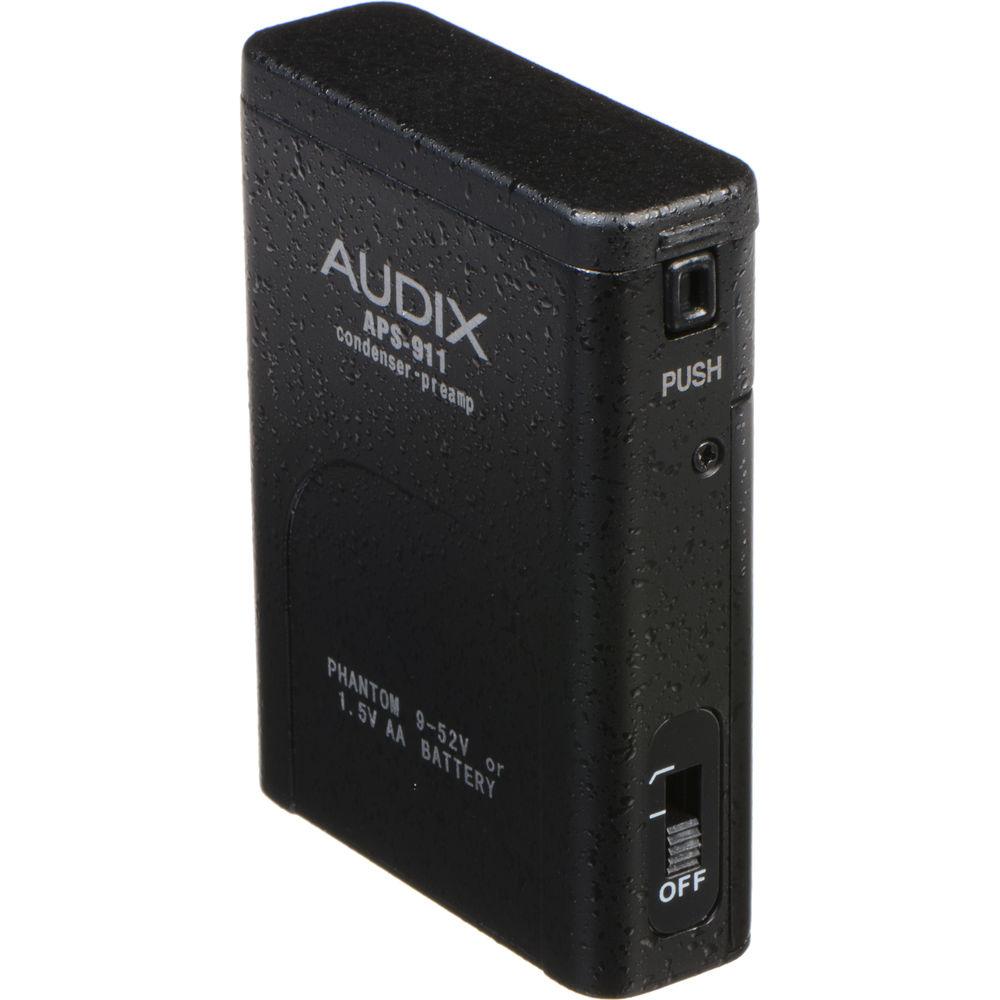

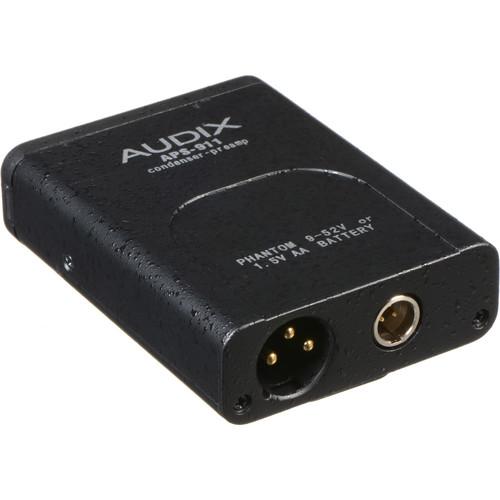

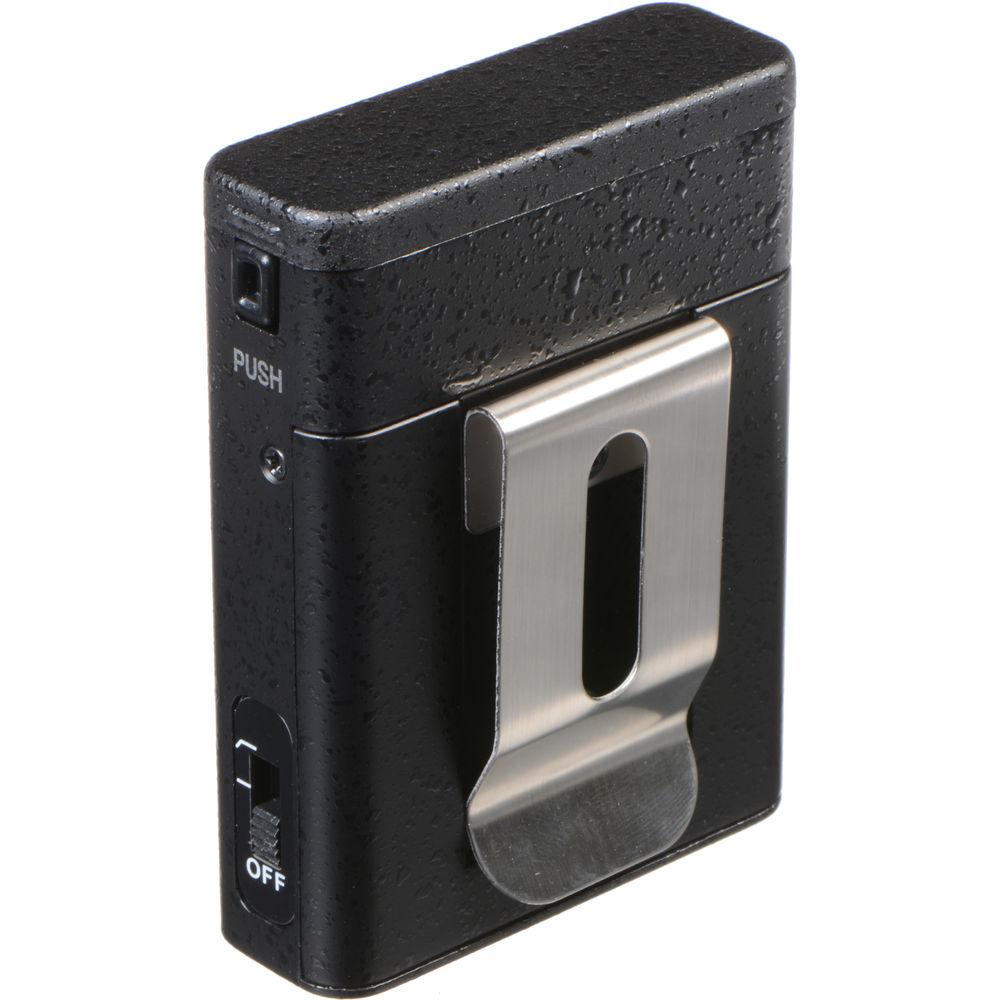

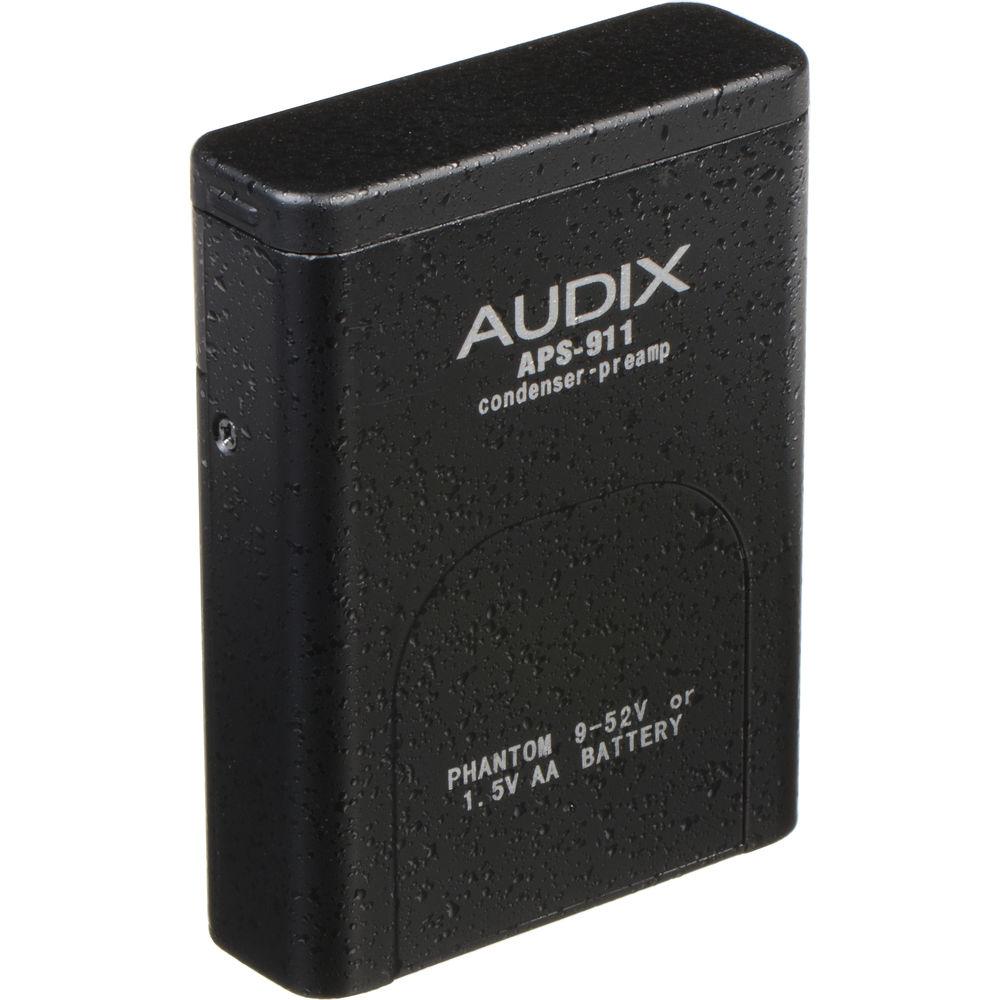

Product description The Audix APS911 Battery-Operated Phantom Power Supply and Converter is a battery-operated phantom power supply for energy-efficient electret mics that can also adapt 48V phantom power from a mixer or preamp to the mini XLR connection found on these mics. Use it with Audix's lavalier, hanging, boundary plate, and HT2 headset microphones.
Special extras on the APS911 include an on/off switch and a bass roll-off feature. - Battery-Operated Phantom Power
- Using a single 1.5V AA battery, the Battery-Operated Power Supply outputs 9V of phantom power for energy-efficient electret mics including Audix lavalier, hanging, boundary plate, and headset models.
- Adapt Standard Phantom Power for Electret Mics
- The Phantom Power Adapter also mates with phantom power sources on standard XLR connectors (such as 48V mixer channels) and assures that power is supplied to the correct mini XLR pins for Audix electret mics. In this case, the APS911 is in passive mode, passing whatever current is supplied.
- On/Off Switch
- A built-in on/off switch helps conserve battery life and also acts as a mode selector when using the APS911 as either a battery-operated phantom power source or a passive phantom power converter.
- Bass Roll-Off
- Clean your recordings of low-end rumble, structural noise transmitted through a mic stand, or unused frequencies by activating the handy 150Hz low cut filter. Since most human speech occurs above this cutoff, you'll want to use it routinely for voice recording.
Compatible with: - Audix Microphones
- ADX10, ADX40, ADX60, HT5, ADX10FL, HT2
UPC: 687471271100 In the Box Audix APS911 Phantom Power Supply and Adapter 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix APS911 Phantom Power Supply and Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix APS911 Specs | Input Connectors | Mini XLR Female | | Output Connectors | 3-Pin XLR Male | | Adapter | Adapts 9-48V Phantom Power on XLR for use with small mics bearing mini XLR connectors | | Battery | 1.5V AA | | Power | 9V Phantom Power Ouput from a 1.5V Battery
Also adapts incoming 9-48V phantom power for use with electret mics in passive mode | | Dimensions | 3.27 x 0.87 x 2.48" (8.3 x 2.2 x 6.3 cm) | | Weight | 8.0 oz (227.76 g) | | | | Package Weight | 0.79 lb | | Box Dimensions (LxWxH) | 8.85 x 4.25 x 2.6" |
