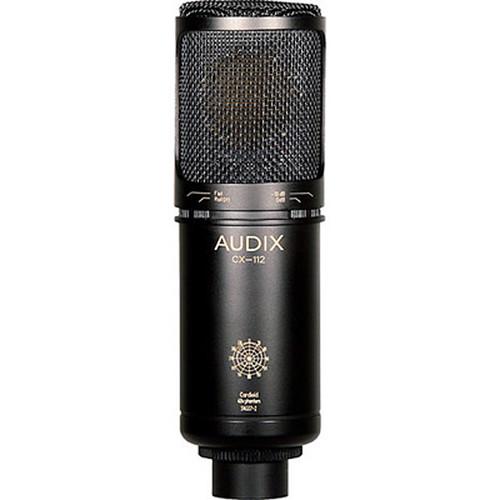

User Manual for Audix CX112B Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audix CX112B Studio Condenser Microphone
- Product category: Large Diaphragm Condenser Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Large Diaphragm Condenser
|
User manual for the Audix CX112B Studio Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The CX112B Studio Condenser Microphone from Audix is designed to handle vocal and general instrument recordings in both professional and project studio applications. It features a wide frequency response, providing accurate detail and rich audio signal. There is a cardioid polar pattern for minimizing off-axis residual noise while suppressing feedback. A 10 dB pad switch provides additional headroom while capturing highly transient audio signal, and the low-frequency roll off switch further suppresses low frequency hum, rumble, and proximity effect. The CX112B includes an adjustable metal microphone clip and a foam lined wooden carrying case. - Cardioid Polar Pattern
- The cardioid polar pattern effectively minimizes off-axis residual noise while suppressing feedback.
- 10 dB Pad Switch
- A 10 dB pad switch provides additional headroom when capturing loud peaks and transients.
- Low Frequency Roll-Off
- A low-frequency roll-off filter eliminates noise and proximity effect.
- Wide Frequency Response
- The ultra wide frequency response provides accurate detail and pristine fidelity.
UPC: 687471241165 In the Box Audix CX112B Studio Condenser Microphone 2 x MC-112 Adjustable Metal Mic Clip CASE-WOOD Foam Lined, Wood Case Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix CX112B Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix CX112 Specs | | | Transducer | Condenser | | Diaphragm | 1.08" / 27.5 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 79 dB | | Equivalent Noise Level | 15 dB A-Weighted | | Maximum SPL | 135 dB SPL | | Pad | -10 dB | | Impedance | 120 Ohms | | Sensitivity | 18 mV/Pa at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 6.50" / 165.0 mm | | Weight | 11.99 oz / 340.0 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 9.8 x 5.9 x 3.8" |
