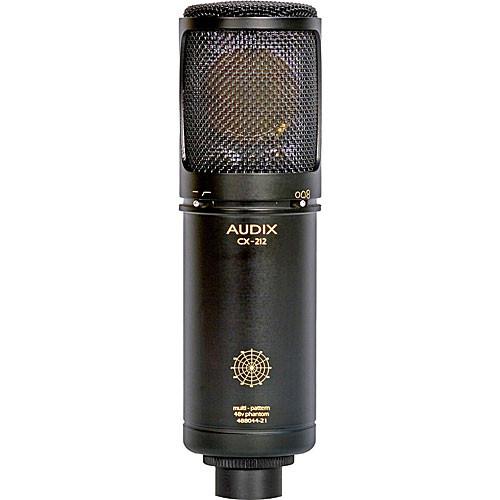

User Manual for Audix CX212B Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audix CX212B Studio Condenser Microphone
- Product category: Large Diaphragm Condenser Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Large Diaphragm Condenser
|
User manual for the Audix CX212B Studio Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The CX212B Studio Condenser Microphone from Audix is a high quality microphone designed to handle professional and project studio recording. It features a wide frequency response, providing accurate detail and rich audio signal. Cardioid, omnidirectional and figure-eight polar patterns deliver maximum flexibility when recording instruments and vocals. A low-frequency roll off switch suppresses low frequency hum, rumble, and proximity effect. The CX212B is suitable for a wide variety of acoustical instruments, vocals, string sections, ensembles, and ambient room miking. The microphone offers discreet low noise preamp circuitry and operated on 48 V of phantom power. The microphone includes an isolation shockmount, an aluminum carrying case, and an adjustable metal mic clip. - Multi-pattern: cardioid, omni, and figure-of-eight
- Resistant to touch noise and vibration
- Rich warm tones for digital recroding
- Durable isolation shockmount and road case included
UPC: 687471241189 In the Box Audix CX212B Studio Condenser Microphone MC-112 Adjustable Metal Mic Clip CASE-CX Aluminum Carrying Case SMTCX112 Isolation Shockmount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix CX212B Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix CX212 Specs | | | Transducer | Condenser | | Diaphragm | 1.08" / 27.5 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 75 dB | | Equivalent Noise Level | 19 dB A-Weighted | | Maximum SPL | 133 dB SPL | | Impedance | 120 Ohms | | Sensitivity | 14 mV/Pa at 1 kHz | | Dynamic Range | 114 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 6.50" / 165.0 mm | | Weight | 12.88 oz / 365.0 g | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 12.2 x 10.2 x 6.6" |
