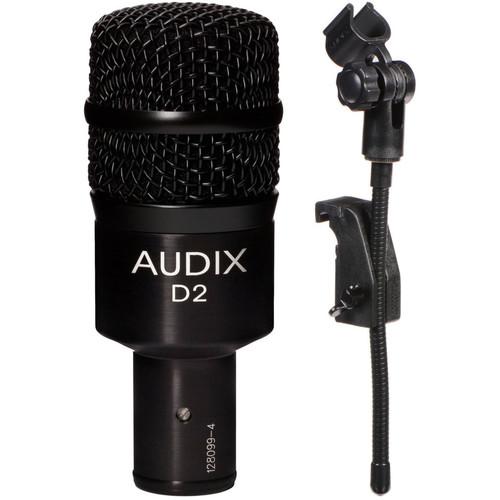

User Manual for Audix D2 Drum Mic Kit Click to enlarge the picture
Contents of the user manual for the Audix D2 Drum Mic Kit
- Product category: Instrument Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Instrument Microphones
|
User manual for the Audix D2 Drum Mic Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The Audix D2 Drum Mic Kit from comes with everything you need to start recording percussion instruments like rack toms, congas, floor toms, and more. The kit comes with the Audix D2 Dynamic Instrument Microphone, and the Audix Drum Microphone Clamp. - Audix D2 Dynamic Instrument Microphone The Audix D2 is well suited for use in stage, studio, and broadcast applications, and features the frequency and sensitivity response required for accurately reproducing signals from drums and percussion instruments. The mic has a dynamic element capable of reproducing signals with high transient peaks, while maintaining a clear, punchy, and warm sound. The D2 offers a frequency response of 68 Hz to 18 kHz which features a slight bump in the mid-bass frequencies. The contoured mid-bass response accentuates the tonal frequencies associated with instruments that have a percussive nature, such as rack toms, congas, floor toms, saxophone, brass, horns, as well as guitar and bass cabinets. The hypercardioid polar pattern provides a tight pickup area at the front of the capsule for isolation and feedback control, and it is equipped with a VLM (Very Low Mass) diaphragm for natural, accurate sound reproduction. Ambiance and noise at the off-axis sections of the microphone are greatly reduced, resulting in high signal-to-noise ratio.
- Hypercardioid Polar Pattern
- The hypercardioid polar pattern is effective in eliminating noise and ambiance at the off-axis sections of the microphone
- Contoured Mid-Bass Frequency Response
- The D2 features a frequency response of 68 Hz to 18 kHz. A mid-bass bump accentuates the tonal response of floor toms, congas, and more
- High SPL Handling
- The D2 can accurately handle signals with sound pressure levels registering at 144 dB. Transient peaks are reproduced without distortion due to overload
UPC: 687471121016 - Audix Drum Microphone Clamp The Audix D-Vice Spring-Loaded Rim-Mount Clamp DVICE is a sturdy percussion clamp that offers you the ability to rim mount your Fusion Series microphones on a drum. It eliminates the need for bulky microphone stands. This unit's goose-neck design and spring-loaded clamp make it practical and easy to use.
- Perfect Microphone Positioning
- Position your microphone perfectly on your drum with this convenient clamp.
UPC: 687471131060 In the Box - D2 Dynamic Instrument Microphone
- Microphone Clip
- Zippered Pouch
- Limited 5-Year Warranty
- D-Vice Spring-Loaded Rim-Mount Clamp DVICE
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix D2 Drum Mic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Audix D2 Dynamic Instrument Microphone
| Transducer | Dynamic VLM Type B (Transformerless) | | Polar Pattern | Hypercardioid | | Frequency Response | 68 Hz to 18 kHz | | Sensitivity | 1.2 mV / Pa @ 1 kHz | | Off Axis Rejection | >30 dB | | Maximum SPL | ≥144 dB | | Power Requirements | Dynamic Transducer - no external power required | | Impedance | 280 ohms | | Output Connectors | 3-pin XLR male | | Pad | No | | Low Frequency Roll-Off | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector | | Dimensions | 3.9" (100 mm) | | Weight | 4.5 oz (128 g) | | | | Box Dimensions (LxWxH) | 8.85 x 4.25 x 2.55" | - Audix Drum Microphone Clamp
| Construction | Not specified by manufacturer | | Finish | Black | | | | Box Dimensions (LxWxH) | 11.0 x 4.7 x 1.5" |
