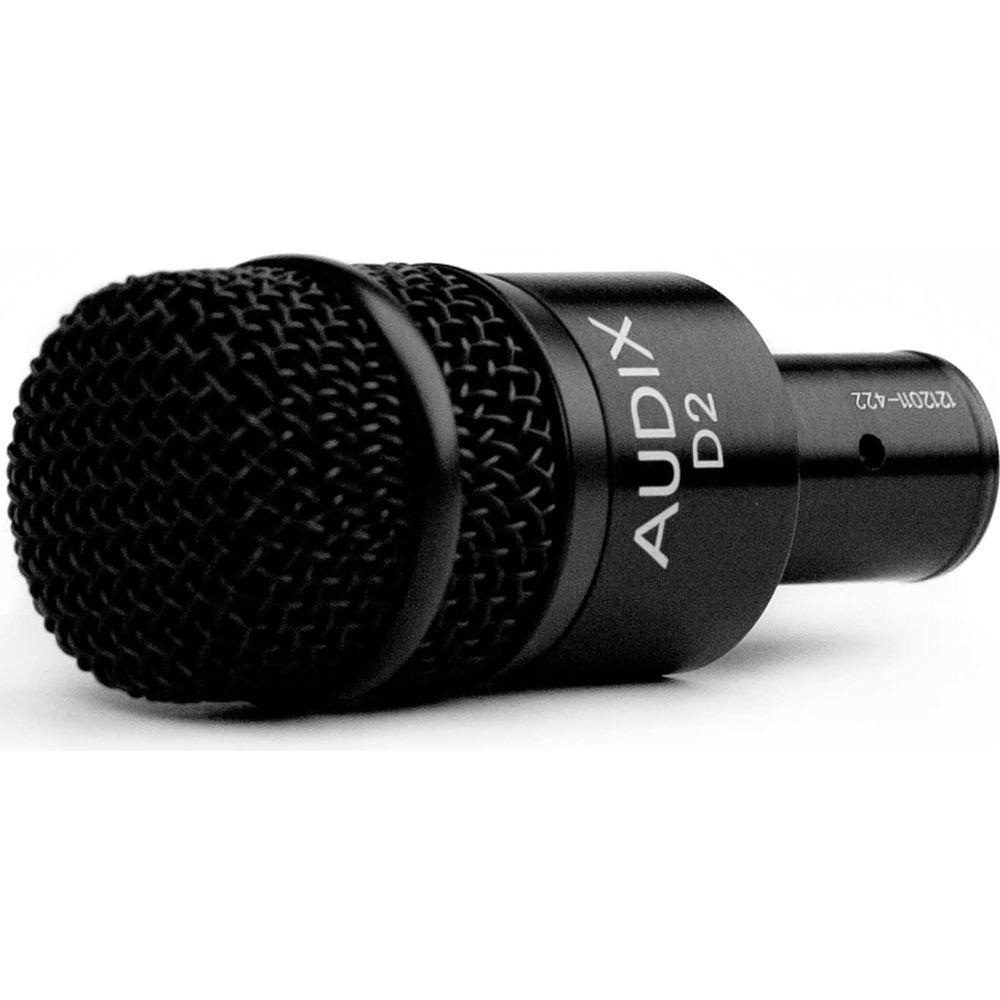

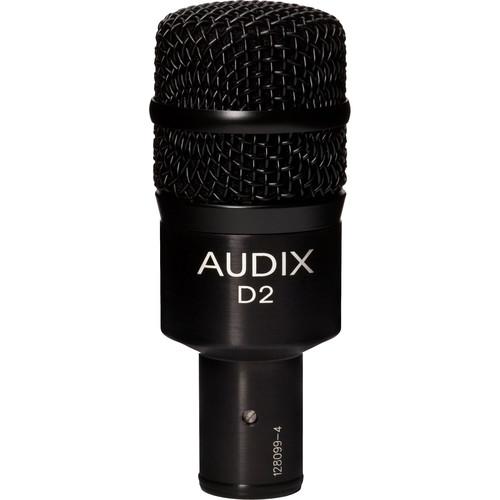

Product description The Audix D2 is well suited for use in stage, studio, and broadcast applications, and features the frequency and sensitivity response required for accurately reproducing signals from drums and percussion instruments. The mic has a dynamic element capable of reproducing signals with high transient peaks, while maintaining a clear, punchy, and warm sound. The D2 offers a frequency response of 68 Hz to 18 kHz which features a slight bump in the mid-bass frequencies. The contoured mid-bass response accentuates the tonal frequencies associated with instruments that have a percussive nature, such as rack toms, congas, floor toms, saxophone, brass, horns, as well as guitar and bass cabinets. The hypercardioid polar pattern provides a tight pickup area at the front of the capsule for isolation and feedback control, and it is equipped with a VLM (Very Low Mass) diaphragm for natural, accurate sound reproduction. Ambiance and noise at the off-axis sections of the microphone are greatly reduced, resulting in high signal-to-noise ratio. - Hypercardioid Polar Pattern
- The hypercardioid polar pattern is effective in eliminating noise and ambiance at the off-axis sections of the microphone
- Contoured Mid-Bass Frequency Response
- The D2 features a frequency response of 68 Hz to 18 kHz. A mid-bass bump accentuates the tonal response of floor toms, congas, and more
- High SPL Handling
- The D2 can accurately handle signals with sound pressure levels registering at 144 dB. Transient peaks are reproduced without distortion due to overload

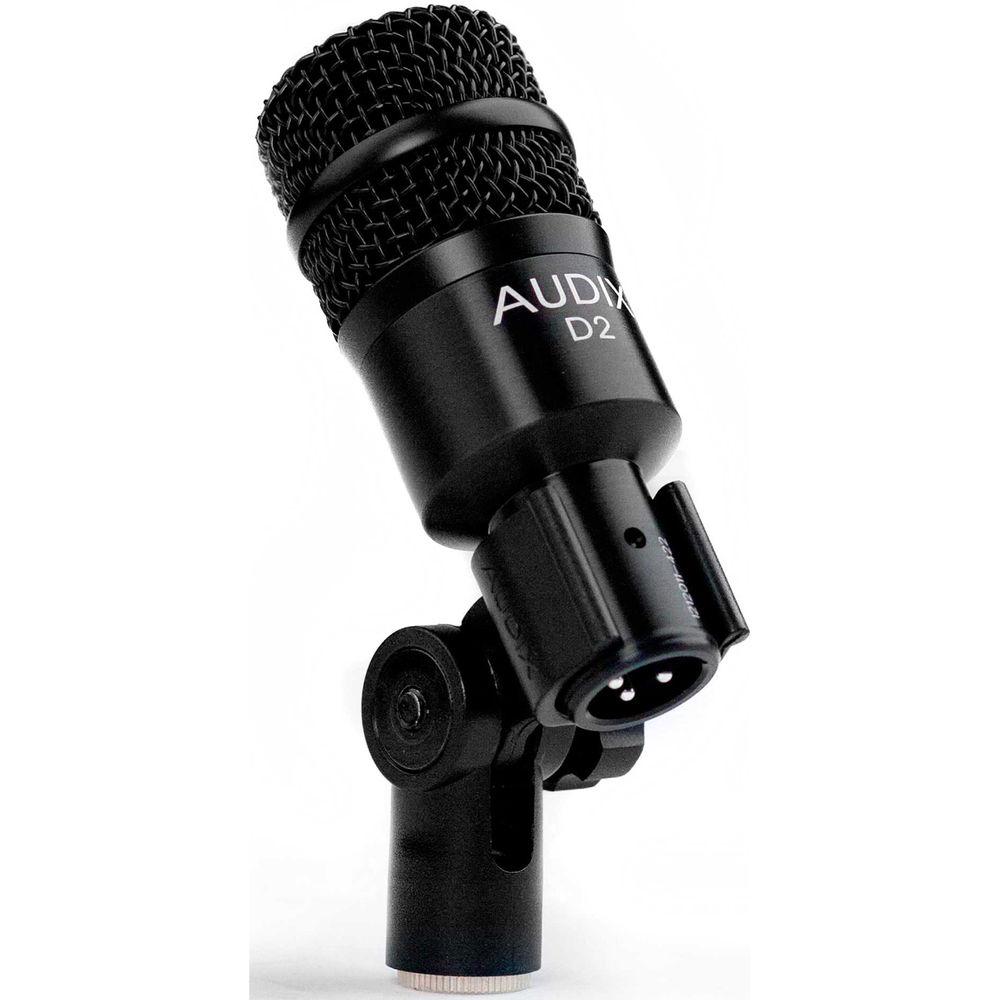

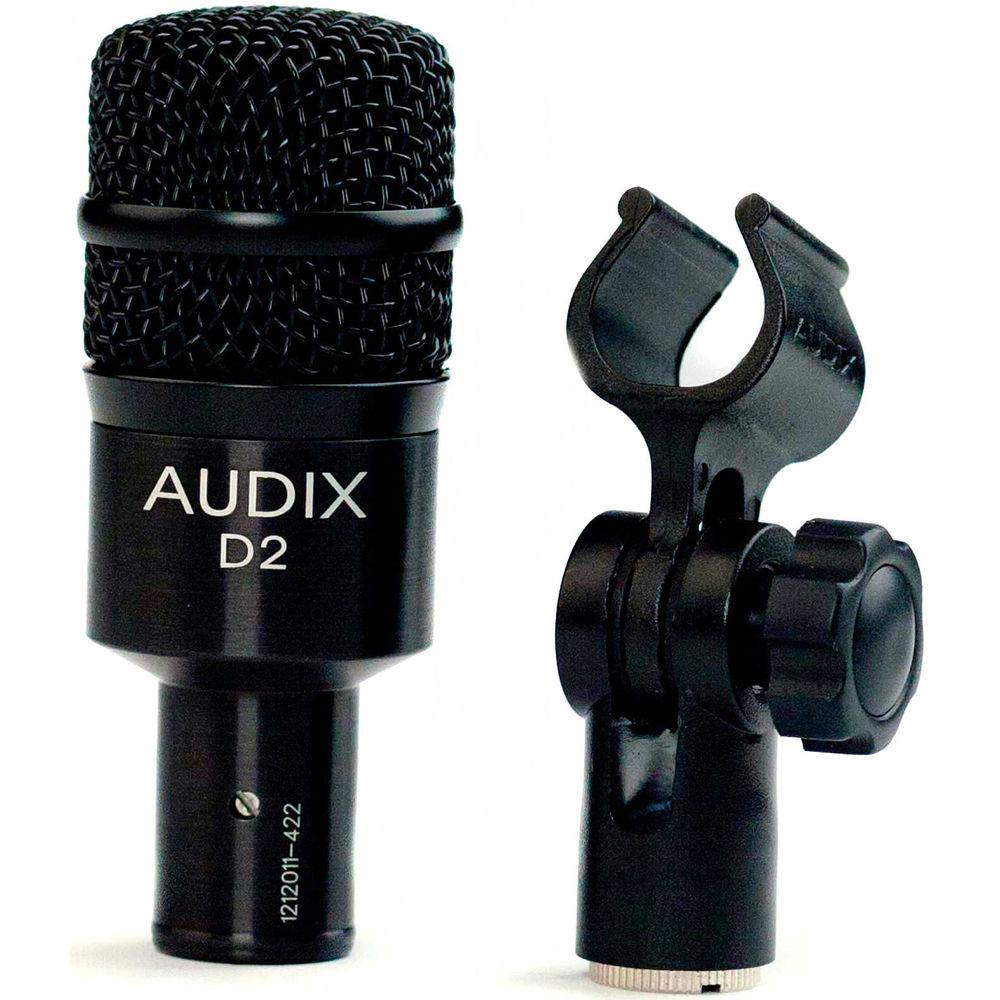

UPC: 687471121016 In the Box Audix D2 Dynamic Instrument Microphone Microphone Clip yqdtxxyxvuxwrsvzcxzeywwwwfsad Zippered Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix D2 Dynamic Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

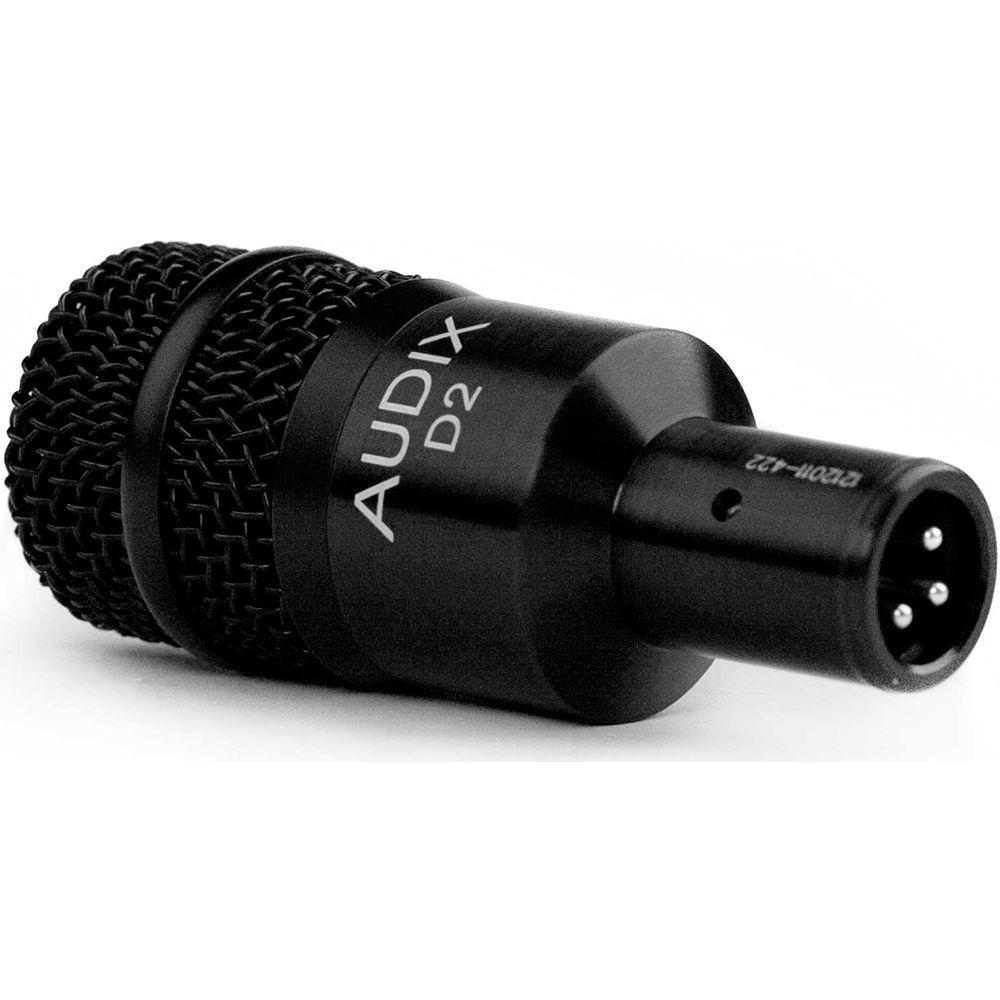

Technical parametersAudix D2 Specs | Transducer | Dynamic VLM Type B (Transformerless) | | Polar Pattern | Hypercardioid | | Frequency Response | 68 Hz to 18 kHz | | Sensitivity | 1.2 mV / Pa @ 1 kHz | | Off Axis Rejection | >30 dB | | Maximum SPL | ≥144 dB | | Power Requirements | Dynamic Transducer - no external power required | | Impedance | 280 ohms | | Output Connectors | 3-pin XLR male | | Pad | No | | Low Frequency Roll-Off | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector | | Dimensions | 3.9" (100 mm) | | Weight | 4.5 oz (128 g) | | | | Package Weight | 0.68 lb | | Box Dimensions (LxWxH) | 8.85 x 4.25 x 2.55" |
