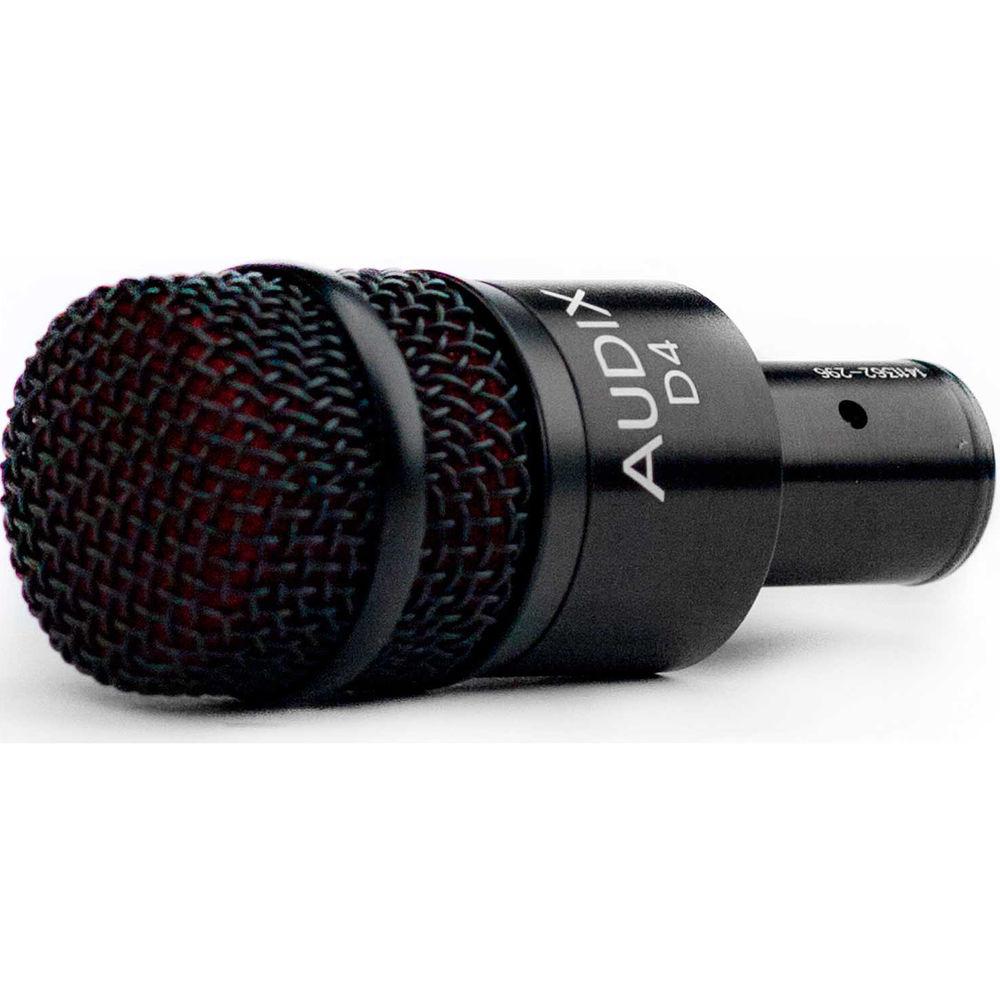

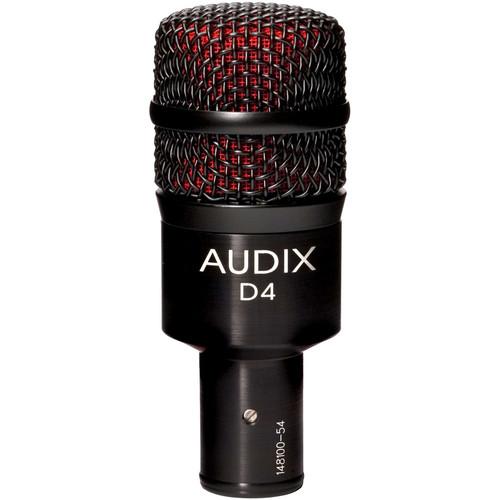

User Manual for Audix D4 - Hypercardioid Dynamic Drum and Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audix D4 - Hypercardioid Dynamic Drum
- Product category: Instrument Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Instrument Microphones
 |
User manual for the Audix D4 - Hypercardioid Dynamic Drum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The Audix D4 drum microphone offers both the frequency and sensitivity response useful for accurately recording drums and percussion instruments. The D4 features a dynamic element capable of reproducing signals with high transients peaks without producing the noise associated with distortion and overloading the capsule.Its 40 Hz to 18 kHz frequency response allows you to capture large instruments low fundamentals—instruments such as kick drums, djembes, kettle drums, floor toms, and more. Its hypercardioid polar pattern provides a tight pick up area at the front of the capsule, making sure that ambiance and noise present at the off-axis sections of the microphone are greatly reduced. - Hypercardioid Polar Pattern
- The hypercardioid polar pattern is effective in eliminating noise and ambiance at the off-axis sections of the microphone
- Extended Low-Frequency Response
- The 40 Hz to 18 kHz frequency response provides extended response at the low-frequency range. The extended range results in accurate pick up of large percussion instruments such as kick drum, djembe, kettle drum and floor toms
- High SPL Handling
- The D4 can accurately handle signals with sound pressure levels registering at 144 dB. Transient peaks are reproduced without distortion due to overload

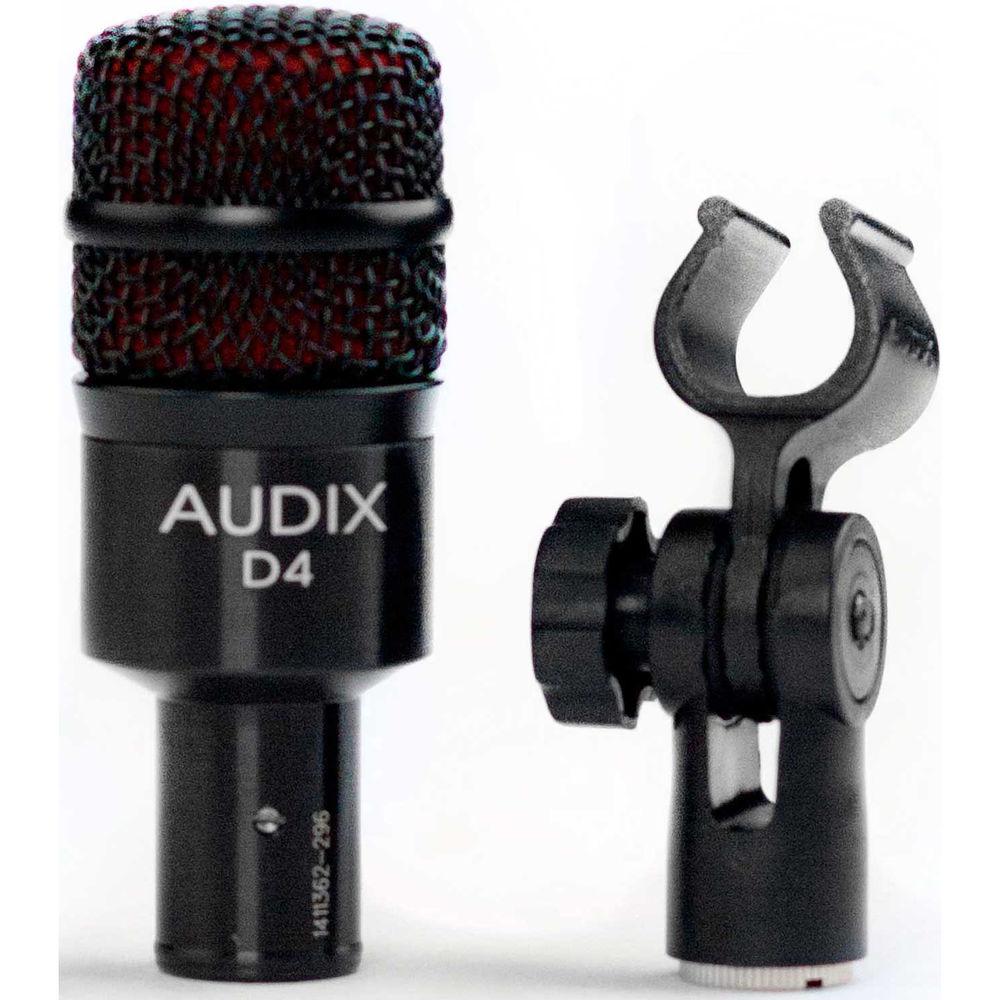

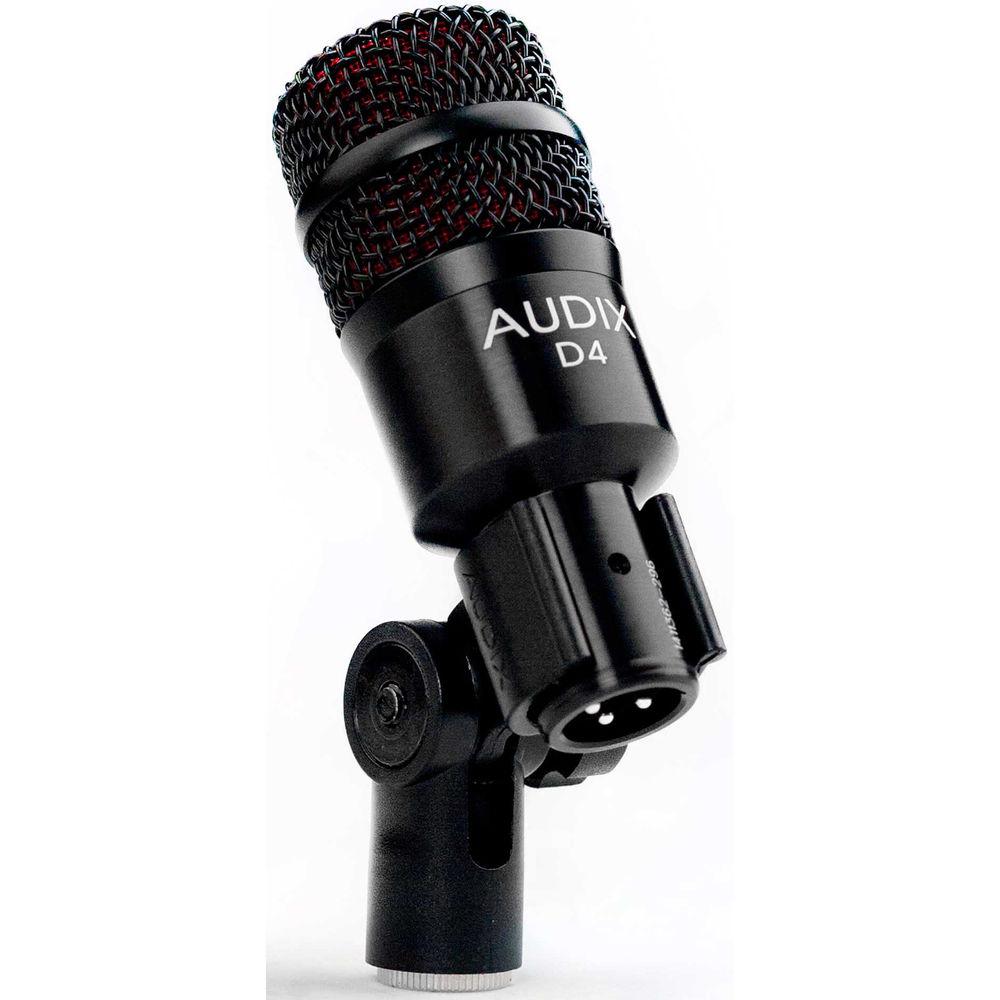

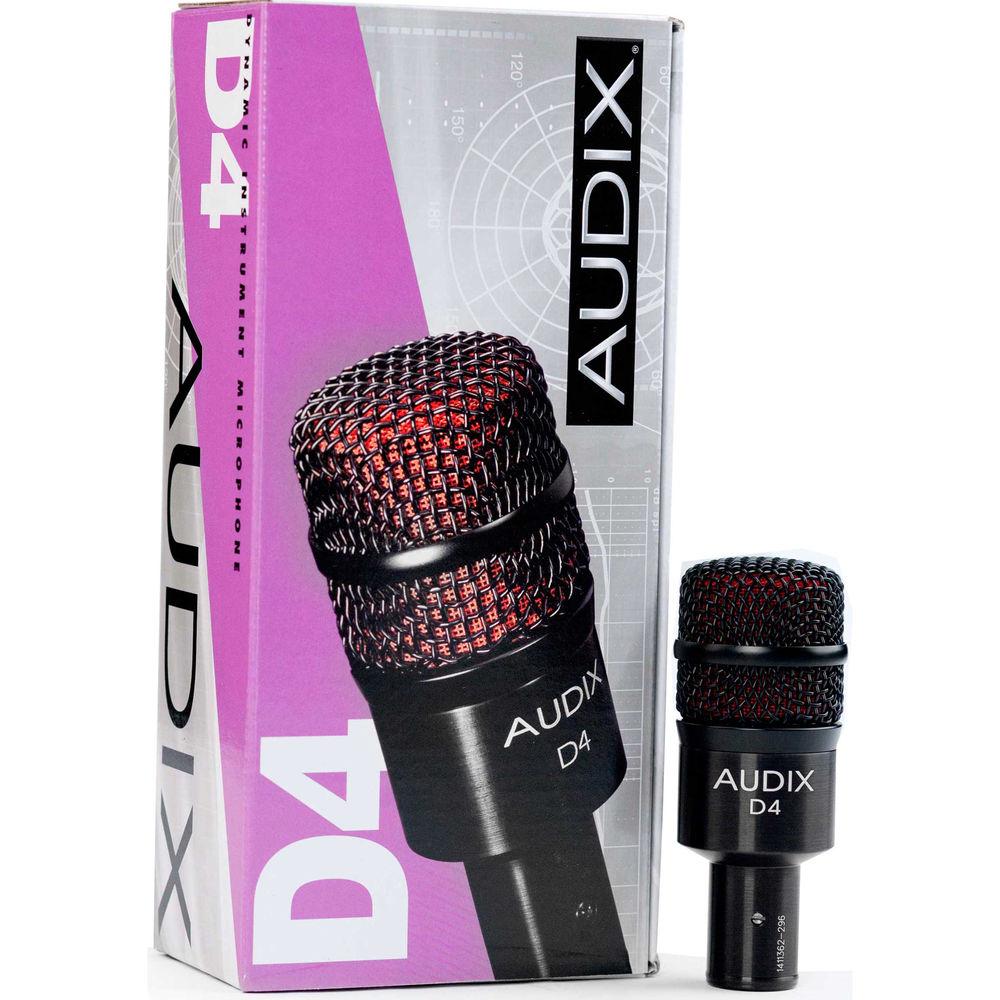

UPC: 687471121030 In the Box Audix D4 - Hypercardioid Dynamic Drum and Instrument Microphone MC2 5/8-inch 27-thread Microphone Clip Stand Adapter (European) Zippered Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix D4 - Hypercardioid Dynamic Drum and Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix D4 Specs | Transducer | Dynamic VLM Type D (Transformerless) | | Polar Pattern | Hypercardioid | | Frequency Response | 40 Hz to 18 kHz | | Sensitivity | 1.4 mV / Pa at 1 k | | Off Axis Rejection | > 20 dB | | Maximum Input Sound Level | 144 dB | | Power Requirements | Dynamic Transducer - no external power required | | Output Impedance | 280 Ohms | | Output Connectors | 3-pin XLR male | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 3.9" / 100 mm | | Weight | 4.5 oz / 128 grams | | | | Package Weight | 0.69 lb | | Box Dimensions (LxWxH) | 8.9 x 4.3 x 2.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
