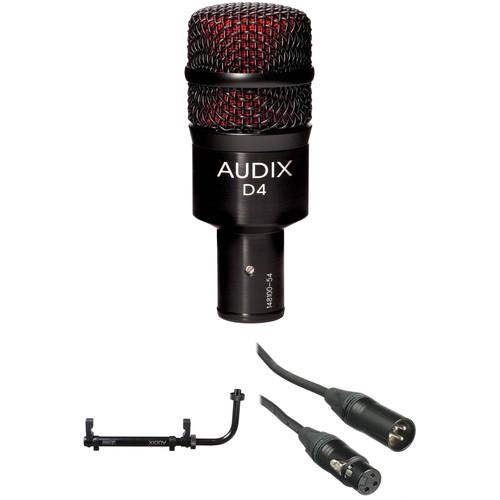

Audix D4 Instrument Microphone with Mounting

User Manual for Audix D4 Instrument Microphone with Mounting System and Cable Kit

• Product category: Instrument Microphones Audix
• Brand: Audix
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audix Instrument Microphones

Product description

• Audix D4 - Hypercardioid Dynamic Drum and Instrument Microphone
  • Audix D4
  The Audix D4 drum microphone offers both the frequency and sensitivity response useful for accurately recording drums and percussion instruments. The D4 features a dynamic element capable of reproducing signals with high transients peaks without producing the noise associated with distortion and overloading the capsule.Its 40 Hz to 18 kHz frequency response allows you to capture large instruments low fundamentals—instruments such as kick drums, djembes, kettle drums, floor toms, and more. Its hypercardioid polar pattern provides a tight pick up area at the front of the capsule, making sure that ambiance and noise present at the off-axis sections of the microphone are greatly reduced.
  Hypercardioid Polar Pattern
  • The hypercardioid polar pattern is effective in eliminating noise and ambiance at the off-axis sections of the microphone
  Extended Low-Frequency Response
  • The 40 Hz to 18 kHz frequency response provides extended response at the low-frequency range. The extended range results in accurate pick up of large percussion instruments such as kick drum, djembe, kettle drum and floor toms
  High SPL Handling
  • The D4 can accurately handle signals with sound pressure levels registering at 144 dB. Transient peaks are reproduced without distortion due to overload
  UPC: 687471121030
• Audix CAB-GRAB1 Microphone Mounting System for Guitar Amplifiers
  • Audix D4
  The Audix CAB-GRAB1 Microphone Mounting System is a durable mount for the Audix i-5 microphone. An adjustable clamp secures to most popular guitar amplifier cabinets and provides close-proximity positioning of the i-5 or like-sized microphones. UPC: 687471131404
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
  • Audix D4
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

• D4 - Hypercardioid Dynamic Drum and Instrument Microphone vzubytyafzvyveew
• MC2 5/8-inch 27-thread Microphone Clip
• Stand Adapter (European)
• Zippered Pouch
• Limited 5-Year Warranty

• CAB-GRAB1 Microphone Mounting System for Guitar Amplifiers

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Audix D4 - Hypercardioid Dynamic Drum and Instrument Microphone

  Transducer	Dynamic VLM Type D (Transformerless)
  Polar Pattern	Hypercardioid
  Frequency Response	40 Hz to 18 kHz
  Sensitivity	1.4 mV / Pa at 1 k
  Off Axis Rejection	> 20 dB
  Maximum Input Sound Level	144 dB
  Power Requirements	Dynamic Transducer - no external power required
  Output Impedance	280 Ohms
  Output Connectors	3-pin XLR male
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	3.9" / 100 mm
  Weight	4.5 oz / 128 grams

  Box Dimensions (LxWxH)	8.9 x 4.3 x 2.7"

• Audix CAB-GRAB1 Microphone Mounting System for Guitar Amplifiers

  Box Dimensions (LxWxH)	16.25 x 7.65 x 1.8"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
