User Manual for Audix f2 Dynamic Hypercardioid Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audix f2 Dynamic Hypercardioid Instrument Microphone
- Product category: Instrument Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Instrument Microphones
 |
User manual for the Audix f2 Dynamic Hypercardioid Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|

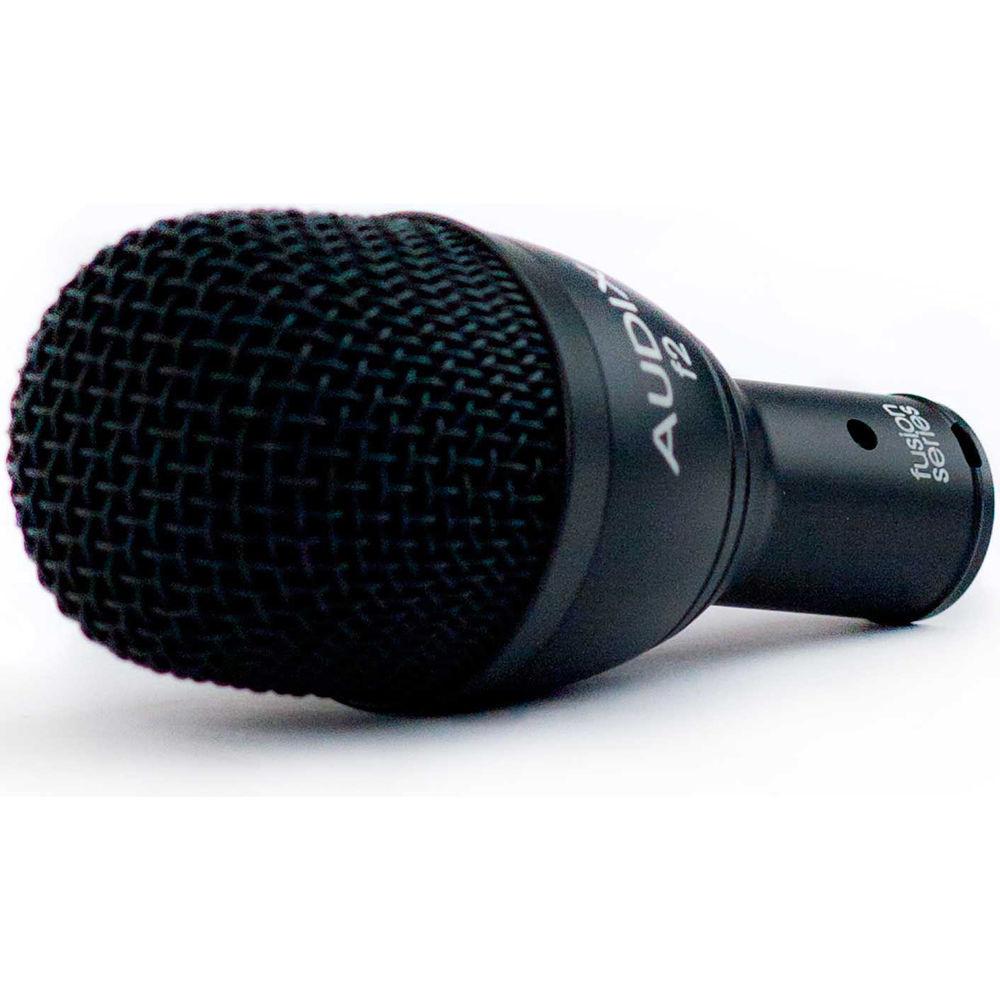

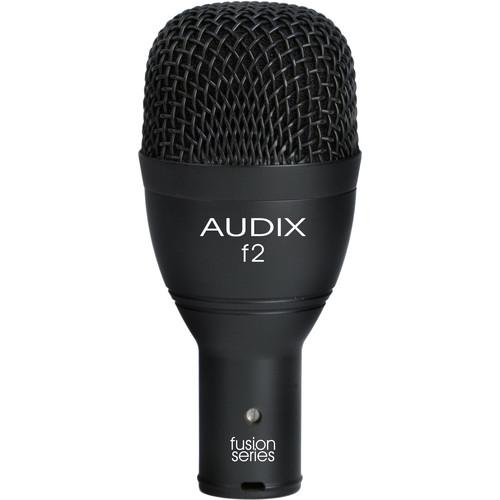

Product description The Audix f2 dynamic instrument microphone is an ideal recording tool for use on stage or in the studio. The Low Mass (LM) diaphragm offers natural, accurate sound reproduction and features a hypercardioid polar pattern to provide ample rejection of off-axis noise, and to minimize feedback. The mic has a linear frequency response, capable of accurately reproducing signals at very high sound pressure levels of up to 139dB without distortion.

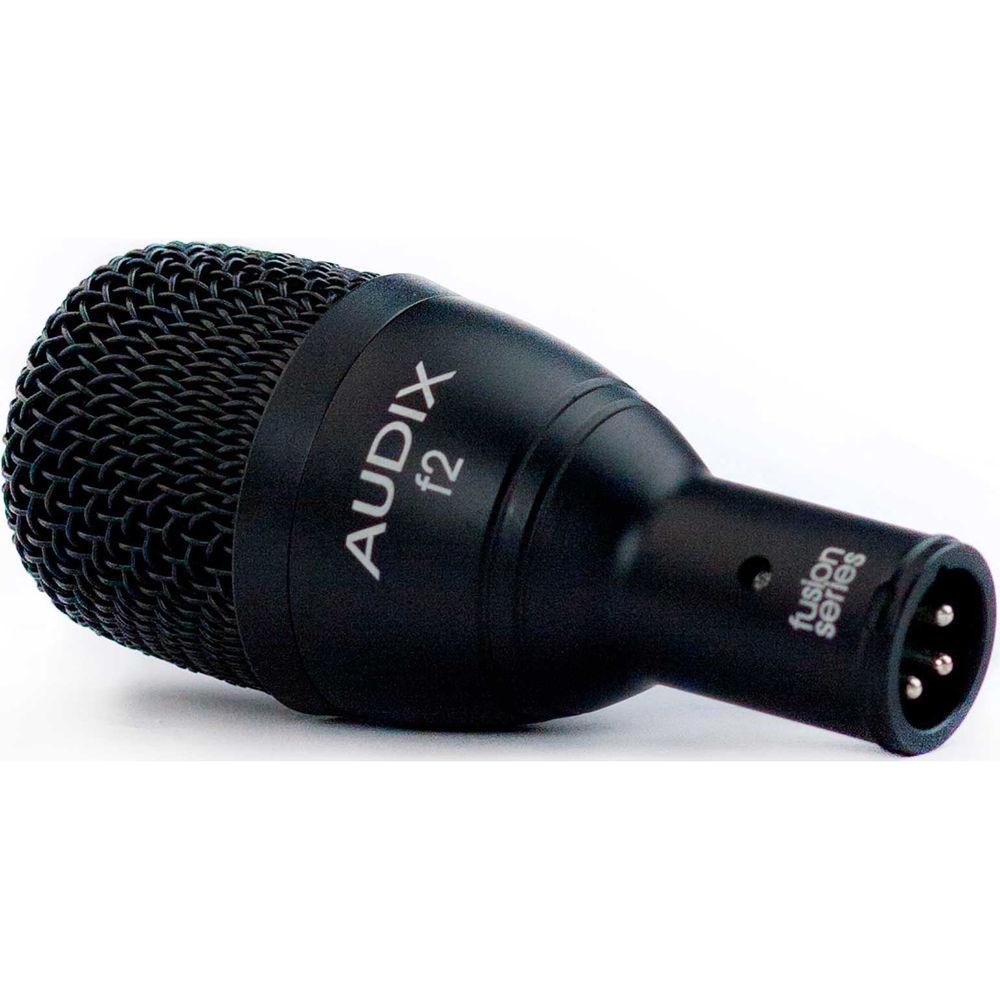

The mic is made in the USA, and features a precision-cast zinc alloy body with a steel grill, durable finish, and gold-plated XLR connector. A heavy-duty nylon mic clip and a carrying pouch are included. - Linear Frequency Response
- Tailored frequency response of 52 Hz to 15 kHz accentuates mid-range and mid-high frequencies while eliminating low-frequency noise
- LM Diaphragm
- The Low Mass (LM) diaphragm provides natural, accurate sound reproduction
- Hypercardioid Polar Pattern
- The hypercardioid polar pattern maximizes rejection of off-axis noise, helping to isolate the desired sound source and minimize feedback
- High SPL Handling
- The f2 is designed to accurately reproduce high audio peak levels at up to 139dB without noise or distortion
- Transformerless Design
- The mic's transformerless design and balanced output provide interference-free performance, even with long cable runs
- Durable Body
- Made in the USA, the mic features a zinc alloy body with a steel grill, black coat finish, and a gold-plated XLR connector for terrific durability
- Accessories Included

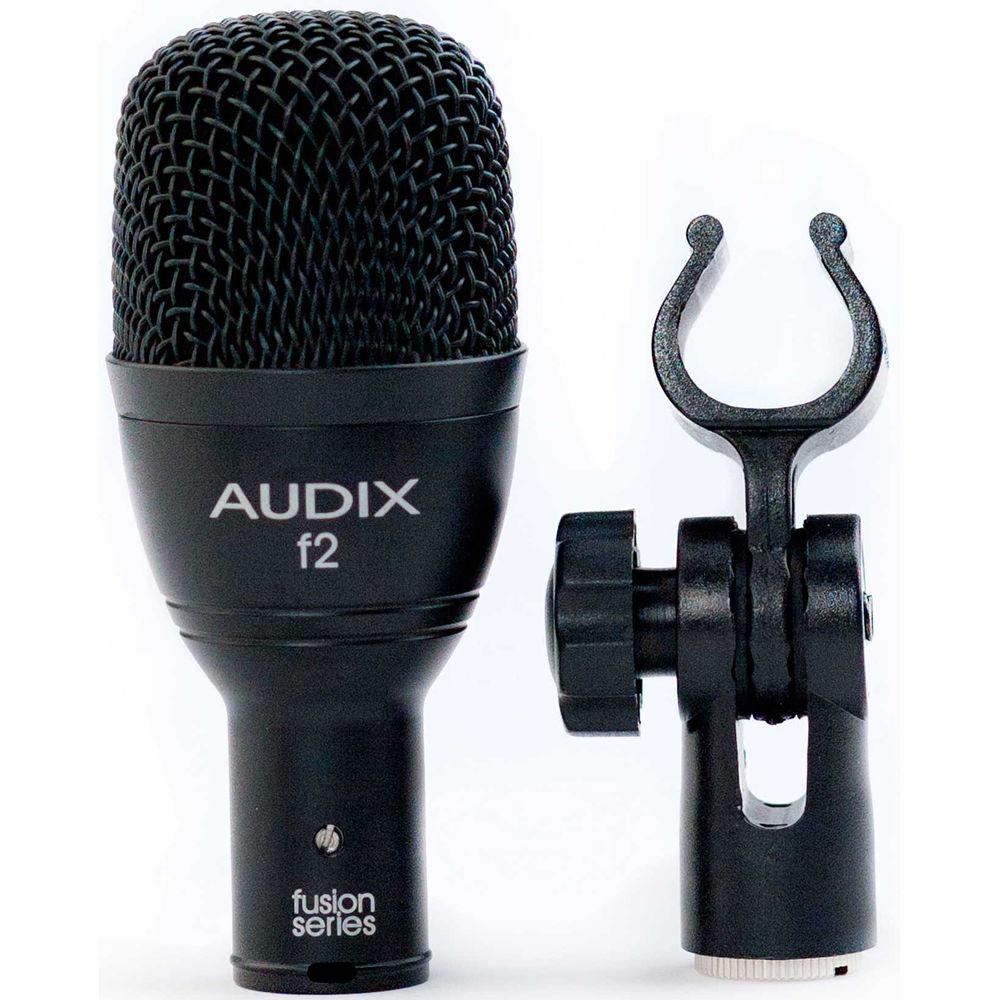

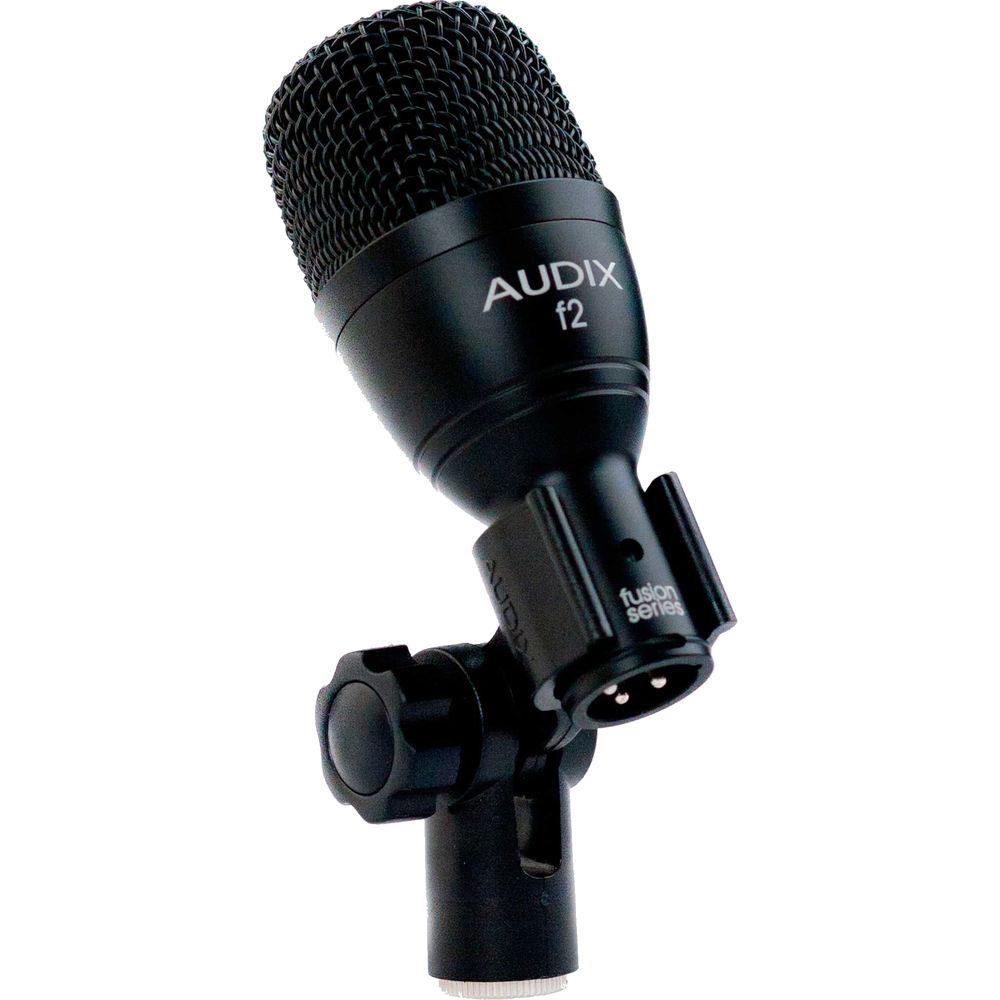

- The mic comes complete with a heavy-duty mic clip and carrying pouch

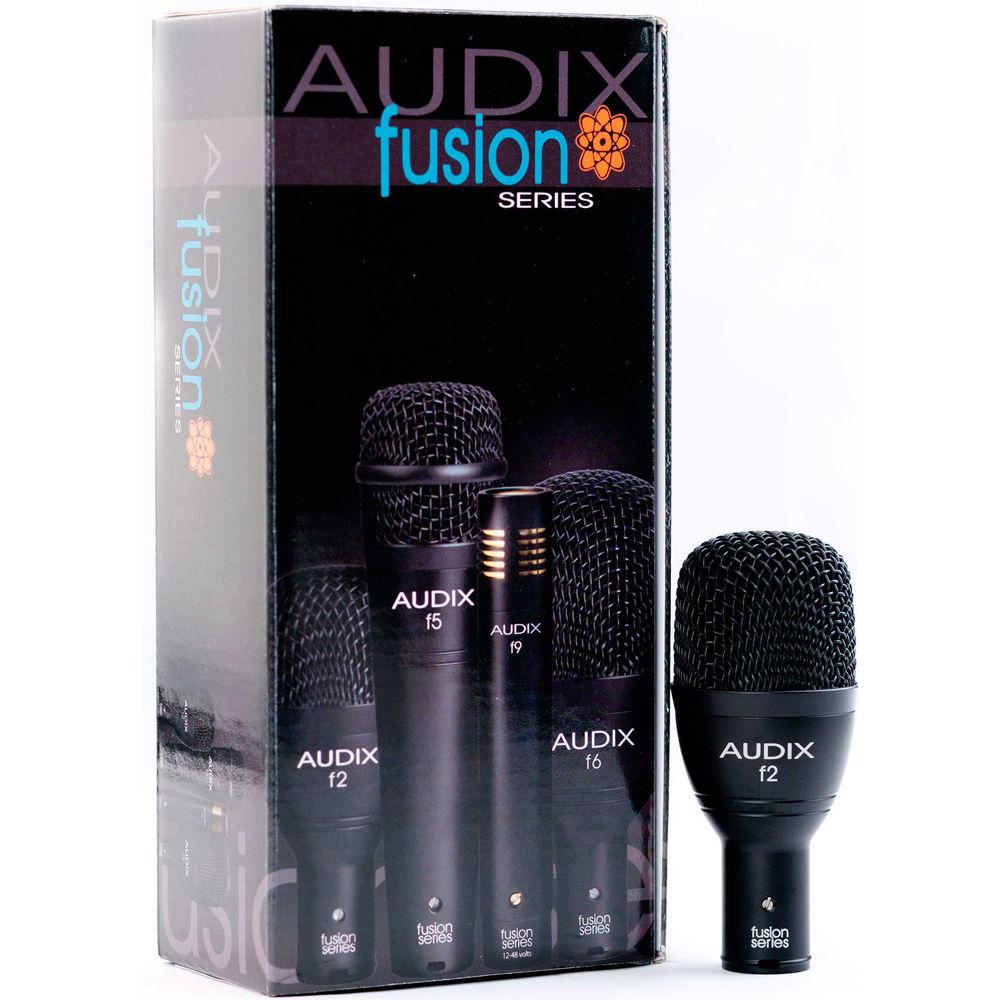

UPC: 687471141083 In the Box Audix f2 Dynamic Hypercardioid Instrument Microphone Carrying Pouch Heavy-Duty Nylon Mic Clip 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix f2 Dynamic Hypercardioid Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix f2 Specs | Transducer | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Response | 52 Hz - 15 kHz | | Maximum Input Sound Level | 139 dB | | Power Requirements | None | | Output Impedance | 580 Ohms | | Output Connectors | Gold-Plated 3-Pin XLR Male | | Length | 4.09" (104 mm) | | Weight | 8.7 oz (247 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.9 x 4.2 x 2.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
