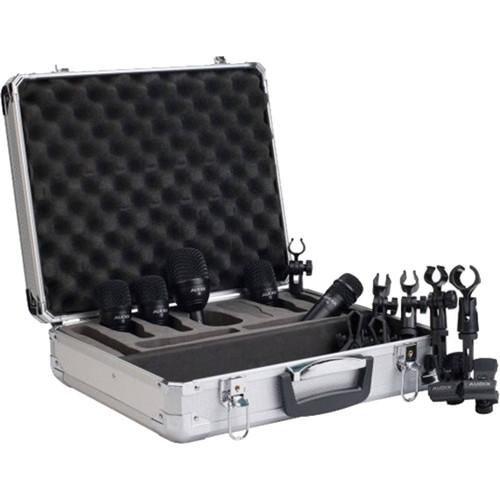

Product description The FP5 Fusion Series Drum Microphone Package from Audix consists of an f5 dynamic snare mic, three f2 dynamic tom mics, an f6 dynamic kick drum mic, four mic clips, four pivot mounts, one mic stand adapter, and an aluminum carrying case.
The Fusion Series microphones, which are designed, assembled and tested by Audix in the USA, can be used for professional stage and studio applications. All mics come with high impact mic stand adapters and are packed in a heavy duty foam lined aluminum carrying case for safe keeping when the products are not in use. - f5 Fusion Series Hypercardioid Instrument Microphone The Audix f5 Fusion Series Hypercardioid Instrument Microphone is a versatile, cost effective dynamic microphone that is well suited for stage and studio applications. The microphone features a hypercardioid polar pattern which is most effective in rejecting off-axis noise and feedback. Its tailored frequency response is optimized to capture snare drums, percussion, amplifier cabinets and more.
- For use with snare drums, bongos, timbales, guitar cabinets and general purpose acoustic instruments
- Tailored frequency response
- Upper mid-range attack and clarity
UPC: 687471141106 - f2 Dynamic Hypercardioid Instrument Microphone The Audix f2 dynamic instrument microphone is an ideal recording tool for use on stage or in the studio. The Low Mass (LM) diaphragm offers natural, accurate sound reproduction and features a hypercardioid polar pattern to provide ample rejection of off-axis noise, and to minimize feedback. The mic has a linear frequency response, capable of accurately reproducing signals at very high sound pressure levels of up to 139dB without distortion.
The mic is made in the USA, and features a precision-cast zinc alloy body with a steel grill, durable finish, and gold-plated XLR connector. A heavy-duty nylon mic clip and a carrying pouch are included. - Linear Frequency Response
- Tailored frequency response of 52 Hz to 15 kHz accentuates mid-range and mid-high frequencies while eliminating low-frequency noise
- LM Diaphragm
- The Low Mass (LM) diaphragm provides natural, accurate sound reproduction
- Hypercardioid Polar Pattern
- The hypercardioid polar pattern maximizes rejection of off-axis noise, helping to isolate the desired sound source and minimize feedback
- High SPL Handling
- The f2 is designed to accurately reproduce high audio peak levels at up to 139dB without noise or distortion
- Transformerless Design
- The mic's transformerless design and balanced output provide interference-free performance, even with long cable runs
- Durable Body
- Made in the USA, the mic features a zinc alloy body with a steel grill, black coat finish, and a gold-plated XLR connector for terrific durability
- Accessories Included
- The mic comes complete with a heavy-duty mic clip and carrying pouch
UPC: 687471141083 - f6 Fusion Series Hypercardioid Low-Frequency Instrument Microphone The f6 Fusion Series Hypercardioid Low-Frequency Instrument Microphone from Audix is a dynamic microphone with a tailored low-frequency response, that is well suited for capturing kick drums, bass cabinets, and more. The microphone features a hypercardioid polar pattern which is most effective in rejecting off-axis noise and feedback. In addition to the low-end punch, the f6 will also deliver suitable mid-range clarity in both recording and sound reinforcement applications.
- For use with kick drums, bass cabinets, acoustic bass, and cajon
- Tailored frequency response
- Low-end punch and mid-range clarity
- Microphone Clip Audix D-clip microphone clip mounts to standard 5/8" threads and also includes a 3/8" thread adapter for European microphone stands. UPC: 687471131084
- D-Flex Dual Pivot Clamp Style Mount The Audix D-Flex is a device used to mount Micro-D series microphones and enables them to be positioned in ways unachievable without it. The D-Flex features dual pivot joints and a wide-jaw clamp for firm mounting and accurate positioning on drum and percussion instruments. UPC: 687471131015
- MC-1 Microphone Stand Adapter The Audix MC-1 microphone stand mount is designed for the OM series and VX10 handheld microphones. Mounts to a standard 5/8" thread, but also includes a 3/8" thread adapter for European standards. UPC: 687471111024
In the Box Bundle Items f5 Fusion Series Hypercardioid Instrument Microphone wuqewtsqbqascrxswdrrsuzxuq 3 x f2 Dynamic Hypercardioid Instrument Microphone - Heavy-Duty Nylon Mic Clip
f6 Fusion Series Hypercardioid Low-Frequency Instrument Microphone 4 x Microphone Clip 4 x D-Flex Dual Pivot Clamp Style Mount wuqewtsqbqascrxswdrrsuzxuq MC-1 Microphone Stand Adapter
Also Includes - Aluminum Carry Case with Foam Inserts
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix FP5 Fusion Series Drum Microphone Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - f5 Fusion Series Hypercardioid Instrument Microphone
| Transducer | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Response | 55 Hz to 15 kHz | | Maximum Input Sound Level | > / - 137 dB | | Output Impedance | 580 ohms | | Output Connectors | 3-pin XLR | | Weight | 10 oz (283 g) | | | | Box Dimensions (LxWxH) | 8.8 x 4.3 x 2.6" | - f2 Dynamic Hypercardioid Instrument Microphone
| Transducer | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Response | 52 Hz - 15 kHz | | Maximum Input Sound Level | 139 dB | | Power Requirements | None | | Output Impedance | 580 Ohms | | Output Connectors | Gold-Plated 3-Pin XLR Male | | Length | 4.09" (104 mm) | | Weight | 8.7 oz (247 g) | | | | Box Dimensions (LxWxH) | 8.9 x 4.2 x 2.6" | - f6 Fusion Series Hypercardioid Low-Frequency Instrument Microphone
| | | Transducer | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Range | 40 Hz to 16 kHz | | Maximum SPL | 140 dB SPL | | Impedance | 580 Ohms | | Sensitivity | 1.2 mV/Pa at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 4.76" / 120.90 mm | | Weight | 11 oz / 312 g | - Microphone Clip
| | | Box Dimensions (LxWxH) | 11.0 x 5.1 x 1.5" | - D-Flex Dual Pivot Clamp Style Mount
| | | Box Dimensions (LxWxH) | 8.0 x 4.7 x 2.45" | - MC-1 Microphone Stand Adapter
| | | Box Dimensions (LxWxH) | 2.362 x 1.417 x 1.181" |
