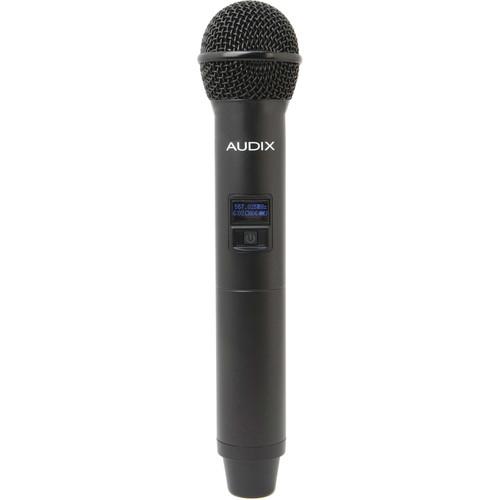

User Manual for Audix H60 OM5 64 MHz Handheld Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule Click to enlarge the picture
Contents of the user manual for the Audix H60 OM5 64 MHz Handheld
- Product category: Wireless Transmitters Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Wireless Transmitters
|
User manual for the Audix H60 OM5 64 MHz Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The Audix H60 OM5 is a Performance Series handheld microphone transmitter with an OM5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 48 Hz to 19 kHz frequency response with a slight high-frequency rise, and a high maximum SPL of approximately 144 dB. A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching. - 64 MHz bandwidth from 522 to 586 MHz covers A and B frequency groups
- High-contrast LCD shows group, channel, frequency, and battery status
- Durable tour-worthy metal housing
- Modular capsule design allows easy swapping between dynamic and condenser capsules (available separately)
- Convenient soft mute button for quick on/off switching
- Two supplied AA batteries provide up to 14 hours of run time
- Selectable 10/30mW RF power output
- Three selectable gain settings—0 dB, -6 dB, and -12 dB
- Dent-resistant steel mesh grille
- Includes mic clip and pouch
UPC: 687471881040 In the Box Audix H60 OM5 64 MHz Handheld Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule (522 to 586 MHz) 2 x AA Batteries Mic Clip Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix H60 OM5 64 MHz Handheld Microphone Transmitter with OM5 Hypercardioid Dynamic Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix OM5 Specs | Type | Dynamic | | Polar Pattern | Hypercardioid | | Capsule | VLM Type C | | Frequency Response | 48 Hz to 19 kHz | | Maximum SPL | ≥144 dB | | Impedance | 200 Ohms | | Sensitivity | 2 mV/Pa at 1 kHz | | Off-Axis Performance | Rejection >30 dB | | RF Power Output | 10/30 mW | | Bandwidth | 64 MHz | | Gain Adjustment | 0 dB, -6 dB, -12 dB | | Battery Life | Approximately 14 hours | | Current Consumption | 110 mA typical | | Power Requirement | 2 x AA 1.5 V batteries | | Dimensions (Diam. x L) | 2.1 x 10.4" / 53 x 265 mm | | Weight | 11 oz / 312 g without batteries |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
