Product description

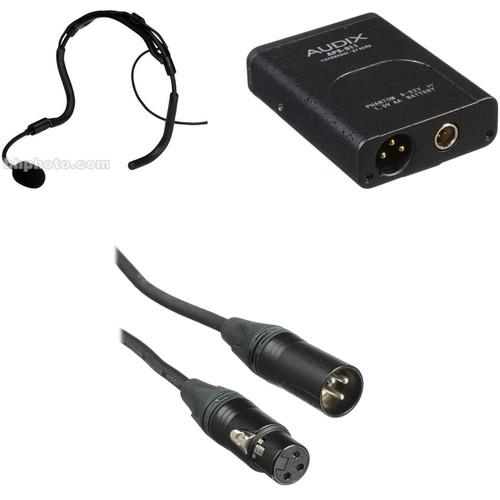

• Audix HT2 -Condenser Headworn Microphone The black HT2 from Audix is a professional pre-polarized headworn microphone with a supercardioid polar pattern that is designed for live stage, presentation, and broadcast applications. It can be used when paired with the Audix RAD360 wireless (sold separately) to capture vocals from a comfortable distance of 2 to 3" off of the corner of the mouth. The headworn microphone has a frequency response of 50 Hz to 15 kHz and can handle very-high sound pressure levels without distortion. It is easy to position, lightweight, and has roadworthy construction. Built with a rubber coated metal frame and a high-performance 5 mm capsule, it includes a 3' cable that terminates with a mini 3-pin XLRF connector. In addition, a foam windscreen for reducing wind, sibilance, and pop noise is also included.
  Supercardioid Polar Pattern
  • The HT2 features a supercardioid polar pattern, providing excellent rejection of off-axis audio and noise. The result is high gain-before-feedback while using near monitor speakers
  Tailored Frequency Response
  • The tailored frequency response of 50 Hz to 15 kHz accentuates the frequencies associated with speech while minimizing low frequency noise and rumble
  UPC: 687471591055
• Audix APS911 Phantom Power Supply and Adapter The Audix APS911 Battery-Operated Phantom Power Supply and Converter is a battery-operated phantom power supply for energy-efficient electret mics that can also adapt 48V phantom power from a mixer or preamp to the mini XLR connection found on these mics. Use it with Audix's lavalier, hanging, boundary plate, and HT2 headset microphones.

  Special extras on the APS911 include an on/off switch and a bass roll-off feature.
  Battery-Operated Phantom Power
  • Using a single 1.5V AA battery, the Battery-Operated Power Supply outputs 9V of phantom power for energy-efficient electret mics including Audix lavalier, hanging, boundary plate, and headset models.
  Adapt Standard Phantom Power for Electret Mics
  • The Phantom Power Adapter also mates with phantom power sources on standard XLR connectors (such as 48V mixer channels) and assures that power is supplied to the correct mini XLR pins for Audix electret mics. In this case, the APS911 is in passive mode, passing whatever current is supplied.
  On/Off Switch
  • A built-in on/off switch helps conserve battery life and also acts as a mode selector when using the APS911 as either a battery-operated phantom power source or a passive phantom power converter.
  Bass Roll-Off
  • Clean your recordings of low-end rumble, structural noise transmitted through a mic stand, or unused frequencies by activating the handy 150Hz low cut filter. Since most human speech occurs above this cutoff, you'll want to use it routinely for voice recording.

  Compatible with:

  Audix Microphones
  • ADX10, ADX40, ADX60, HT5, ADX10FL, HT2
  UPC: 687471271100
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

• HT2 -Condenser Headworn Microphone awfbvqadwxyswutxbd
• Foam Windscreen
• 3' Mic Cable with Mini XLRF Connector
• Limited 1-Year Warranty

• APS911 Phantom Power Supply and Adapter

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Audix HT2 -Condenser Headworn Microphone

  Transducer	Pre-polarized Condenser
  Polar Pattern	Supercardioid
  Frequency Response	50 Hz to 15 kHz
  Output Impedance	250 Ohms balanced
  Maximum Sound Pressure Level (SPL)	≥ 140 dB
  Power Requirements	5-52 V phantom
  Output Connectors	3-pin XLR female
  Polarity	Positive pressure on diaphragm produces positive voltage on pin-2 relative to pin-3 of output XLR connector
  Material of Construction	Flexible steel alloy
  Dimensions	Not specified by manufacturer
  Weight	24 oz (68 g)

  Box Dimensions (LxWxH)	10.0 x 6.0 x 3.85"

• Audix APS911 Phantom Power Supply and Adapter

  Input Connectors	Mini XLR Female
  Output Connectors	3-Pin XLR Male
  Adapter	Adapts 9-48V Phantom Power on XLR for use with small mics bearing mini XLR connectors
  Battery	1.5V AA
  Power	9V Phantom Power Ouput from a 1.5V Battery Also adapts incoming 9-48V phantom power for use with electret mics in passive mode
  Dimensions	3.27 x 0.87 x 2.48" (8.3 x 2.2 x 6.3 cm)
  Weight	8.0 oz (227.76 g)

  Box Dimensions (LxWxH)	8.85 x 4.25 x 2.6"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
