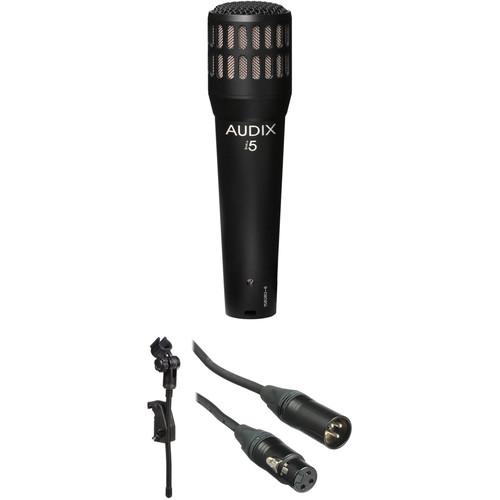

User Manual for Audix i5 Dynamic Mic and Drum Mount Kit Click to enlarge the picture
Contents of the user manual for the Audix i5 Dynamic Mic and Drum
- Product category: Dynamic Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Dynamic Microphones
|
User manual for the Audix i5 Dynamic Mic and Drum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description Need to mic up your snare or toms without crowding the drummer with mic stands? Check out the Audix i5 Dynamic Mic and Drum Mount Kit from . Consisting of an i5 dynamic microphone, a D-Vice rim mount clamp, and an XLR cable, the kit allows you to mount the i5 directly to the rim of your snare or tom drum for close miking without the need for a mic stand. - Audix i5 Dynamic Instrument Cardioid Microphone
- Mic Shootout 3: Dynamic Microphones
The Audix i5 instrument microphone is an ideal solution for sound reinforcement and recording applications. The dynamic capsule features a cardioid polar pattern with a linear frequency response, capable of accurately reproducing signals at high sound pressure levels (SPL). The cardioid pattern effectively minimizes noise and ambiance at the off-axis sections of the capsule, reducing feedback and audio leakage caused by adjacent instruments. The i5 is ideal for capturing snare drum, percussion, guitar and bass cabinets, horns and vocals. - Linear Frequency Response
- Tailored frequency response of 50 Hz to 16 kHz accentuates midrange and mid-high frequencies while eliminating low-frequency noise.
- High SPL Handling
- The i5 is designed to accurately reproduce high audio peak levels without noise and distortion.
- Cardioid Polar Pattern
- The cardioid polar pattern attenuates signal at the sides of the capsule. The result eliminates noise and ambiance caused by speakers, monitors and adjacent instruments and vocalists.
- Durable Body
- The i5 features a zinc alloy body with a steel grille and black e-coat finish for great durability.
- Accessories Included
- The mic comes complete with a mic clip and carrying pouch.
UPC: 687471121108 - Audix Drum Microphone Clamp
- Mic Shootout 3: Dynamic Microphones
The Audix D-Vice Spring-Loaded Rim-Mount Clamp DVICE is a sturdy percussion clamp that offers you the ability to rim mount your Fusion Series microphones on a drum. It eliminates the need for bulky microphone stands. This unit's goose-neck design and spring-loaded clamp make it practical and easy to use. - Perfect Microphone Positioning
- Position your microphone perfectly on your drum with this convenient clamp.
UPC: 687471131060 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
- Mic Shootout 3: Dynamic Microphones
The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - i5 Dynamic Instrument Cardioid Microphone cqxzdcvfrfzcrsdcwcq
- Carrying Pouch
- Unbreakable Nylon Mic Clip
- Limited 5-Year Warranty
- D-Vice Spring-Loaded Rim-Mount Clamp DVICE
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix i5 Dynamic Mic and Drum Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Audix i5 Dynamic Instrument Cardioid Microphone
| Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 16 kHz | | Maximum Input Sound Level | 140 dB | | Power Requirements | None Dynamic, Requires No Phantom or Battery Power | | Output Impedance | 280 Ohms | | Output Connectors | Switchcraft XLR-3M Type | | Length | 5.6" / 142 mm | | Weight | 8.7 oz / 248 g | | | | Box Dimensions (LxWxH) | 8.9 x 4.2 x 2.4" | - Audix Drum Microphone Clamp
| Construction | Not specified by manufacturer | | Finish | Black | | | | Box Dimensions (LxWxH) | 11.0 x 4.7 x 1.5" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
