User Manual for Audix M1255B-HC Miniature Condenser Microphone with 25' Cable Click to enlarge the picture
Contents of the user manual for the Audix M1255B-HC Miniature Condenser Microphone with
- Product category: Small Diaphragm Condenser Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Small Diaphragm Condenser
|
User manual for the Audix M1255B-HC Miniature Condenser Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|

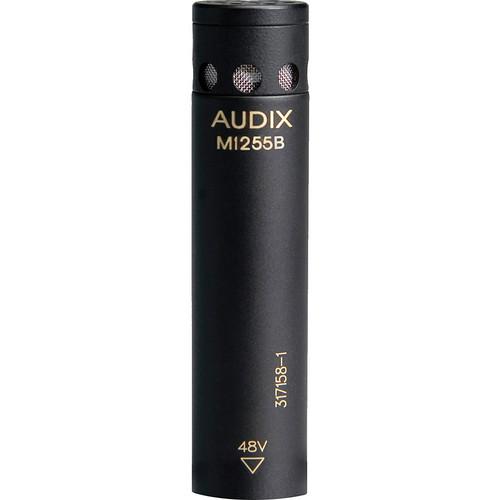

Product description The black M1255B-HC Miniature Condenser Microphone from Audix measures 2.1" (54mm) in length, features a hypercardioid polar pattern, and contains an integrated preamplifier. It offers a sensitive capsule and a wide frequency response suitable for capturing both vocals and instruments. Additionally, a high output enables long cable runs for use with group vocal capturing, stage performances, and similar scenarios. There is an included detachable 25-foot cable with mini XLR-female and standard XLR-male connections. The hypercardioid polar pattern is highly effective in off-axis noise and feedback rejection. The microphone can be used in a wide variety of applications, including choir capturing, overhead cymbals, speech, ambient room capturing, and percussion. A microphone stand adapter, hanging clip, and external foam windscreen are also included. - Miniature Profile
- The miniature condenser microphone measures 2.1" (54mm) in length, allowing it to be easily and inconspicuously mounted on instruments.
- High Output
- The M1255B-HC features a high output for long cable runs and can be used for group vocal capturing, stage performances, and similar applications.
- Hypercardioid Polar Pattern
- The hypercardioid polar pattern is highly effective in off-axis noise and feedback rejection.
- Internal Preamplifier
- The M1255B-HC is a 48V phantom powered condenser microphone with a miniature, internal preamplifier and detachable cable.
UPC: 687471291696 In the Box Audix M1255B-HC Miniature Condenser Microphone with 25' Cable (Hypercardioid, Black) Mini XLR Female to XLR Male Cable - 25' (Black) MC-MICRO Microphone Clip with 5/8" Thread Hanger-MICRO Clip WS1218 Foam Windscreen Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix M1255B-HC Miniature Condenser Microphone with 25' Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix M1255B-HC Specs | | | Transducer | Condenser | | Diaphragm | 0.47" / 12 mm | | Polar Pattern | Hypercardioid | | Frequency Range | 50 Hz to 19 kHz | | Signal to Noise Ratio | 73 dB A-Weighted | | Equivalent Noise Level | 21 dB A-Weighted | | Maximum SPL | 130 dB SPL | | THD | 0.5% | | Impedance | 150 Ohms | | Sensitivity | 32 mV/Pa at 1 kHz | | Dynamic Range | 109 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 18 to 52 V | | Length | 2.13" / 54 mm | | Weight | 0.56 oz / 16 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 10.9 x 2.4 x 2.2" |
