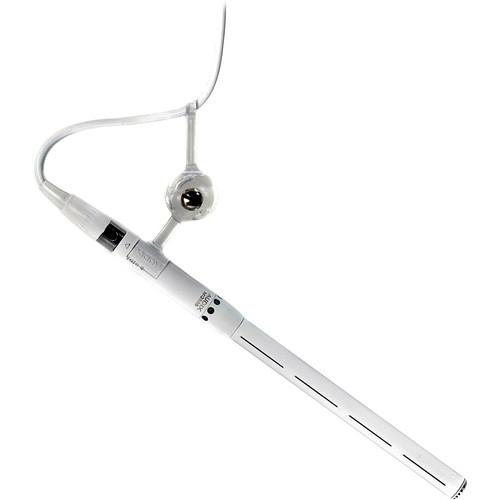

Product description The white M1255BW-S Miniature Condenser Microphone from Audix measures 2.1" (54mm) in length, features a supercardioid polar pattern, and contains an integrated preamplifier. It offers a sensitive capsule and a wide frequency response suitable for capturing both vocals and instruments. Additionally, a high output enables long cable runs for use with group vocal capturing, stage performances, and similar scenarios. There is an included detachable 25-foot cable with mini XLR-female and standard XLR-male connections. The supercardioid polar pattern provides a tight pick up area with maximum signal rejection at the off-axis sections. The microphone can be used in a wide variety of applications, including choir capturing, overhead cymbals, speech, ambient room capturing, and percussion. A microphone stand adapter, hanging clip, and external foam windscreen are also included. - Miniature Profile
- The miniature condenser microphone measures 2.1" (54mm) in length, allowing it to be easily and inconspicuously mounted on instruments.
- High Output
- The M1255BW-S features a high output for long cable runs and can be used for group vocal capturing, stage performances, and similar applications.
- Supercardioid Polar Pattern
- The supercardioid polar pattern provides a tight pick up area with maximum signal rejection at the off-axis sections.
- Internal Preamplifier
- The M1255BW-S is a 48V phantom powered condenser microphone with a miniature, internal preamplifier and detachable cable.
UPC: 687471291788 In the Box Audix M1255BW-S Miniature Condenser Microphone with 25' Cable (Supercardioid, White) Mini XLR Female to XLR Male Cable - 25' (Black) yeevzurefcduwserezwaazusfcdbau MC-MICRO Microphone Clip with 5/8" Thread Hanger-MICRO Clip WS1218 Foam Windscreen Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix M1255BW-S Miniature Condenser Microphone with 25' Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix M1255BW-S Specs | | | Transducer | Condenser | | Diaphragm | 0.47" / 12 mm | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 19 kHz | | Signal to Noise Ratio | 73 dB A-Weighted | | Equivalent Noise Level | 21 dB A-Weighted | | Maximum SPL | 130 dB SPL | | THD | 0.5% | | Impedance | 150 Ohms | | Sensitivity | 60 mV/Pa at 1 kHz | | Dynamic Range | 109 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 18 to 52 V | | Length | 2.13" / 54 mm | | Weight | 0.56 oz / 16 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 10.9 x 2.4 x 1.5" |
