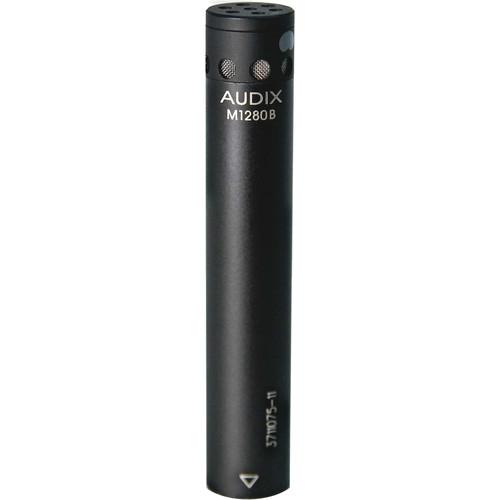

User Manual for Audix M1280-BHC Condenser Hypercardioid Microphone Click to enlarge the picture
Contents of the user manual for the Audix M1280-BHC Condenser Hypercardioid Microphone
- Product category: Small Diaphragm Condenser Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Small Diaphragm Condenser
|
User manual for the Audix M1280-BHC Condenser Hypercardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The black M1280-BHC Condenser Hypercardioid Microphone from Audix is a miniaturized condenser microphone with a fully integrated pre-amp and detachable cable, has complete immunity from RF interference caused by cell phones and GSM devices. The M1280-BHC is equipped with a hypercardioid capsule and is also available with omni or shotgun capsules. The microphone has a very wide frequency response and can be used in a wide variety of live, studio and broadcast applications. It can be used for drums, percussion, musical instruments, overhead stage miking, podiums, conferences, and presentations. General - Lightweight, small profile
- Miniaturized pre-amp circuitry
- No external power adapter needed
- 12mm gold vapor diaphragm
- Immune to RF interference
- Extremely low noise, high SPL handling
Applications -
- Overhead mic for choir, group vocal
- Acoustic instruments
- Ambient room miking
- Symphonic area miking
- Speech, presentation, podium
- Cymbals, percussion
- Acoustic guitar
UPC: 687471291429 In the Box Audix M1280-BHC Condenser Hypercardioid Microphone (Black) Mini XLR Female to XLR Male Cable - 25' (Black) Hanger-MICRO Clip MC-MICRO Microphone Clip with 5/8" Thread WS1218 Foam Windscreen Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix M1280-BHC Condenser Hypercardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix M1280-BHC Specs | Transducer Type | Condenser | | Frequency Response | 40 Hz to 20 kHz | | Polar Pattern | Hypercardioid | | Output Impedance | 150 Ohms | | Sensitivity | 10 mV (C/HC), 12 mV (O), 18 mV (S) / Pa @ 1k | | S/N Ratio | 73 dB | | Equivalent Noise Level | 21 dB (A-weighted) | | Maximum SPL | ≥147 dB | | Dynamic Range | 126 dB | | Power Requirements | 18 to 52 V | | Connector | 3-pin XLRm | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector | | Material | Machined brass | | Length | 2.6" (67 mm) | | Weight | 1 oz (28 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 10.8 x 2.4 x 2.3" |
