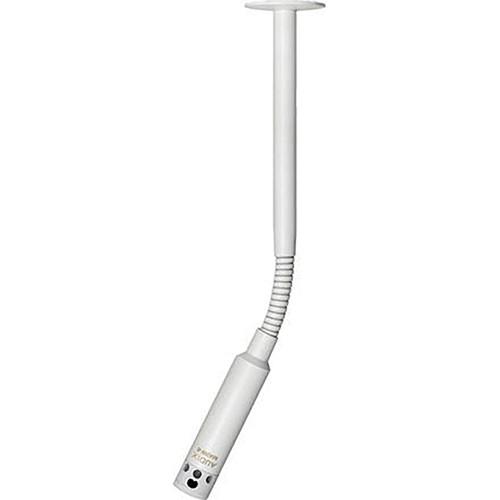

User Manual for Audix M40W6 Miniature High-Output Cardioid Ceiling Microphone with 6" Gooseneck Click to enlarge the picture
Contents of the user manual for the Audix M40W6 Miniature High-Output Cardioid Ceiling
- Product category: Hanging Microphones Audix
- Brand: Audix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audix Hanging Microphones
|
User manual for the Audix M40W6 Miniature High-Output Cardioid Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audix product will considerably shorten its lifespan!
|
Product description The white M40W6 Miniature High-Output Cardioid Ceiling Microphone with 6" Gooseneck from Audix is designed to accurately capture speech in conference, instruction, and sound reinforcement applications such as lectures, meetings, medical procedures, and more. The microphone is equipped with a flexible gooseneck for easy and accurate positioning and is built with an integrated cable that terminates with a phoenix connector. Its wide frequency response, low noise, and high sensitivity characteristics are complimented with RFI shielding that offers immunity from noise caused by electronic devices. - High output for distance miking
- Optimized for voice recognition
- Immunity from RF interference
- Operates on 18 to 52V phantom power
- Point and shoot directivity
- Miniaturized integrated preamp circuitry
- No external power adapter needed
- 12mm gold vapor diaphragm
- Extremely low noise, high sensitivity
- Optional junction box available
Applications - Hospital and medical procedures
UPC: 687471292204 In the Box Audix M40W6 Miniature High-Output Cardioid Ceiling Microphone with 6" Gooseneck (White) CONN-170F, 1' Integrated Cable with Phoenix Connector CONN-170M Mating Terminal Connector for Solderless Connection Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audix M40W6 Miniature High-Output Cardioid Ceiling Microphone with 6" Gooseneck in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudix M40 Specs | Transducer | Condenser | | Frequency Response | 60 Hz to 10 kHz | | Polar Pattern | Cardioid | | Output Impedance | 150 Ohms | | Sensitivity | 37 mV / Pa @ 1 k | | Signal-to-Noise Ratio | 72 dB | | Equivalent Noise Level | 22 dB (A-weighted) | | Dynamic Range (Typical) | 108 dB | | Maximum Sound Level | ≥130 dB @ .5% THD | | Power Requirements | 18 to 52 V phantom | | Connector | 3-pin XLR male | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 | | Material of Construction | Copper and steel | | Gooseneck Length | 6.0" / 15.2 cm | | Length | Capsule: 2.1" / 54 mm | | Weight | 0.7 oz / 20 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 10.8 x 2.2 x 2.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
